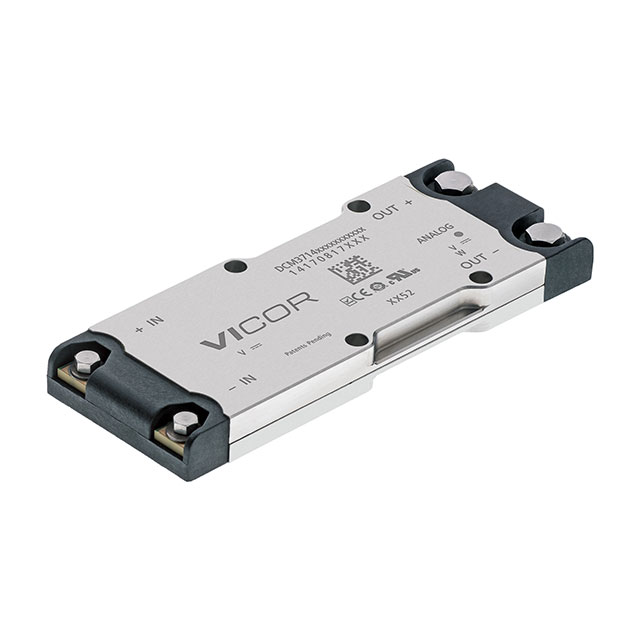

DCM3714 Series

Catalog

DC DC CONVERTER 12V 400W

Part	Voltage - Isolation	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Input (Min) [Min]	Voltage - Input (Max) [Max]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Current - Output (Max) [Max]	Package / Case	Applications	Voltage - Output 1	Efficiency	Features	Type	Mounting Type	Power (Watts)	Number of Outputs	Approval Agency	Standard Number	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]
Vicor Corporation DCM3714BD2J13D0T05	2.121 kV	125 °C	-40 C	180 V	420 V	97.3 mm	35.5 mm	1.4 in	0.37 in	9.3 mm	3.83 in	33.33 A	9-DIP Module	ITE (Commercial)	12 V	93.2 %	OCP OTP OVP Remote On/Off SCP UVLO	Isolated Module	Through Hole	400 W	1
Vicor Corporation DCM3714BD2K06B5M09
Vicor Corporation DCM3714BD2K31E0C09	2.121 kV	125 °C	-20 ░C	160 V	420 V	97.3 mm	35.5 mm	1.4 in	0.37 in	9.3 mm	3.83 in	17.86 A	9-DIP Module	ITE (Commercial)	28 V	93.6 %	OCP OTP OVP Remote On/Off SCP UVLO	Isolated Module	Through Hole	500 W	1
Vicor Corporation DCM3714VD2K26E0M01	2.121 kV	100 °C	-55 C	160 V	420 V	95.3 mm	35.6 mm	1.4 in	0.37 in	9.4 mm	3.75 "	20.83 A		ITE (Commercial)	24 V	91.9 %		Enclosed	Chassis Mount	500 W	1	CE cTUVus cURus	60950-1
Vicor Corporation DCM3714BD2H53E0C09	2.121 kV	125 °C	-20 ░C	200 V	420 V	3.74 "	1.4 "			0.37 in		10.42 A	9-DIP Module	ITE (Commercial)	48 V		OCP OTP OVP Remote On/Off SCP UVLO	Isolated Module	Through Hole	500 W	1			95.1 mm	35.5 mm	9.3 mm
Vicor Corporation DCM3714VD2J13D0C01		100 °C	-20 ░C	200 V	400 VDC	95.1 mm	35.5 mm	1.4 in	0.37 in	9.3 mm	3.75 "	33.3 A		ITE (Commercial)	12 V	93.2 %		Enclosed	Chassis Mount	400 W	1	CE
Vicor Corporation DCM3714BD2H53E0T05	2.121 kV	125 °C	-40 C	200 V	420 V	3.74 "	1.4 "			0.37 in		10.42 A	9-DIP Module	ITE (Commercial)	48 V		OCP OTP OVP Remote On/Off SCP UVLO	Isolated Module	Through Hole	500 W	1			95.1 mm	35.5 mm	9.3 mm
Vicor Corporation DCM3714VD2K13E0C01		100 °C	-20 ░C	160 V	420 V	3.74 "	1.4 "			0.37 in		41.67 A		ITE (Commercial)	12 V	92 %		Enclosed	Chassis Mount	500 W	1	CE cTUVus		95.1 mm	35.5 mm	9.3 mm
Vicor Corporation DCM3714BD2K13E0T09	2.121 kV	125 °C	-40 C	160 V	420 V	97.3 mm	35.5 mm	1.4 in	0.37 in	9.3 mm	3.83 in	41.67 A	9-DIP Module	ITE (Commercial)	12 V	92 %	OCP OTP OVP Remote On/Off SCP UVLO	Isolated Module	Through Hole	500 W	1
Vicor Corporation DCM3714BD2K13E0C09	2.121 kV	125 °C	-20 ░C	160 V	420 V	97.3 mm	35.5 mm	1.4 in	0.37 in	9.3 mm	3.83 in	41.67 A	9-DIP Module	ITE (Commercial)	12 V	92 %	OCP OTP OVP Remote On/Off SCP UVLO	Isolated Module	Through Hole	500 W	1
