MKDSN Series

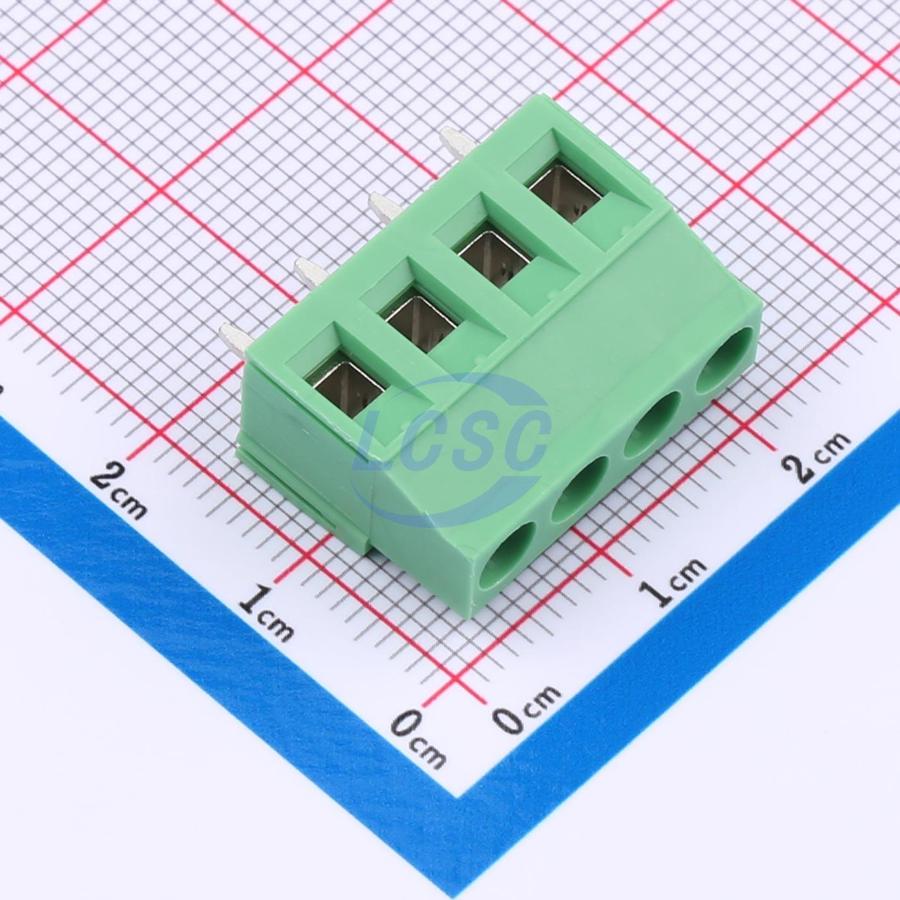

Fixed Terminal Blocks 4P 5.08mm 90DEG

Manufacturer: Phoenix Contact

Catalog

Fixed Terminal Blocks 4P 5.08mm 90DEG

Catalog

Fixed Terminal Blocks 4P 5.08mm 90DEG

Part	Voltage	Mounting Type	Current	Wire Gauge [Max]	Wire Gauge [Min]	Color	Number of Levels	Pitch	Pitch	Positions Per Level	Mating Orientation	Wire Termination	Screw Thread	Torque - Screw [Max]	Torque - Screw [Min]	Torque - Screw [Min]	Torque - Screw [Max]	Housing Material	Features
Phoenix Contact 1860196	300 VDC	Through Hole	10 A	30 AWG	14 AWG	Black	1	5.08 mm	0.2 in	2	Horizontal with Board	Screw - Rising Cage Clamp
Phoenix Contact 1729445	300 VDC	Through Hole	10 A	30 AWG	14 AWG	Black	1	5 mm	0.197 in	4	Horizontal with Board	Screw - Rising Cage Clamp	M3	0.6 Nm	4.4 Lb-In	0.5 Nm	5.3 Lb-In	Polyamide (PA) Nylon	Interlocking (Side)
Phoenix Contact 1701372	300 VDC	Through Hole	20 A	30 AWG	12 AWG	Black	1	5 mm	0.197 in	8	Horizontal with Board	Screw - Rising Cage Clamp	M3	0.6 Nm	4.4 Lb-In	0.5 Nm	5.3 Lb-In
Phoenix Contact 1933341	300 VDC	Through Hole	10 A	30 AWG	12 AWG	Green	1	5 mm	0.197 in	4	Horizontal with Board	Screw - Rising Cage Clamp							Interlocking (Side) Positions Stamped

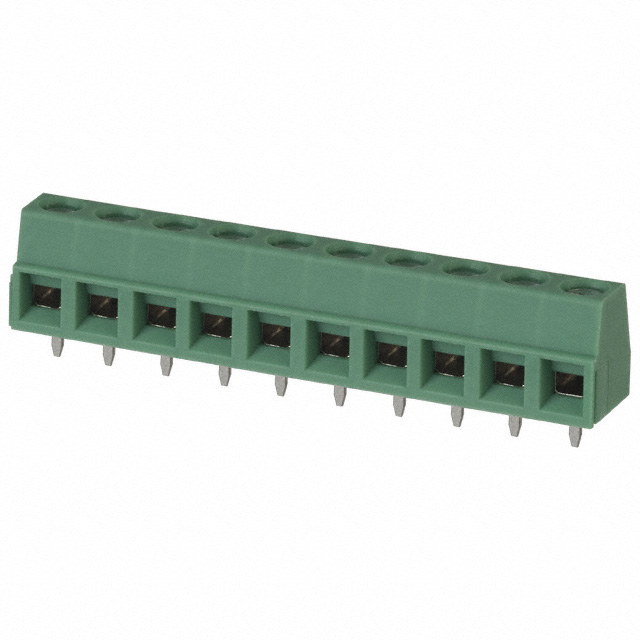

Phoenix Contact 1729092	300 VDC	Through Hole	10 A	30 AWG	14 AWG	Green	1	5 mm	0.197 in	10	Horizontal with Board	Screw - Rising Cage Clamp	M3	0.6 Nm	4.4 Lb-In	0.5 Nm	5.3 Lb-In	Polyamide (PA) Nylon	Interlocking (Side)
Phoenix Contact 1888687	300 VDC	Through Hole	10 A	30 AWG	12 AWG	Green	1	5.08 mm	0.2 in	2	Horizontal with Board	Screw - Rising Cage Clamp	M3	0.6 Nm	4.4 Lb-In	0.5 Nm	5.3 Lb-In	Polyamide (PA) Nylon	Interlocking (Side)
Phoenix Contact 1702199	300 VDC	Through Hole	20 A	30 AWG	12 AWG	Black	1	5 mm	0.197 in	6	Horizontal with Board	Screw - Rising Cage Clamp	M3	0.6 Nm	4.4 Lb-In	0.5 Nm	5.3 Lb-In
Phoenix Contact 1888700	300 VDC	Through Hole	20 A	30 AWG	12 AWG	Green	1	5.08 mm	0.2 in	4	Horizontal with Board	Screw - Rising Cage Clamp	M3	0.6 Nm	4.4 Lb-In	0.5 Nm	5.3 Lb-In	Polyamide (PA) Nylon	Interlocking (Side)
Phoenix Contact 1701373	300 VDC	Through Hole	20 A	30 AWG	12 AWG	Black	1	5 mm	0.197 in	10	Horizontal with Board	Screw - Rising Cage Clamp	M3	0.6 Nm	4.4 Lb-In	0.5 Nm	5.3 Lb-In

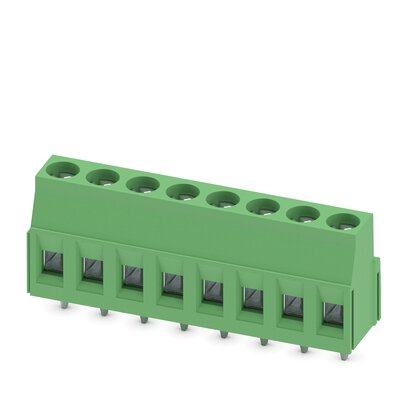

Phoenix Contact 1905719	300 VDC	Through Hole	20 A	30 AWG	12 AWG	Green	1	5 mm	0.197 in	8	Horizontal with Board	Screw - Rising Cage Clamp	M3	0.6 Nm	4.4 Lb-In	0.5 Nm	5.3 Lb-In	Polyamide (PA) Nylon	Interlocking (Side)
