10GXS13 Series

Catalog

CAT6A 4PR U/UTP CMP REEL

Part	Voltage	Usage	Jacket Color	Conductor Material	Conductor Strand	Jacket (Insulation) Material	Length	Length	Wire Gauge	Features	Number of Conductors	Cable Type	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Ratings	Conductor Insulation

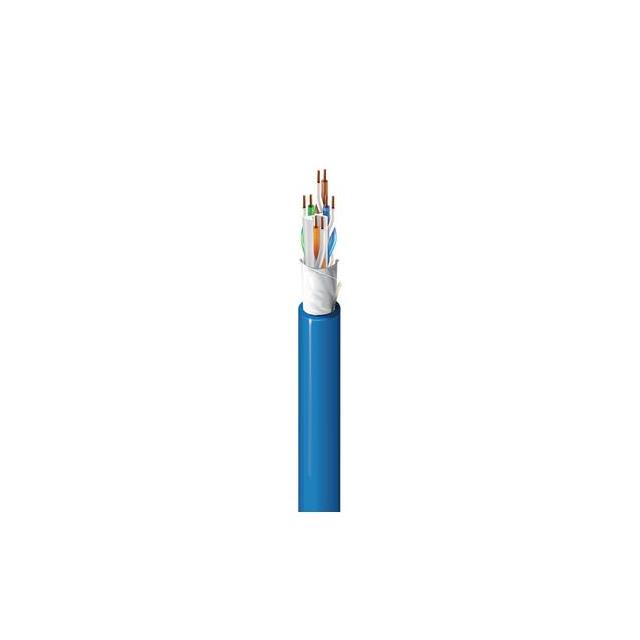

Belden Inc. 10GXS13 0021000	300 VDC	Network	Red	Copper Bare	Solid	Low Smoke Poly-Vinyl Chloride (LSPVC) Plenum	304.8 m	1000 ft	23 AWG	Rip Cord	8	Multi-Pair Cat6a	6.73 mm	0.265 in	UL Style CMP	Fluorinated Ethylene-Propylene (FEP)
Belden Inc. 10GXS13010A1000	300 VDC	Network	Black	Copper Bare	Solid	Low Smoke Poly-Vinyl Chloride (LSPVC) Plenum	304.8 m	1000 ft	23 AWG	Rip Cord	8	Multi-Pair Cat6a	6.73 mm	0.265 in	UL Style CMP	Fluorinated Ethylene-Propylene (FEP)
Belden Inc. 10GXS13009U1000	300 VDC		White	Copper Bare	Solid	Low Smoke Poly-Vinyl Chloride (LSPVC) Plenum	304.8 m	1000 ft	23 AWG		8	Multi-Pair Cat6a	6.73 mm	0.265 in	UL Style CMP	Fluorinated Ethylene-Propylene (FEP)
Belden Inc. 10GXS13 0081000	300 VDC	Network	Gray	Copper Bare	Solid	Low Smoke Poly-Vinyl Chloride (LSPVC) Plenum	304.8 m	1000 ft	23 AWG	Rip Cord	8	Multi-Pair Cat6a	6.73 mm	0.265 in	UL Style CMP	Fluorinated Ethylene-Propylene (FEP)
Belden Inc. 10GXS13002A1000	300 VDC	Network	Red	Copper Bare	Solid	Low Smoke Poly-Vinyl Chloride (LSPVC) Plenum	304.8 m	1000 ft	23 AWG	Rip Cord	8	Multi-Pair Cat6a	6.73 mm	0.265 in	UL Style CMP	Fluorinated Ethylene-Propylene (FEP)
Belden Inc. 10GXS13003A1000	300 VDC	Network	Orange	Copper Bare	Solid	Low Smoke Poly-Vinyl Chloride (LSPVC) Plenum	304.8 m	1000 ft	23 AWG	Rip Cord	8	Multi-Pair Cat6a	6.73 mm	0.265 in	UL Style CMP	Fluorinated Ethylene-Propylene (FEP)
Belden Inc. 10GXS13 0051000	300 VDC	Network	Green	Copper Bare	Solid	Low Smoke Poly-Vinyl Chloride (LSPVC) Plenum	304.8 m	1000 ft	23 AWG	Rip Cord	8	Multi-Pair Cat6a	6.73 mm	0.265 in	UL Style CMP	Fluorinated Ethylene-Propylene (FEP)
Belden Inc. 10GXS13008A1000	300 VDC	Network	Gray	Copper Bare	Solid	Low Smoke Poly-Vinyl Chloride (LSPVC) Plenum	304.8 m	1000 ft	23 AWG	Rip Cord	8	Multi-Pair Cat6a	6.73 mm	0.265 in	UL Style CMP	Fluorinated Ethylene-Propylene (FEP)
