H3051 Series
Manufacturer: Harwin Inc.
Beta
⌘K

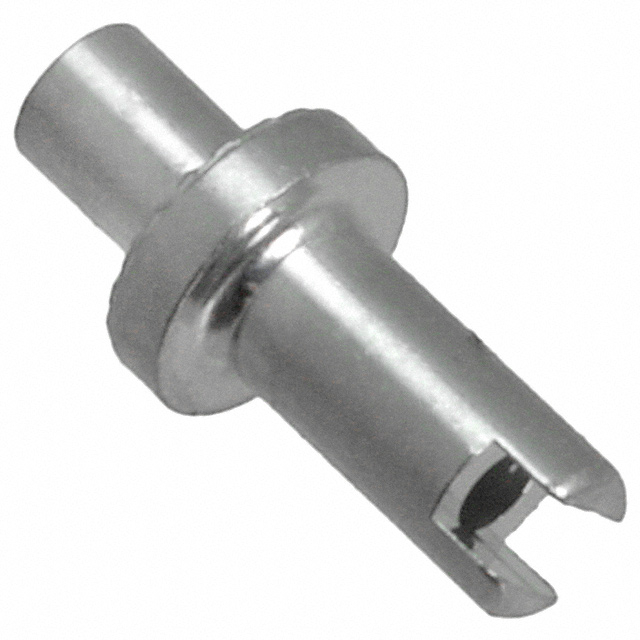

VERTICAL THROUGHBOARD SLOTTED LUG ROHS COMPLIANT: YES
| Part | Terminal Type | Length - Below Flange [Max] [x] | Length - Below Flange [Min] [x] | Length - Below Flange [Min] [x] | Length - Below Flange [Max] [x] | Number of Turrets | Insulation | Mounting Type | Termination | Staking Side OD [Max] | Staking Side OD [Max] | Staking Side OD [Min] | Staking Side OD [Min] | Length - Overall [Max] [x] | Length - Overall [Min] [x] | Length - Overall [Min] [x] | Length - Overall [Max] [x] | Contact Finish | Contact Material | Mounting Hole Diameter [Min] | Mounting Hole Diameter [Min] | Mounting Hole Diameter [Max] | Mounting Hole Diameter [Max] | Length - Above Board [Min] [x] | Length - Above Board [Max] [x] | Length - Above Board [Max] [x] | Length - Above Board [Min] [x] | Board Thickness | Board Thickness | Flange Diameter [Min] [diameter] | Flange Diameter [Max] [diameter] | Flange Diameter [Min] [diameter] | Flange Diameter [Max] [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Harwin Inc. | Fork Hollow Single End | 2.51 mm | 2.39 mm | 0.094 " | 0.099 " | Single | Non-Insulated | Through Hole | Swage | 2.12 mm | 0.083 in | 2.03 mm | 0.08 in | 0.354 in | 8.79 mm | 0.346 in | 8.99 mm | Tin | Brass Alloy | 2.13 mm | 0.084 " | 0.087 " | 2.21 mm | 0.247 " | 0.26 " | 6.6 mm | 6.27 mm | 0.063 in | 1.6 mm | 0.153 in | 0.159 in | 3.88 mm | 4.04 mm |
