857-039 Series

Manufacturer: EDAC Inc.

Catalog

Catalog

CONN EDGE DUAL FMALE 78POS 0.156

...

Part	Contact Finish Thickness	Contact Finish Thickness	Material - Insulation	Number of Positions	Contact Type	Color	Termination	Operating Temperature [Max]	Operating Temperature [Min]	Number of Rows [custom]	Gender	Contact Material	Mounting Type	Card Thickness [Max]	Card Thickness [Min]	Termination Rows	Contact Finish	Pitch	Pitch	Read Out	Card Type	Number of Positions/Bay/Row	Number of Rows	Flange Feature	Flange Feature [diameter]	Flange Feature [diameter]

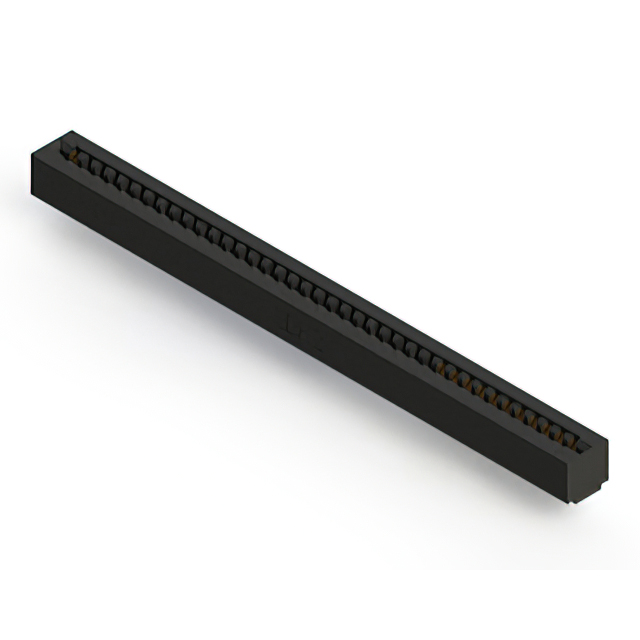

EDAC Inc. 857-039-553-101	0.25 Ám	10 Áin	Polyphenylene Sulfide (PPS)	78	Semi Bellows	Black	Solder	125 °C	-40 C	2	Female	Copper Alloy	Right Angle Through Hole	0.07 in 1.78 mm	0.054 in 1.37 mm	1	Gold	3.96 mm	0.156 in	Dual	Non Specified - Dual Edge	39
EDAC Inc. 857-039-547-101	0.25 Ám	10 Áin	Polyphenylene Sulfide (PPS)	39	Semi Bellows	Black	Wire Wrap	125 °C	-40 C		Female	Copper Alloy	Through Hole	0.07 in 1.78 mm	0.054 in 1.37 mm	1	Gold	3.96 mm	0.156 in	Single	Non Specified - Single Edge	39	1
EDAC Inc. 857-039-441-102			Polyphenylene Sulfide (PPS)	78	Semi Bellows	Black	Wire Wrap	125 °C	-40 C	2	Female	Copper Alloy	Through Hole	0.07 in 1.78 mm	0.054 in 1.37 mm	1	Tin	3.96 mm	0.156 in	Dual	Non Specified - Dual Edge	39		Flush Mount Top Opening Unthreaded	3.25 mm	0.128 "

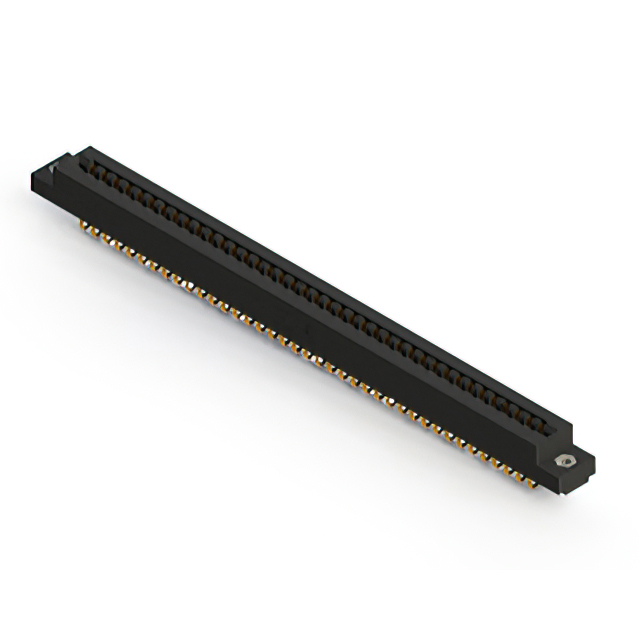

EDAC Inc. 857-039-559-108	0.25 Ám	10 Áin	Polyphenylene Sulfide (PPS)	39	Semi Bellows	Black	Solder	125 °C	-40 C		Female	Copper Alloy	Right Angle Through Hole	0.07 in 1.78 mm	0.054 in 1.37 mm	1	Gold	3.96 mm	0.156 in	Single	Non Specified - Single Edge	39	1	4-40 Flush Mount Threaded Insert Top Opening
EDAC Inc. 857-039-425-112			Polyphenylene Sulfide (PPS)	39	Semi Bellows	Black	Solder	125 °C	-40 C		Female	Copper Alloy	Through Hole	0.07 in 1.78 mm	0.054 in 1.37 mm	1	Tin	3.96 mm	0.156 in	Single	Non Specified - Single Edge	39	1	Side Mount Opening Unthreaded	3.25 mm	0.128 "

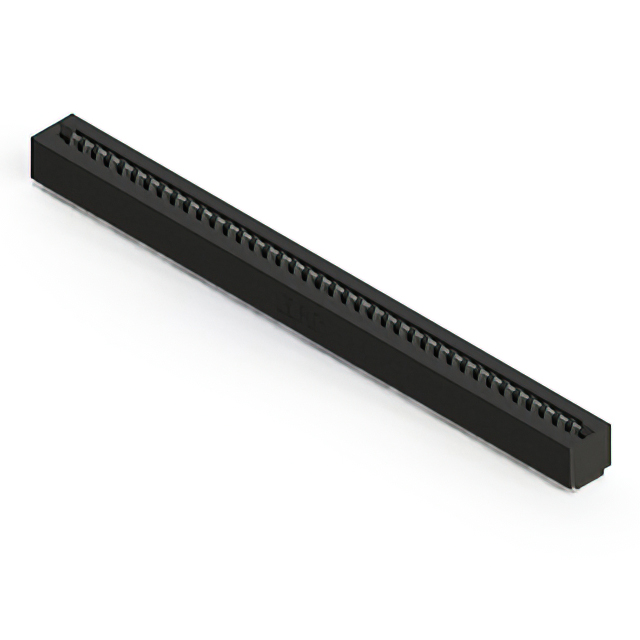

EDAC Inc. 857-039-427-101			Polyphenylene Sulfide (PPS)	39	Semi Bellows	Black	Solder	125 °C	-40 C		Female	Copper Alloy	Through Hole	0.07 in 1.78 mm	0.054 in 1.37 mm	1	Tin	3.96 mm	0.156 in	Single	Non Specified - Single Edge	39	1

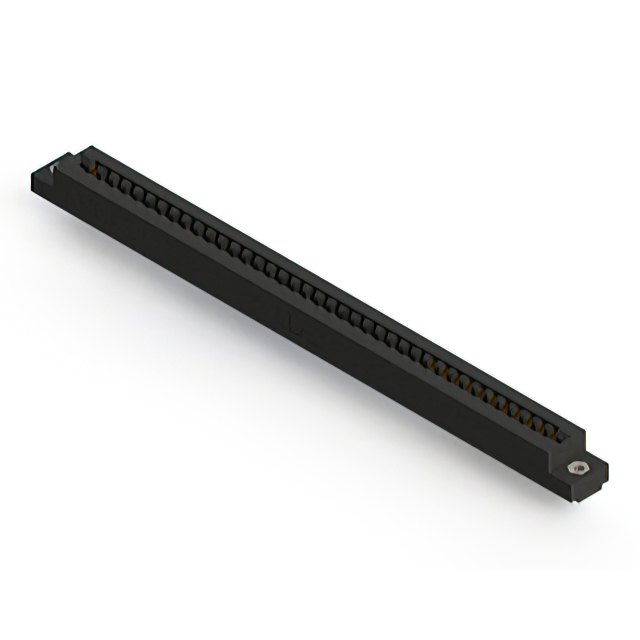

EDAC Inc. 857-039-553-107	0.25 Ám	10 Áin	Polyphenylene Sulfide (PPS)	78	Semi Bellows	Black	Solder	125 °C	-40 C	2	Female	Copper Alloy	Right Angle Through Hole	0.07 in 1.78 mm	0.054 in 1.37 mm	1	Gold	3.96 mm	0.156 in	Dual	Non Specified - Dual Edge	39		Flush Mount M3 Threaded Insert Top Opening

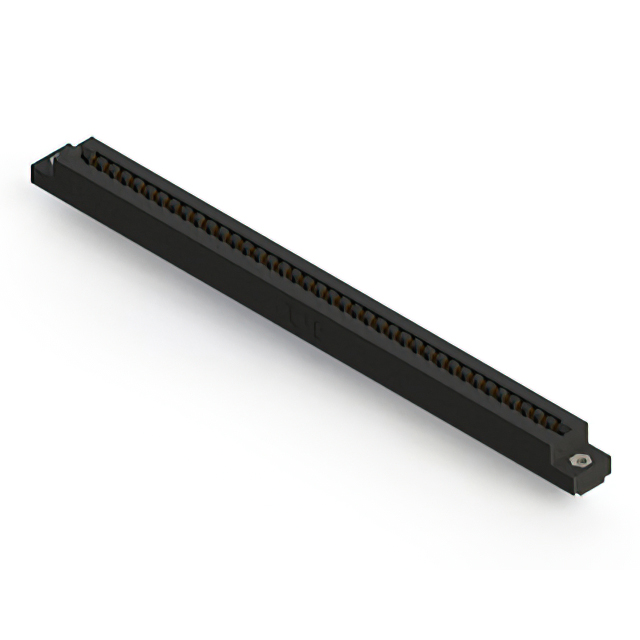

EDAC Inc. 857-039-531-107	0.25 Ám	10 Áin	Polyphenylene Sulfide (PPS)	39	Semi Bellows	Black	Solder	125 °C	-40 C		Female	Copper Alloy	Through Hole	0.07 in 1.78 mm	0.054 in 1.37 mm	1	Gold	3.96 mm	0.156 in	Single	Non Specified - Single Edge	39	1	Flush Mount M3 Threaded Insert Top Opening
EDAC Inc. 857-039-557-101	0.25 Ám	10 Áin	Polyphenylene Sulfide (PPS)	78	Semi Bellows	Black	Solder	125 °C	-40 C	2	Female	Copper Alloy	Right Angle Through Hole	0.07 in 1.78 mm	0.054 in 1.37 mm	1	Gold	3.96 mm	0.156 in	Dual	Non Specified - Dual Edge	39
EDAC Inc. 857-039-445-103			Polyphenylene Sulfide (PPS)	39	Semi Bellows	Black	Wire Wrap	125 °C	-40 C		Female	Copper Alloy	Through Hole	0.07 in 1.78 mm	0.054 in 1.37 mm	1	Tin	3.96 mm	0.156 in	Single	Non Specified - Single Edge	39	1	Floating Bobbin Flush Mount	2.95 mm	0.116 "
