R14168 Series
Manufacturer: Radiall USA, Inc.
Beta
⌘K

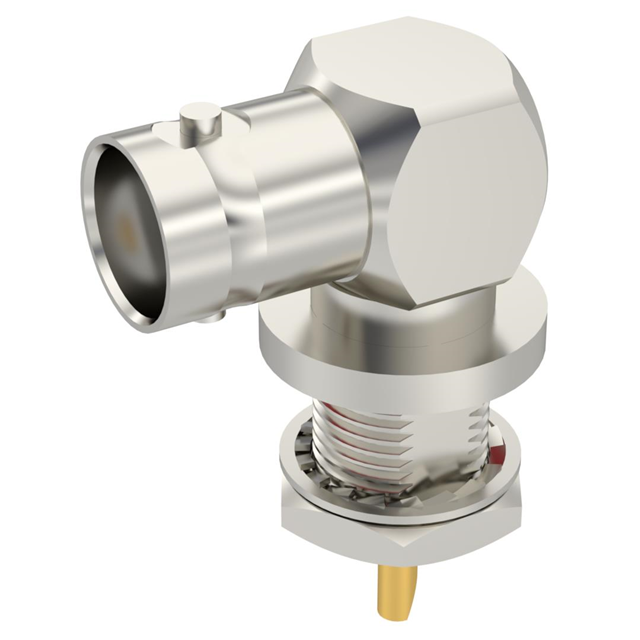

BNC / RIGHT ANGLE BULKHEAD JACK
| Part | Body Finish | Mating Cycles | Dielectric Material | Body Material | Center Contact Material | Operating Temperature [Min] | Operating Temperature [Max] | Voltage Rating | Center Contact Plating | Number of Ports | Connector Type | Shield Termination | Mounting Type | Impedance | Connector Style | Fastening Type | Contact Termination | Housing Color | Mounting Feature | Frequency - Max [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Radiall USA, Inc. | Nickel | 500 | Polytetrafluoroethylene (PTFE) | Brass | Beryllium Copper Brass | -65 ░C | 165 °C | 500 V | Gold | 1 | Female Socket Jack | Solder | Panel Mount Right Angle | 50 Ohms | BNC | Bayonet Lock | Solder Cup | Silver | Bulkhead - Rear Side Nut | 4 GHz |
