60K131 Series
Manufacturer: Rosenberger
Beta
⌘K

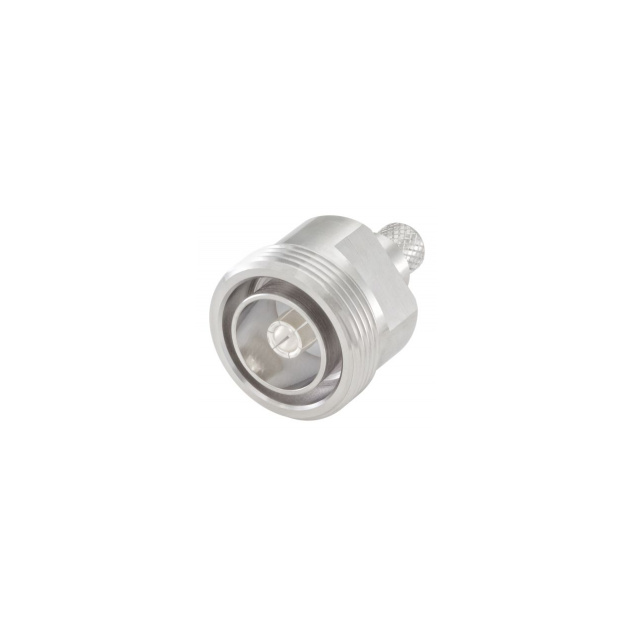

7/16 STRAIGHT JACK
| Part | Body Finish | Voltage Rating | Operating Temperature [Max] | Operating Temperature [Min] | Mating Cycles | Body Material | Dielectric Material | Center Contact Plating | Connector Type | Connector Style | Cable Group | Shield Termination | Mounting Type | Fastening Type | Frequency - Max [Max] | Contact Termination | Center Contact Material | Housing Color | Number of Ports | Impedance |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Rosenberger | White Bronze | 500 V | 85 °C | -45 °C | 500 | Brass | Polytetrafluoroethylene (PTFE) | Silver | Female Socket Jack | 7/16 DIN | RG-213 | Crimp | Panel Mount | Threaded | 7.5 GHz | Solder | Bronze | Silver | 1 | 50 Ohms |
