IL-S-12 Series

Catalog

CONN HEADER VERT 12POS 2MM

Part	Mated Stacking Heights	Insulation Height	Insulation Height	Number of Rows	Style	Contact Length - Mating	Contact Length - Mating	Contact Shape	Contact Material	Mounting Type	Pitch - Mating	Pitch - Mating	Fastening Type	Contact Type	Current Rating (Amps)	Connector Type	Contact Length - Post	Contact Length - Post	Operating Temperature [Max]	Operating Temperature [Min]	Number of Positions Loaded	Insulation Color	Voltage Rating	Material Flammability Rating	Insulation Material	Termination	Contact Finish - Post	Number of Positions	Shrouding	Note	Pitch [x]	Pitch [x]	Contact Termination
JAE Electronics IL-S-12P-S2T2-EF	7.5 mm	0.217 in	5.51 mm	1	Board to Cable/Wire	0.126 in	3.2 mm	Square	Brass	Through Hole	0.079 "	2 mm	Detent Lock	Male Pin	3 A	Header	0.138 in	3.5 mm	85 °C	-40 C	All	Brown	300 VAC 400 V	UL94 V-0	Nylon 6/6 Polyamide (PA66)	Kinked Pin Solder	Tin	12	Shrouded - 4 Wall
JAE Electronics IL-S-12P-S2L2-EF		0.177 in	4.5 mm	1	Board to Cable/Wire	0.126 in	3.2 mm	Square	Brass	Right Angle Through Hole	0.079 "	2 mm	Push-Pull	Male Pin	3 A	Header	0.138 in	3.5 mm	85 °C	-40 C	All	Brown	300 VAC 400 V	UL94 V-0	Nylon 6/6 Polyamide (PA66)	Kinked Pin Solder	Tin	12	Shrouded - 4 Wall

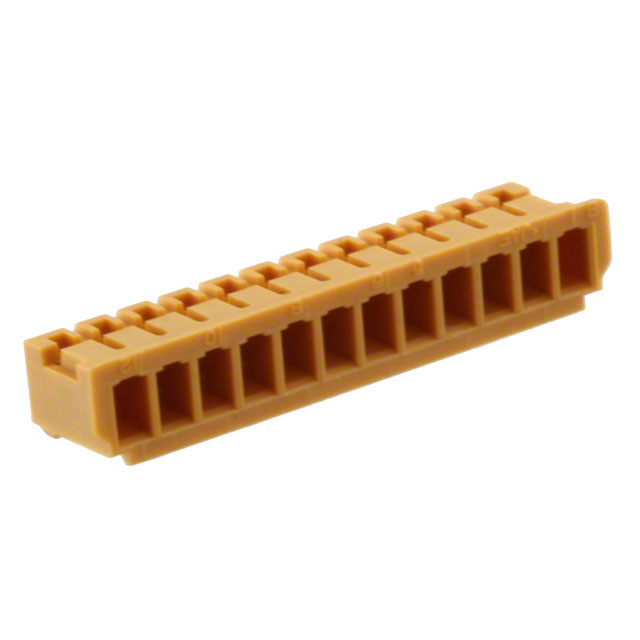

JAE Electronics IL-S-12S-S2C2				1						Free Hanging (In-Line)				Female Socket		Receptacle			85 °C	-40 C					Nylon 6/6 Polyamide (PA66)			12		Contacts Not Included	0.079 in	2 mm	Crimp
