SN74HCS245 Series

Schmitt-trigger input octal bus transceivers with tri-state outputs

Catalog

Schmitt-trigger input octal bus transceivers with tri-state outputs

Part	Number of Elements	Voltage - Supply [Min]	Voltage - Supply [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Output Type	Input Type	Current - Output High, Low [custom]	Current - Output High, Low [custom]	Package / Case	Number of Bits per Element	Supplier Device Package

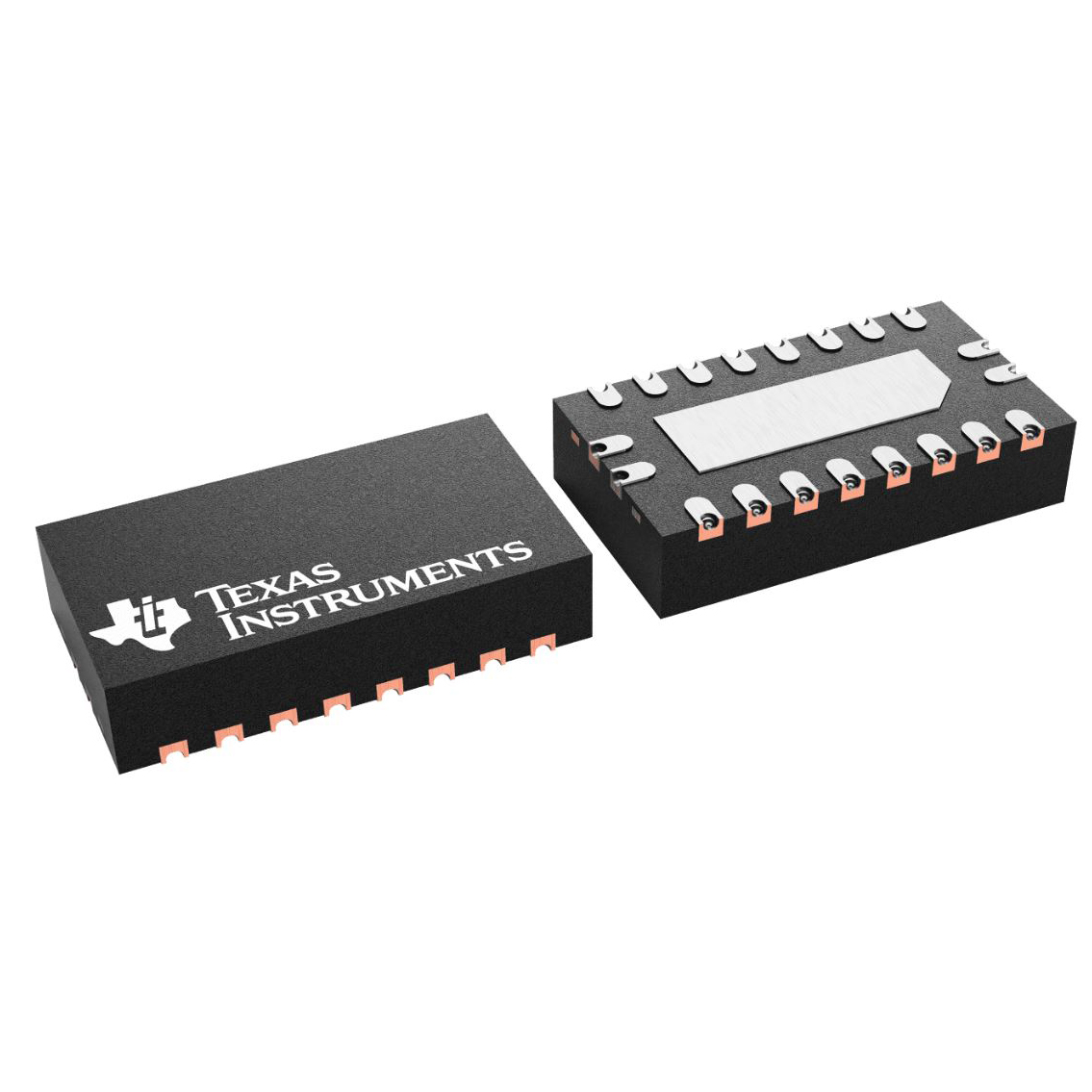

Texas Instruments SN74HCS245RKSR	1	2 V	6 V	-40 °C	125 °C	Surface Mount Wettable Flank	3-State	Schmitt Trigger	7.8 mA	7.8 mA	20-VFQFN Exposed Pad	8	20-VQFN (2.5x4.5)

Catalog

Schmitt-trigger input octal bus transceivers with tri-state outputs

Key Features

• Wide operating voltage range: 2 V to 6 VSchmitt-trigger inputs allow for slow or noisy input signalsLow power consumptionTypical ICCof 100 nATypical input leakage current of ±100 nA±7.8-mA output drive at 6 VExtended ambient temperature range: –40°C to +125°C, TAWide operating voltage range: 2 V to 6 VSchmitt-trigger inputs allow for slow or noisy input signalsLow power consumptionTypical ICCof 100 nATypical input leakage current of ±100 nA±7.8-mA output drive at 6 VExtended ambient temperature range: –40°C to +125°C, TA

Description

The SN74HCS245 is an octal bus transceiver with 3-state outputs and Schmitt-trigger inputs. All eight channels are controlled by the direction (DIR) pin and output enable (OE) pin. The SN74HCS245 is an octal bus transceiver with 3-state outputs and Schmitt-trigger inputs. All eight channels are controlled by the direction (DIR) pin and output enable (OE) pin.
