12TW1 Series

Manufacturer: Honeywell Sensing and Productivity Solutions

Catalog

SWITCH TOGGLE DPDT 5A 125V

Part	Illumination	Operating Temperature [Min]	Operating Temperature [Max]	Circuit	Bushing Thread	Actuator Type	Current Rating (Amps)	Mounting Type	Actuator Length [x]	Switch Function	Panel Cutout Dimensions [diameter]	Ingress Protection	Voltage Rating - AC	Termination Style	Features
Honeywell Sensing and Productivity Solutions 12TW1-3G	Non-Illuminated	-65 ░C	71 °C	DPDT	15/32-32	Locking Lever	5 A	Panel Mount	29.46 mm	On-On	12.4 mm	Environment Sealed	125 V	Solder Turret

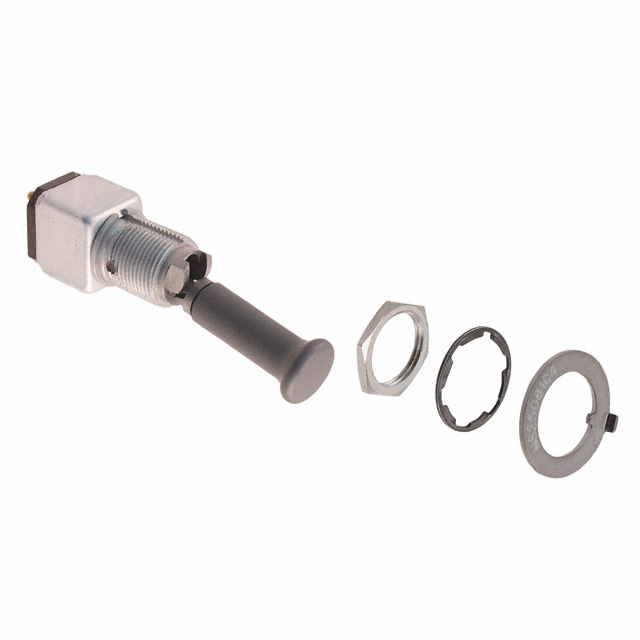

Honeywell Sensing and Productivity Solutions 12TW1-3F	Non-Illuminated	-65 ░C	71 °C	DPDT	15/32-32	Locking Lever	5 A	Panel Mount	29.46 mm	On-On	12.4 mm	Environment Sealed	125 V	Solder Turret
Honeywell Sensing and Productivity Solutions 12TW1-2	Non-Illuminated	-65 ░C	71 °C	DPST	15/32-32	Standard Round	5 A	Panel Mount	17.27 mm	On-Off	12.4 mm	Environment Sealed	125 V	Solder Turret

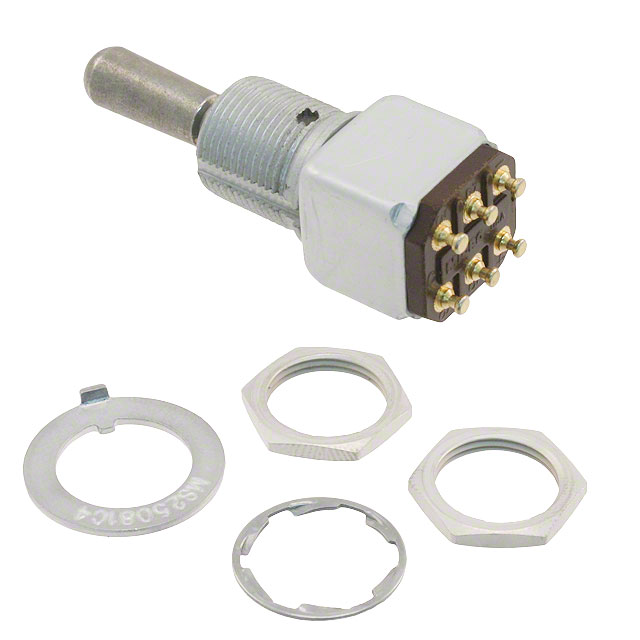

Honeywell Sensing and Productivity Solutions 12TW1-56	Non-Illuminated	-65 ░C	71 °C	DPDT	15/32-32	Standard Round	5 A	Panel Mount	17.27 mm	On-On-Mom	12.4 mm	Environment Sealed	125 V	Solder Turret
Honeywell Sensing and Productivity Solutions 12TW13-3D	Non-Illuminated	-65 ░C	71 °C	DPDT	15/32-32	Locking Lever	5 A	Panel Mount	20.83 mm	On-On	12.4 mm	Environment Sealed	125 V	Solder Turret
Honeywell Sensing and Productivity Solutions 12TW19-70-A002	Non-Illuminated	-65 ░C	71 °C	DPDT	15/32-32	Flatted	5 A	Panel Mount	1 in	Mom-On-Mom	12.4 mm	Environment Sealed	125 V	Solder Turret	Black Actuator

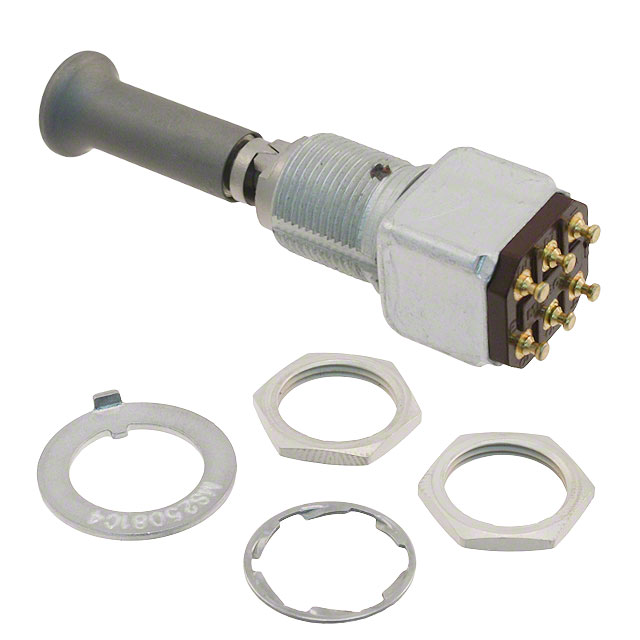

Honeywell Sensing and Productivity Solutions 12TW1-1A	Non-Illuminated	-65 ░C	71 °C	DPDT	15/32-32	Locking Lever	5 A	Panel Mount	29.46 mm	On-Off-On	12.4 mm	Environment Sealed	125 V	Solder Turret
Honeywell Sensing and Productivity Solutions 12TW19-3-A002	Non-Illuminated	-65 ░C	71 °C	DPDT	15/32-32	Flatted	5 A	Panel Mount	1 in	On-On	12.4 mm	Environment Sealed	125 V	Solder Turret	Black Actuator

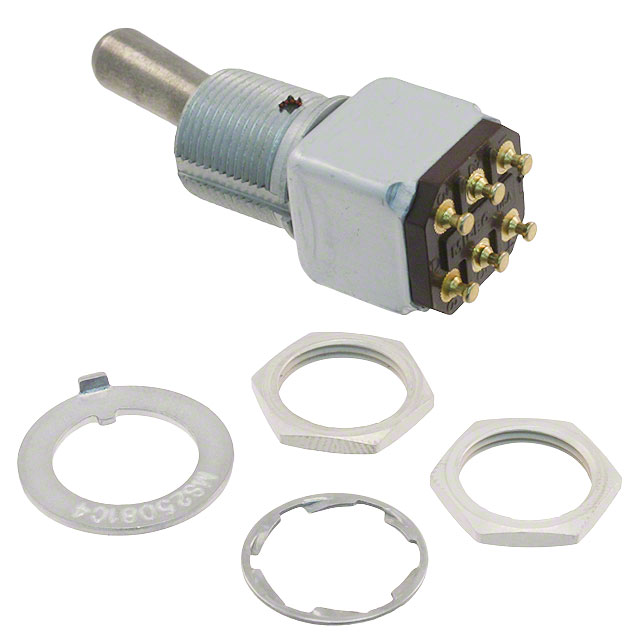

Honeywell Sensing and Productivity Solutions 12TW1-8	Non-Illuminated	-65 ░C	71 °C	DPDT	15/32-32	Standard Round	5 A	Panel Mount	29.46 mm	On-Mom	12.4 mm	Environment Sealed	125 V	Solder Turret

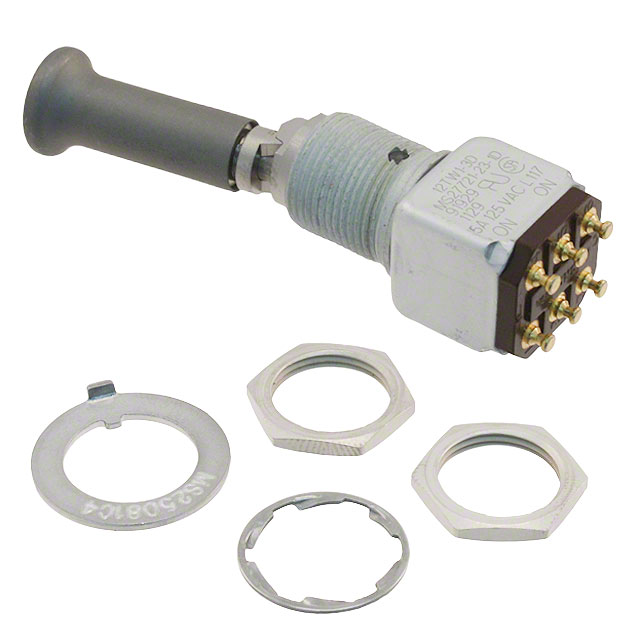

Honeywell Sensing and Productivity Solutions 12TW1-3D	Non-Illuminated	-65 ░C	71 °C	DPDT	15/32-32	Locking Lever	5 A	Panel Mount	29.46 mm	On-On	12.4 mm	Environment Sealed	125 V	Solder Turret
