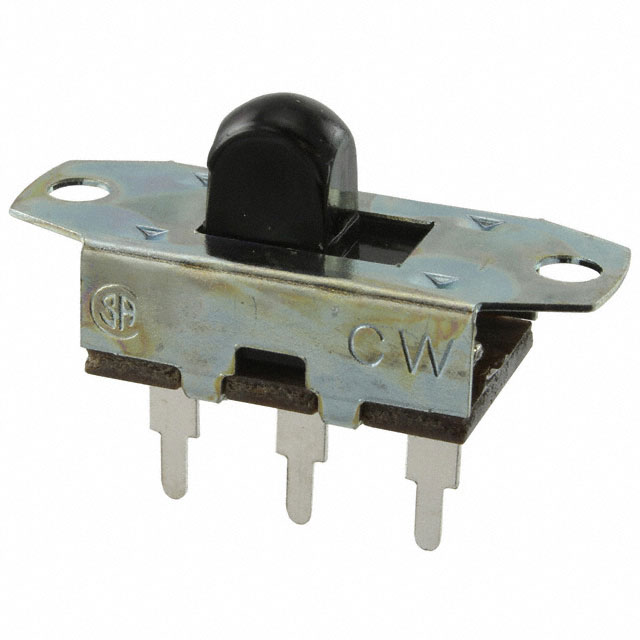

GF-624 Series
Manufacturer: CW Industries
Beta
⌘K
SWITCH SLIDE SPDT 6A 125V
| Part | Switch Travel | Actuator Material | Mechanical Life | Electrical Life | Voltage Rating - AC | Actuator Type | Voltage Rating - DC | Termination Style | Contact Material | Contact Finish | Actuator Length [x] | Operating Temperature [Min] | Operating Temperature [Max] | Contact Timing | Mounting Type | Current Rating (Amps) | Switch Function | Circuit |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 CW Industries | 4.01 mm | Nylon 6/6 Polyamide (PA66) | 10000 Steps | 6000 Cycles | 125 V | Standard | 125 VDC | Solder Lug | Copper | Silver | 8.74 mm | -10 °C | 104 °C | Not Specified | Panel Mount | 6 A 500 mA | On-On | SPDT |
 CW Industries | 4.01 mm | Nylon 6/6 Polyamide (PA66) | 10000 Steps | 6000 Cycles | 125 V | Standard | 125 VDC | PC Pin | Copper | Silver | 7.11 mm | -10 °C | 104 °C | Not Specified | Panel Mount | 6 A 500 mA | On-On | SPDT |
 CW Industries | 4.01 mm | Nylon 6/6 Polyamide (PA66) | 10000 Steps | 6000 Cycles | 125 V | Standard | 125 VDC | PC Pin | Copper | Silver | 10.31 mm | -10 °C | 104 °C | Not Specified | Panel Mount | 6 A 500 mA | On-On | SPDT |
