1299/50C Series
Manufacturer: ALPHA WIRE
Beta
⌘K

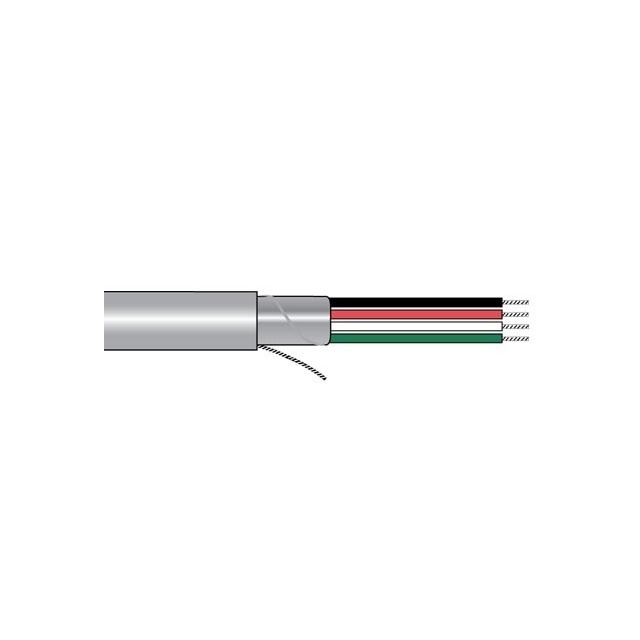

MULTICONDUCTOR CABLE, SHIELDED, 50 CONDUCTOR, 22 AWG, 0.35 MM², 500 FT, 152.4 M
| Part | Shield Coverage | Shield Material | Usage | Conductor Material | Jacket (Insulation) Material | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Conductor Strand [custom] | Conductor Strand [custom] | Number of Conductors | Jacket Color | Length | Length | Shield Type | Conductor Insulation | Wire Gauge | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Cable Type | Voltage | Operating Temperature [Max] | Operating Temperature [Min] | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | 100 % | Aluminum | Communication Control | Copper Tinned | Poly-Vinyl Chloride (PVC) | 0.035 in | 0.889 mm | 30 AWG | 7 | 50 | Slate | 152.4 m | 500 ft | Foil | Poly-Vinyl Chloride (PVC) | 22 AWG | 12.24 mm | 0.482 in | Multi-Conductor | 300 VDC | 80 °C | -20 ░C | Drain Wire |
ALPHA WIRE | 100 % | Aluminum | Communication Control | Copper Tinned | Poly-Vinyl Chloride (PVC) | 0.035 in | 0.889 mm | 30 AWG | 7 | 50 | Slate | 304.8 m | 1000 ft | Foil | Poly-Vinyl Chloride (PVC) | 22 AWG | 12.24 mm | 0.482 in | Multi-Conductor | 300 VDC | 80 °C | -20 ░C | Drain Wire |
