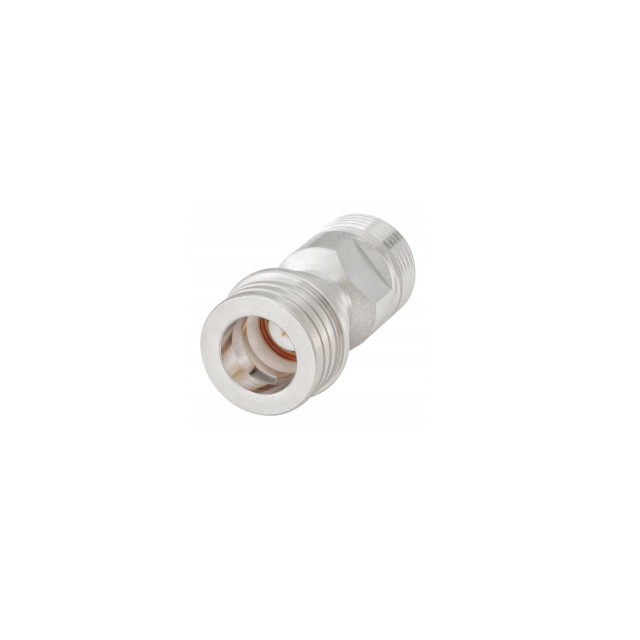

153QS153 Series
Manufacturer: Rosenberger
Beta
⌘K
QN ADAPTER
| Part | Insertion Loss | Operating Temperature [Max] | Operating Temperature [Min] | Dielectric Material | Body Material | Body Finish | Center Contact Material | Mating Cycles | Center Contact Plating | Fastening Type | Fastening Type | Impedance | Adapter Type | Convert To (Adapter End) | Conversion Type | Adapter Series | Style | Convert From (Adapter End) | Mounting Type | Frequency - Max [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Rosenberger | 0.17 dB | 125 °C | -40 C | Polytetrafluoroethylene (PTFE) | Brass | White Bronze | Beryllium Copper | 500 | Gold | Snap-On | Snap-On | 50 Ohms | Plug to Jack | QN Plug Male Pin | Between Series | QN to N | Straight | Female Socket N Jack | Free Hanging (In-Line) | 11 GHz |
