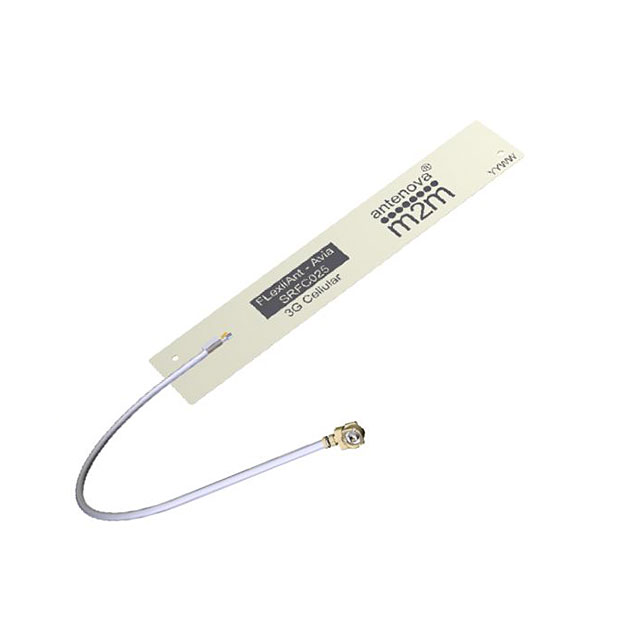

SRFC025 Series

Manufacturer: Antenova

Catalog

RF ANT 892MHZ/1.9GHZ FLAT 100MM

Part	Termination	Termination	Return Loss	Frequency Range [Min]	Frequency Range [Max]	Frequency (Center/Band)	RF Family/Standard	Number of Bands	Applications	Mounting Type	Gain	Height (Max) [z]	Height (Max) [z]	VSWR	Antenna Type
Antenova SRFC025-100	IPEX MHF1	I-PEX MHF1 U.FL (UMCC)	-17 dB	1.71 GHz 824 MHz	2.17 GHz 960 MHz	1.9 GHz 892 MHz	Cellular	2	GSM WCDMA	Adhesive	5.4 dBi	0.15 mm	0.006 in	2.2	Flat Patch
Antenova SRFC025-200	IPEX MHF1	I-PEX MHF1 U.FL (UMCC)	-17 dB	1.71 GHz 824 MHz	2.17 GHz 960 MHz	1.9 GHz 892 MHz	Cellular	2	GSM WCDMA	Adhesive	5.4 dBi	0.15 mm	0.006 in	2.2	Flat Patch
Antenova SRFC025-150	IPEX MHF1	I-PEX MHF1 U.FL (UMCC)	-17 dB	1.71 GHz 824 MHz	2.17 GHz 960 MHz	1.9 GHz 892 MHz	Cellular	2	GSM WCDMA	Adhesive	5.4 dBi	0.15 mm	0.006 in	2.2	Flat Patch
