HDSM-543 Series
Manufacturer: Broadcom Limited
Beta
⌘K
DISPLAY 7SEG 0.56" DBL RED 10SMD
| Part | Number of Characters | Digit/Alpha Size | Digit/Alpha Size | Current - Test | Millicandela Rating | Color | Package / Case | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [x] | Display Type | Voltage - Forward (Vf) (Typ) | Wavelength - Peak | Power Dissipation (Max) [Max] | Common Pin |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

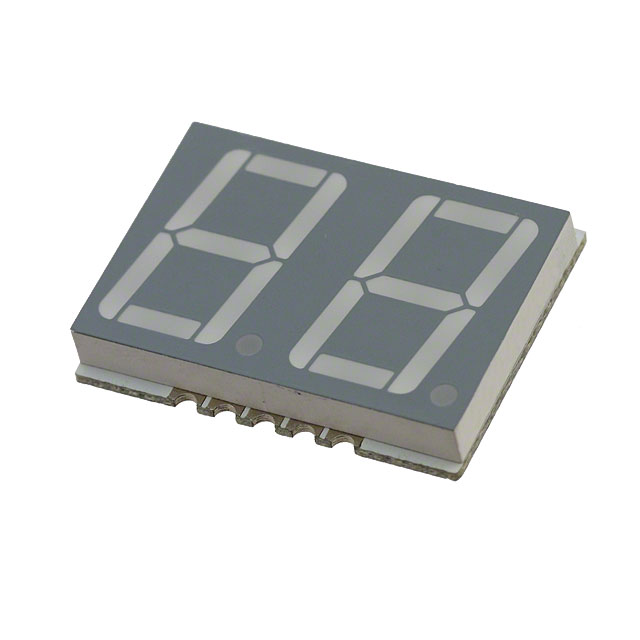

 Broadcom Limited | 2 | 0.56 in | 14.22 mm | 20 mA | 16 mcd | Red | 10-SMD No Lead | 0.669 " | 3.75 mm | 25 mm | 0.984 " | 17 mm | 0.148 in | 7-Segment | 2 V | 632 nm | 65 mW | Common Cathode |

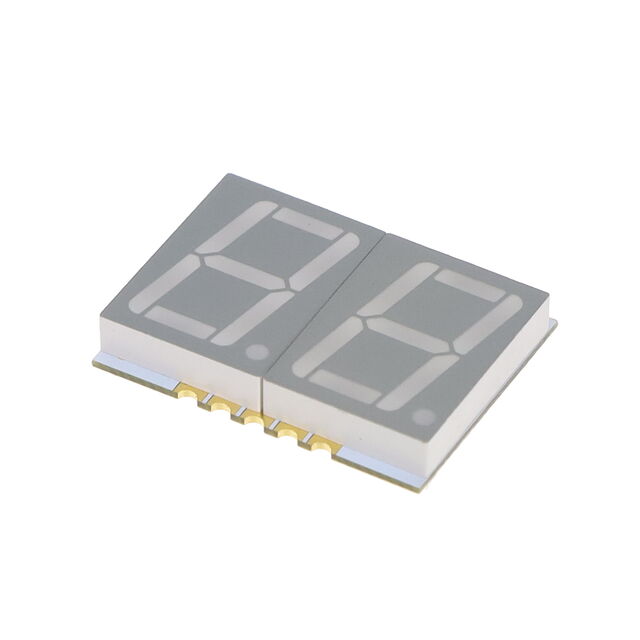

 Broadcom Limited | 2 | 0.56 in | 14.22 mm | 20 mA | 13.5 mcd | Blue | 10-SMD No Lead | 0.669 " | 3.75 mm | 25 mm | 0.984 " | 17 mm | 0.148 in | 7-Segment | 3.3 V | 462 nm | 100 mW | Common Cathode |
