72454 Series

Catalog

CONN HEADER SMD 14POS 2.54MM

Part	Contact Shape	Shrouding	Contact Finish - Post	Contact Finish - Mating	Operating Temperature [Min]	Operating Temperature [Max]	Pitch - Mating	Pitch - Mating	Contact Material	Mounting Type	Termination	Contact Type	Style	Material Flammability Rating	Contact Length - Mating [x]	Contact Length - Mating	Number of Positions	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Insulation Height	Insulation Height	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Number of Positions Loaded	Insulation Color	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Connector Type	Fastening Type	Features	Number of Rows	Number of Positions

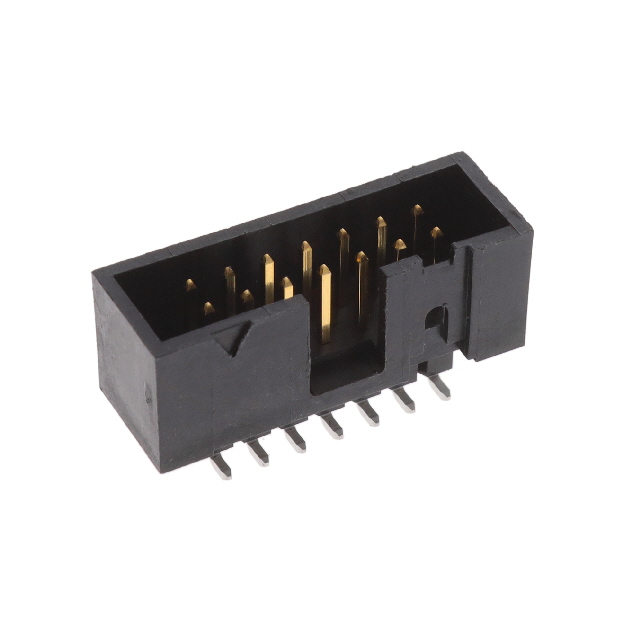

Amphenol ICC (FCI) 72454-014VLF	Square	Shrouded - 4 Wall	Tin	Gold GXT™	-65 ░C	105 ░C	0.1 in	2.54 mm	Phosphor Bronze	Surface Mount	Solder	Male Pin	Board to Cable/Wire	UL94 V-0	0.23 in	5.84 mm	14	2.54 mm	0.1 in	0.365 in	9.27 mm	30 Áin	0.76 Ám	All	Black	2 çm	78.7 çin	Header	Push-Pull	Keying Slot Pick and Place	2

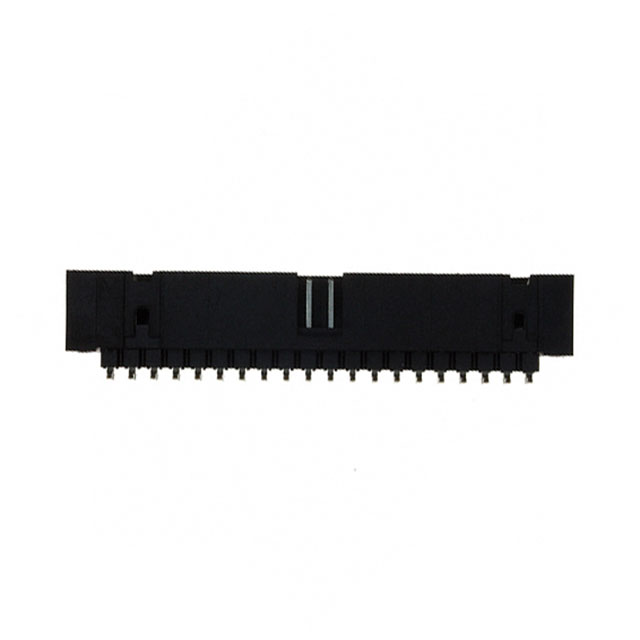

Amphenol ICC (FCI) 72454-040LF	Square	Shrouded - 4 Wall	Tin	Gold GXT™	-65 ░C	105 ░C	0.1 in	2.54 mm	Phosphor Bronze	Surface Mount	Solder	Male Pin	Board to Cable/Wire	UL94 V-0	0.23 in	5.84 mm	40	2.54 mm	0.1 in	0.365 in	9.27 mm	30 Áin	0.76 Ám	All	Black	2 çm	78.7 çin	Header	Push-Pull	Keying Slot Pick and Place	2
Amphenol ICC (FCI) 72454-026BLF	Square	Shrouded - 4 Wall	Tin	Gold GXT™	-65 ░C	105 ░C	0.1 in	2.54 mm	Phosphor Bronze	Surface Mount	Solder	Male Pin	Board to Cable/Wire	UL94 V-0	0.23 in	5.84 mm	26	2.54 mm	0.1 in	0.365 in	9.27 mm	30 Áin	0.76 Ám	All	Black	2 çm	78.7 çin	Header	Push-Pull	Keying Slot Pick and Place	2
Amphenol ICC (FCI) 72454-020	Square	Shrouded - 4 Wall	Tin	Gold GXT™	-65 ░C	105 ░C	0.1 in	2.54 mm	Phosphor Bronze	Surface Mount	Solder	Male Pin	Board to Cable/Wire	UL94 V-0	0.23 in	5.84 mm	20	2.54 mm	0.1 in	0.365 in	9.27 mm	30 Áin	0.76 Ám	All	Black	2 çm	78.7 çin	Header	Push-Pull	Keying Slot Pick and Place	2
Amphenol ICC (FCI) 72454-014	Square	Shrouded - 4 Wall	Tin	Gold GXT™	-65 ░C	105 ░C	0.1 in	2.54 mm	Phosphor Bronze	Surface Mount	Solder	Male Pin	Board to Cable/Wire	UL94 V-0	0.23 in	5.84 mm	14	2.54 mm	0.1 in	0.365 in	9.27 mm	30 Áin	0.76 Ám	All	Black	2 çm	78.7 çin	Header	Push-Pull	Keying Slot Pick and Place	2

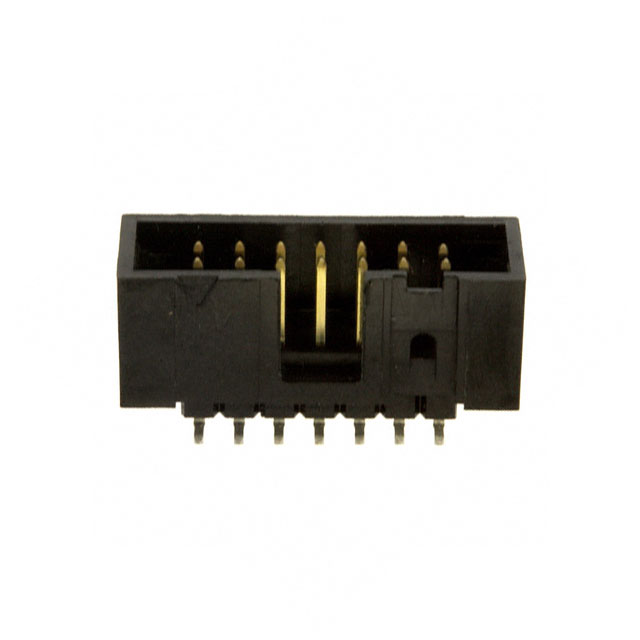

Amphenol ICC (FCI) 72454-014LF	Square	Shrouded - 4 Wall	Tin	Gold GXT™	-65 ░C	105 ░C	0.1 in	2.54 mm	Phosphor Bronze	Surface Mount	Solder	Male Pin	Board to Cable/Wire	UL94 V-0	0.23 in	5.84 mm	14	2.54 mm	0.1 in	0.365 in	9.27 mm	30 Áin	0.76 Ám	All	Black	2 çm	78.7 çin	Header	Push-Pull	Keying Slot Pick and Place	2
Amphenol ICC (FCI) 72454-030VLF	Square	Shrouded - 4 Wall	Tin	Gold GXT™	-65 ░C	105 ░C	0.1 in	2.54 mm	Phosphor Bronze	Surface Mount	Solder	Male Pin	Board to Cable/Wire	UL94 V-0	0.23 in	5.84 mm	30	2.54 mm	0.1 in	0.365 in	9.27 mm	30 Áin	0.76 Ám	All	Black	2 çm	78.7 çin	Header	Push-Pull	Keying Slot Pick and Place	2
Amphenol ICC (FCI) 72454-016	Square	Shrouded - 4 Wall	Tin	Gold GXT™	-65 ░C	105 ░C	0.1 in	2.54 mm	Phosphor Bronze	Surface Mount	Solder	Male Pin	Board to Cable/Wire	UL94 V-0	0.23 in	5.84 mm		2.54 mm	0.1 in	0.365 in	9.27 mm	30 Áin	0.76 Ám	All	Black	2 çm	78.7 çin	Header	Push-Pull	Keying Slot Pick and Place	2	16

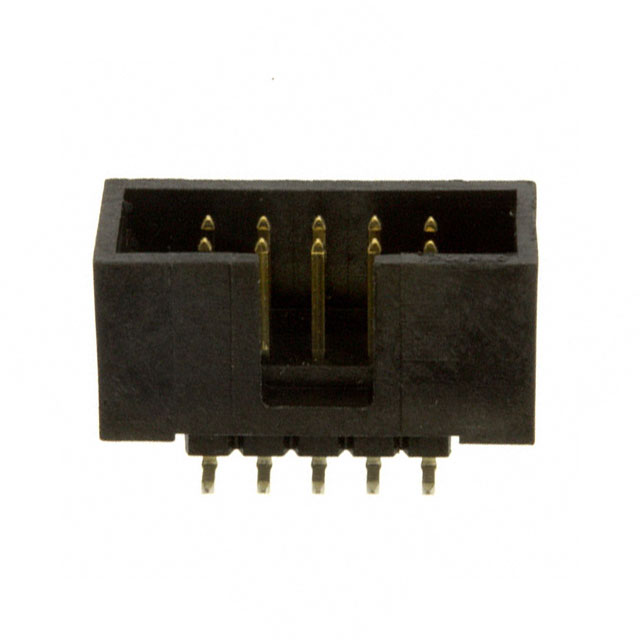

Amphenol ICC (FCI) 72454-010LF	Square	Shrouded - 4 Wall	Tin	Gold GXT™	-65 ░C	105 ░C	0.1 in	2.54 mm	Phosphor Bronze	Surface Mount	Solder	Male Pin	Board to Cable/Wire	UL94 V-0	0.23 in	5.84 mm	10	2.54 mm	0.1 in	0.365 in	9.27 mm	30 Áin	0.76 Ám	All	Black	2 çm	78.7 çin	Header	Push-Pull	Keying Slot Pick and Place	2

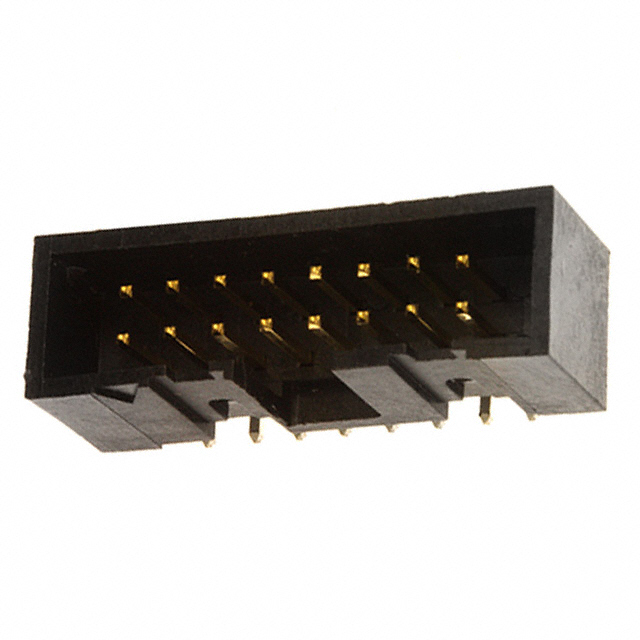

Amphenol ICC (FCI) 72454-016LF	Square	Shrouded - 4 Wall	Tin	Gold GXT™	-65 ░C	105 ░C	0.1 in	2.54 mm	Phosphor Bronze	Surface Mount	Solder	Male Pin	Board to Cable/Wire	UL94 V-0	0.23 in	5.84 mm		2.54 mm	0.1 in	0.365 in	9.27 mm	30 Áin	0.76 Ám	All	Black	2 çm	78.7 çin	Header	Push-Pull	Keying Slot Pick and Place	2	16
