1761602 Series

Catalog

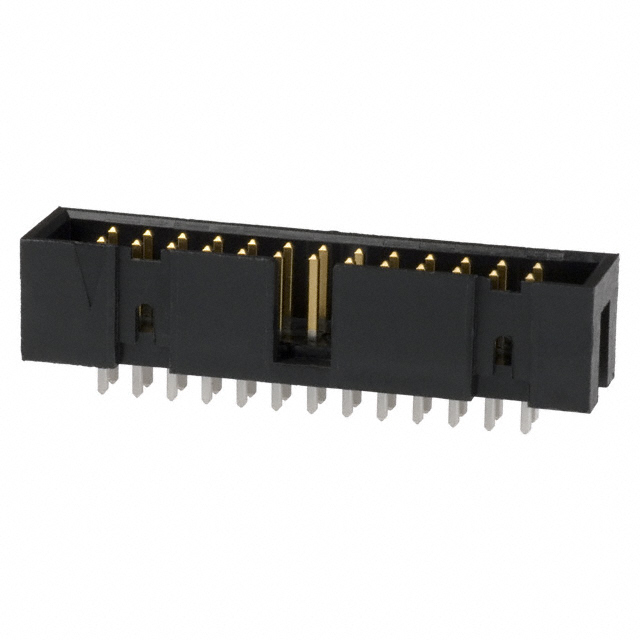

CONN HEADER VERT 26POS 2.54MM

Part	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Length - Mating [x]	Contact Length - Mating [x]	Number of Rows [custom]	Contact Finish - Mating	Number of Positions	Material Flammability Rating	Shrouding	Contact Length - Post	Contact Length - Post	Insulation Height	Insulation Height	Contact Finish - Post	Connector Type	Current Rating (Amps)	Number of Positions Loaded	Pitch - Mating	Pitch - Mating	Fastening Type	Insulation Color	Contact Material	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Operating Temperature [Max]	Operating Temperature [Min]	Style	Contact Type	Contact Shape	Termination	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Voltage Rating	Insulation Material	Mounting Type	Features
TE Connectivity AMP Connectors 1761602-9	2.54 µm	100 µin	0.24 in	6.1 mm	2	Gold	26	UL94 V-0	Shrouded - 4 Wall	2.6 mm	0.102 in	8.89 mm	0.35 in	Tin	Header	1 A	All	0.1 "	2.54 mm	Push-Pull	Black	Phosphor Bronze	0.38 µm	15 µin	105 ░C	-65 ░C	Board to Cable/Wire	Male Pin	Square	Solder	0.1 in	2.54 mm	250 VAC	Polybutylene Terephthalate (PBT)	Through Hole	Keying Slot
