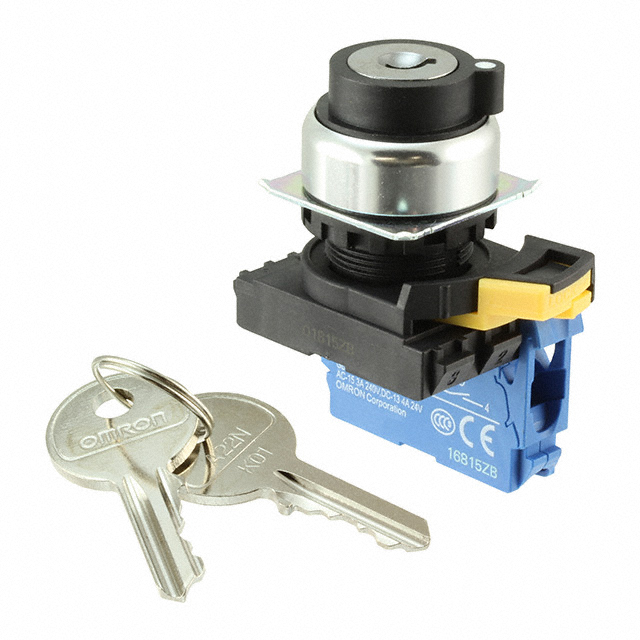

A22NK Series

Manufacturer: Omron Automation and Safety

Catalog

Catalog

SWITCH KEYLCK 2POS 3PST 10A 120V

...

Part	Mechanical Life	Depth Behind Flange	Electrical Life	Circuit	Voltage Rating - DC	Switch Function	Termination Style	Angle of Throw	Number of Positions	Voltage Rating - AC	Actuator Type	Mounting Type	Current Rating (Amps)	Features	Operating Temperature [Min]	Operating Temperature [Max]	Key Removable Positions [custom]	Contact Timing	Panel Cutout Dimensions [diameter]	Key Removable Positions	Switch Function

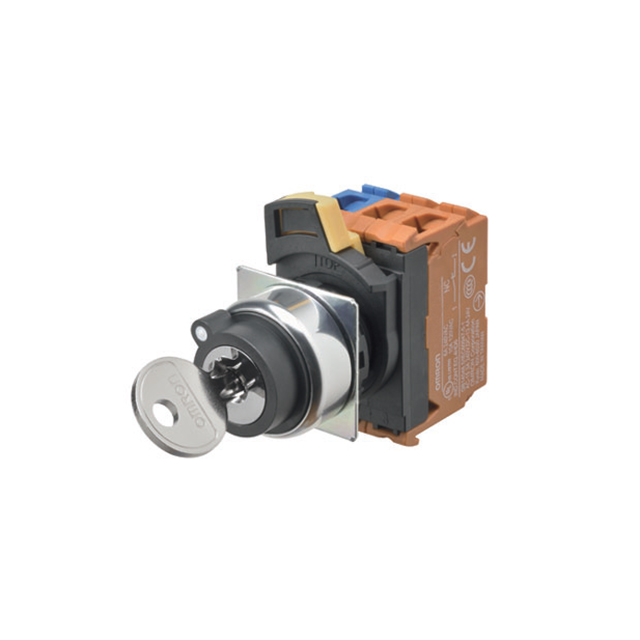

Omron Automation and Safety A22NK-2RM-01BA-G111	500000 Cycles	45.3 mm	500000 Cycles	3PST-NO	24 V	Off-On	Screw Terminal	90 °	2	120 V	Flat Key	Panel Mount	8 A 10 A	IP66	-25 °C	70 °C	Left	Not Specified	22.3 mm

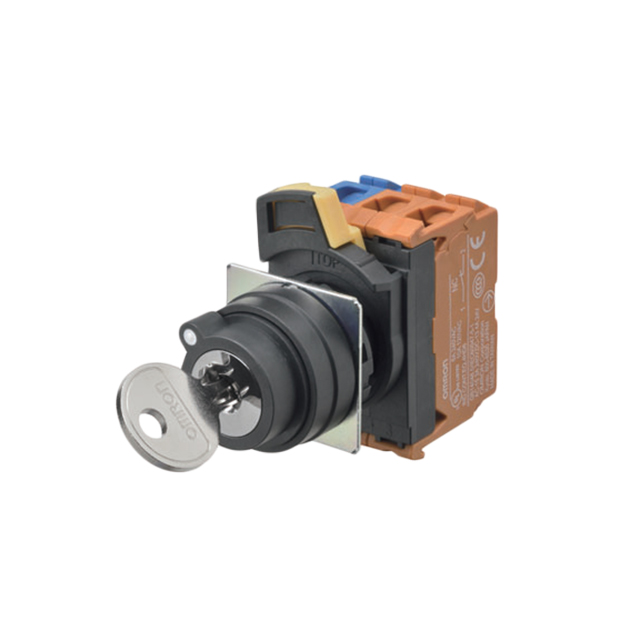

Omron Automation and Safety A22NK-2BM-01AA-G100	500000 Cycles	45.3 mm	500000 Cycles	SPST-NO	24 V	Off-On	Screw Terminal	90 °	2	120 V	Flat Key	Panel Mount	8 A 10 A	IP66	-25 °C	70 °C		Not Specified	22.3 mm	All
Omron Automation and Safety A22NK-2RM-01BA-G100	500000 Cycles	45.3 mm	500000 Cycles	SPST-NO	24 V	Off-On	Screw Terminal	90 °	2	120 V	Flat Key	Panel Mount	8 A 10 A	IP66	-25 °C	70 °C	Left	Not Specified	22.3 mm
Omron Automation and Safety A22NK-3RB-01DA-P202
Omron Automation and Safety A22NK-2ML-01BA-P101
Omron Automation and Safety A22NK-2BM-01AA-P101

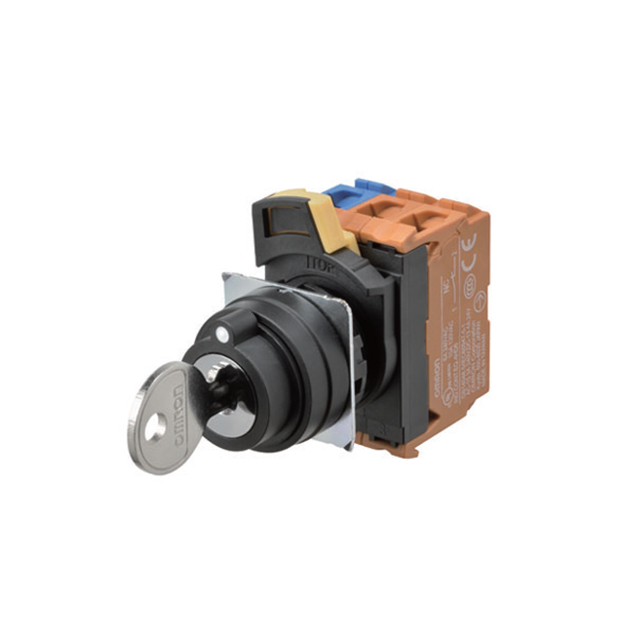

Omron Automation and Safety A22NK-3BB-01DA-G102	300000 Cycles	45.3 mm	300000 Cycles	DPST-NO/NC	24 V	Mom-Off-Mom Mom-On-Mom	Screw Terminal	45 °		120 V	Flat Key	Panel Mount	8 A 10 A	IP66	-25 °C	70 °C		Not Specified	22.3 mm	Center

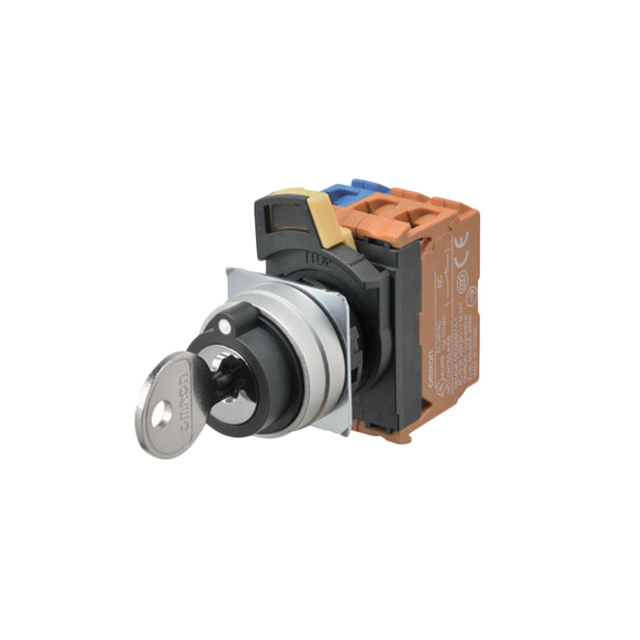

Omron Automation and Safety A22NK-3MM-01GA-G101	300000 Cycles	45.3 mm	300000 Cycles	DPST-NO	24 V	Off-Off-On On-Off-Off	Screw Terminal	45 °		120 V	Flat Key	Panel Mount	8 A 10 A	IP66	-25 °C	70 °C		Not Specified	22.3 mm	Left and Right
Omron Automation and Safety A22NK-3RB-01DA-P102
Omron Automation and Safety A22NK-3BM-01BA-G102	300000 Cycles	45.3 mm	300000 Cycles	DPST-NO/NC	24 V	On-Off-Off	Screw Terminal	45 °		120 V	Flat Key	Panel Mount	8 A 10 A	IP66	-25 °C	70 °C	Left	Not Specified	22.3 mm		On-On-Off
