R19176 Series

Catalog

N FEMALE - QN FEMALE STRAIGHT AD

Part	Operating Temperature [Min]	Operating Temperature [Max]	Dielectric Material	Body Finish	Body Material	Center Contact Material	Frequency - Max [Max]	Mounting Type	Convert To (Adapter End)	Center Gender	Convert From (Adapter End)	Adapter Type	Conversion Type	Style	Impedance	Fastening Type	Adapter Series	Center Contact Plating

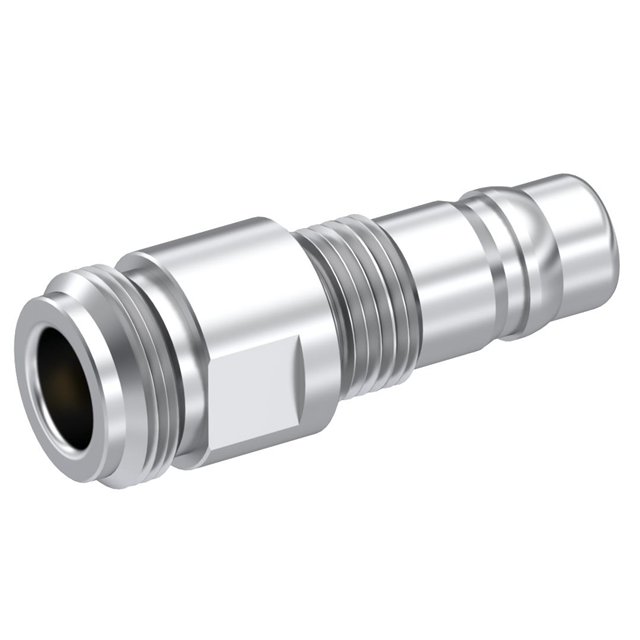

Radiall USA, Inc. R191760010	-55 C	125 °C	Polytetrafluoroethylene (PTFE)	White Bronze	Brass	Beryllium Copper	6000 MHz	Free Hanging (In-Line)	QN Jack Female Socket	Female to Female	Female Socket N Jack	Jack to Jack	Between Series	Straight	50 Ohms	Push-Pull Threaded	N to QN

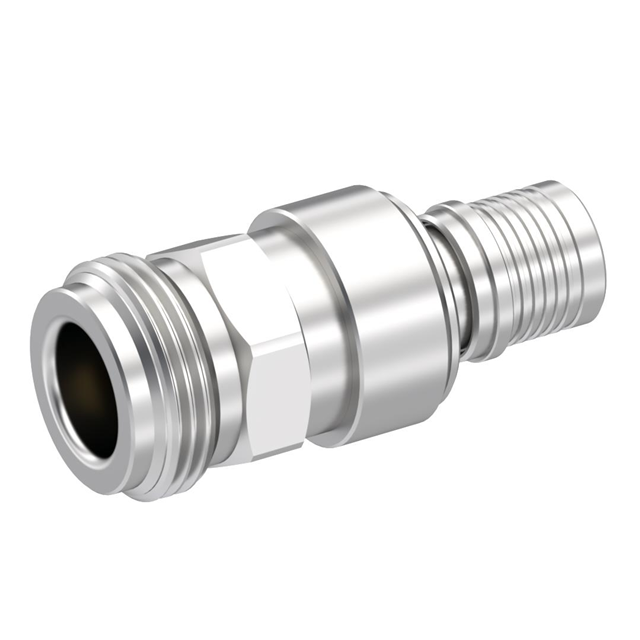

Radiall USA, Inc. R191763000	-40 C	80 °C	Polytetrafluoroethylene (PTFE)	White Bronze	Brass	Beryllium Copper	6000 MHz	Free Hanging (In-Line)	QMA Plug Male Pin		Female Socket N Jack	Plug to Jack	Between Series	Straight	50 Ohms	Snap-On Threaded	N to QMA	Gold

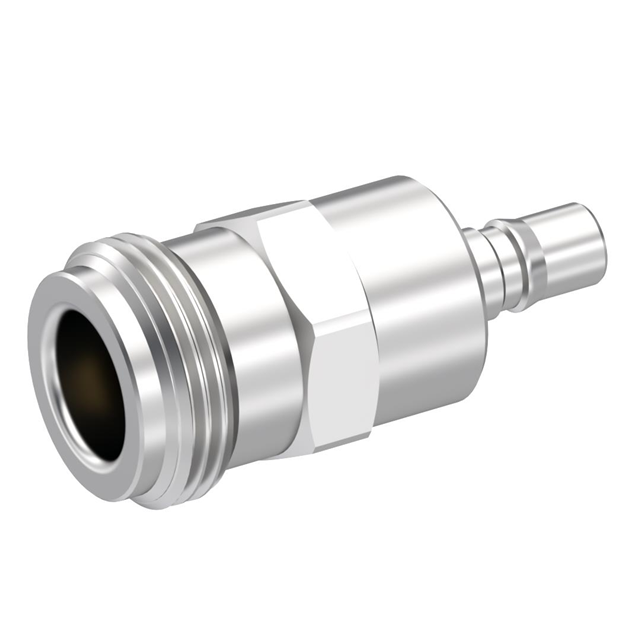

Radiall USA, Inc. R191764000	-40 C	80 °C	Polytetrafluoroethylene (PTFE)	White Bronze	Brass	Beryllium Copper	6000 MHz	Free Hanging (In-Line)	QMA Jack Female Socket	Female to Female	Female Socket N Jack	Jack to Jack	Between Series	Straight	50 Ohms	Snap-On Threaded	N to QMA	Gold

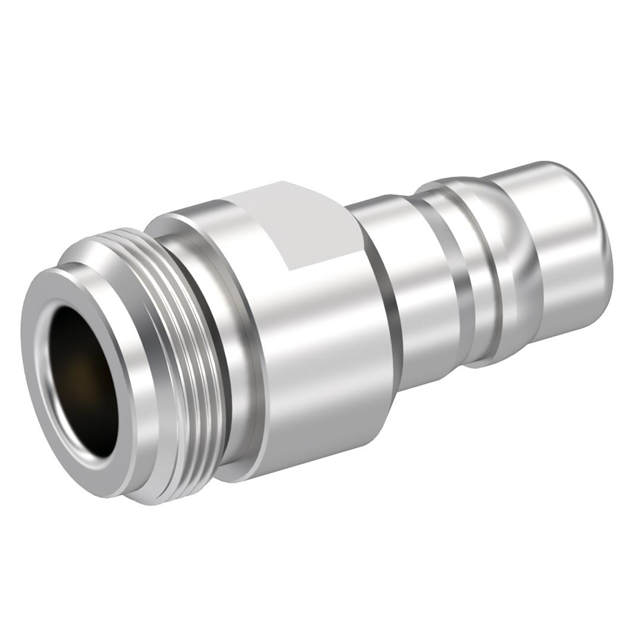

Radiall USA, Inc. R191760000	-55 C	125 °C	Polytetrafluoroethylene (PTFE)		Brass	Beryllium Copper	6000 MHz	Free Hanging (In-Line)	N Jack Female Socket	Female to Female	Female Socket QN Jack	Jack to Jack	Between Series	Straight	50 Ohms		QN to N	Silver

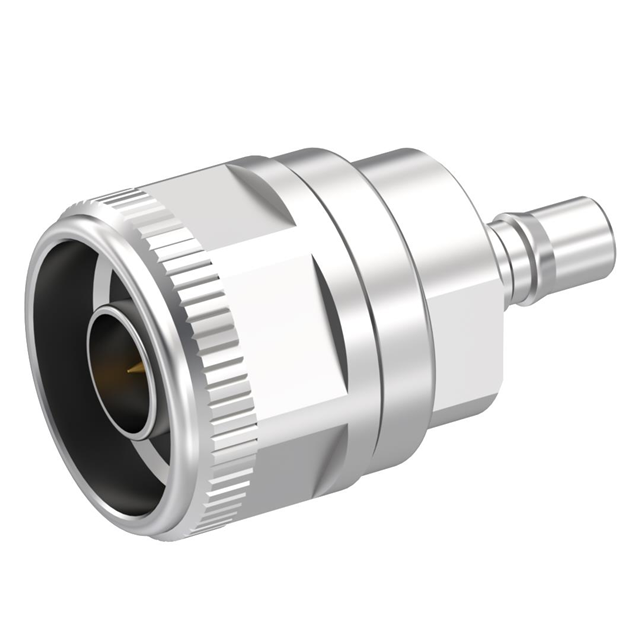

Radiall USA, Inc. R191762000	-40 C	80 °C	Polytetrafluoroethylene (PTFE)	White Bronze	Brass	Beryllium Copper	6000 MHz	Free Hanging (In-Line)	QMA Jack Female Socket		N Plug Male Pin	Plug to Jack	Between Series	Straight	50 Ohms	Snap-On Threaded	N to QMA	Gold
