3044-0 Series

Manufacturer: Mill-Max Manufacturing Corp.

Catalog

CONN PIN RCPT

Part	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Hole Diameter [diameter]	Mounting Hole Diameter [diameter]	Tail Type	Termination	Contact Finish	Pin Hole Diameter [diameter]	Pin Hole Diameter [diameter]	Socket Depth	Socket Depth	Contact Material	Tail Diameter [diameter]	Tail Diameter [diameter]	Flange Diameter [diameter]	Flange Diameter [diameter]	Accepts Pin Diameter [Min] [diameter]	Accepts Pin Diameter [Max] [diameter]	Accepts Pin Diameter [Max] [diameter]	Accepts Pin Diameter [Min] [diameter]	Contact Finish Thickness	Contact Finish Thickness	Length - Overall [x]	Length - Overall [x]
Mill-Max Manufacturing Corp. 3044-0-15-80-23-14-04-0	-55 C	125 °C	0.104 in	2.64 mm	Standard Tail	Solder	Gold	2.24 mm	0.088 "	6.6 mm	0.26 "	Beryllium Copper	1.73 mm	0.068 in	2.97 mm	0.117 in	0.045 "	1.65 mm	0.065 "	1.14 mm	0.25 Ám	10 Áin	0.41 in	10.41 mm
Mill-Max Manufacturing Corp. 3044-0-15-01-23-27-04-0	-55 C	125 °C	0.104 in	2.64 mm	Standard Tail	Solder	Gold	2.24 mm	0.088 "	6.6 mm	0.26 "	Beryllium Copper	1.73 mm	0.068 in	2.97 mm	0.117 in	0.045 "	1.65 mm	0.065 "	1.14 mm	0.76 Ám	30 Áin	0.41 in	10.41 mm
Mill-Max Manufacturing Corp. 3044-0-15-01-23-14-04-0	-55 C	125 °C	0.104 in	2.64 mm	Standard Tail	Solder	Gold	2.24 mm	0.088 "	6.6 mm	0.26 "	Beryllium Copper	1.73 mm	0.068 in	2.97 mm	0.117 in	0.045 "	1.65 mm	0.065 "	1.14 mm	0.25 Ám	10 Áin	0.41 in	10.41 mm

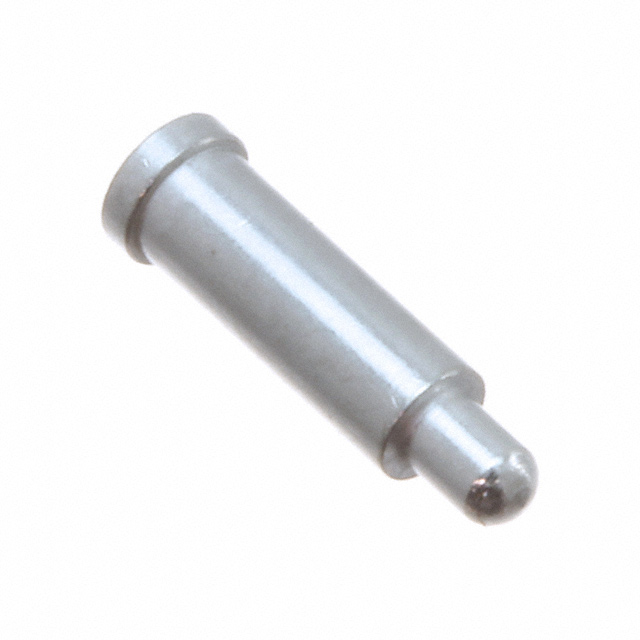

Mill-Max Manufacturing Corp. 3044-0-15-80-23-80-04-0	-55 C	125 °C	0.104 in	2.64 mm	Standard Tail	Solder	Tin	2.24 mm	0.088 "	6.6 mm	0.26 "	Beryllium Copper	1.73 mm	0.068 in	2.97 mm	0.117 in	0.045 "	1.65 mm	0.065 "	1.14 mm	5.08 Ám	200 Áin	0.41 in	10.41 mm

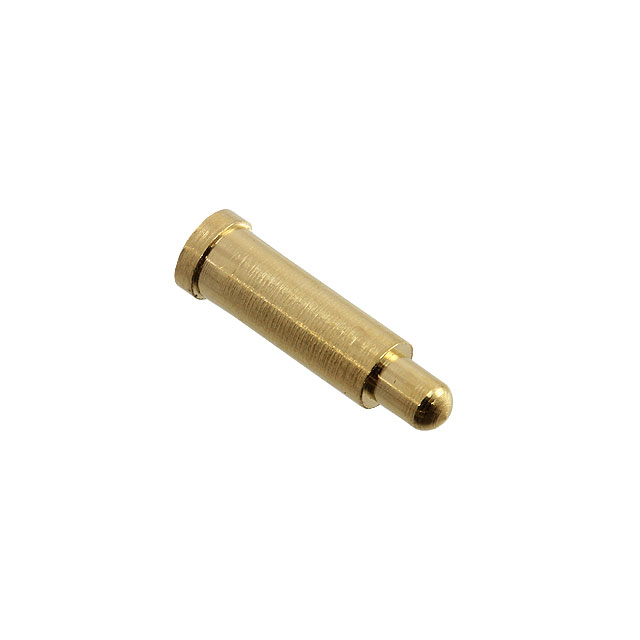

Mill-Max Manufacturing Corp. 3044-0-15-15-23-27-04-0	-55 C	125 °C	0.104 in	2.64 mm	Standard Tail	Solder	Gold	2.24 mm	0.088 "	6.6 mm	0.26 "	Beryllium Copper	1.73 mm	0.068 in	2.97 mm	0.117 in	0.045 "	1.65 mm	0.065 "	1.14 mm	0.76 Ám	30 Áin	0.41 in	10.41 mm
Mill-Max Manufacturing Corp. 3044-0-15-01-23-01-04-0	-55 C	125 °C	0.104 in	2.64 mm	Standard Tail	Solder	Tin-Lead	2.24 mm	0.088 "	6.6 mm	0.26 "	Beryllium Copper	1.73 mm	0.068 in	2.97 mm	0.117 in	0.045 "	1.65 mm	0.065 "	1.14 mm	5.08 Ám	200 Áin	0.41 in	10.41 mm
