85807CY Series
Manufacturer: ALPHA WIRE
Beta
⌘K

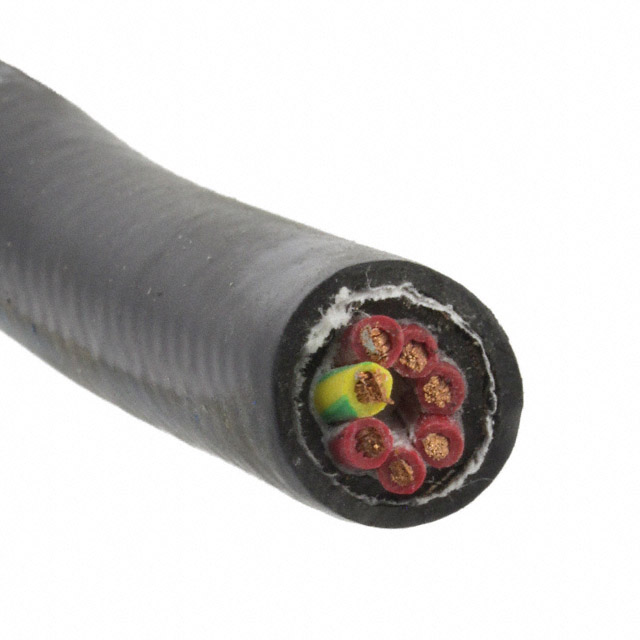

MULTICONDUCTOR CABLE, SHIELDED, 7 CONDUCTOR, 18 AWG, 1 MM², 1000 FT, 304.8 M
| Part | Shield Material | Shield Coverage | Wire Gauge | Conductor Insulation | Number of Conductors | Shield Type | Length | Length | Conductor Material | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness [custom] | Ratings | Conductor Strand | Jacket (Insulation) Material | Cable Type | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Voltage | Jacket Color | Length [x] | Length [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | Copper Tinned | 85 % | 18 AWG | Poly-Vinyl Chloride (PVC) | 7 | Braid | 304.8 m | 1000 ft | Copper Bare | 1.143 mm | 0.045 in | UL Style 2587 | 38 AWG 105 | Poly-Vinyl Chloride (PVC) | Multi-Conductor | 13.51 mm | 0.532 in | 600 V | Black | ||
ALPHA WIRE | Copper Tinned | 85 % | 18 AWG | Poly-Vinyl Chloride (PVC) | 7 | Braid | Copper Bare | 1.143 mm | 0.045 in | UL Style 2587 | 38 AWG 105 | Poly-Vinyl Chloride (PVC) | Multi-Conductor | 13.51 mm | 0.532 in | 600 V | Black | 100 ft | 30.5 m |
