GCTP Series

Manufacturer: Bertech

Catalog

TAPE GLASS CLOTH WHT 0.39"X36YDS

Part	Thickness - Backing, Carrier [custom]	Thickness - Backing, Carrier [custom]	Thickness - Backing, Carrier [custom]	Temperature Range [Max]	Temperature Range [Min]	Temperature Range [Min]	Temperature Range [Max]	Width [y]	Width [y]	Tape Type	Backing, Carrier [custom]	Backing, Carrier [custom]	Thickness - Adhesive	Thickness - Adhesive	Thickness - Adhesive	Usage	Length	Length	Length	Color	Adhesive	Shelf Life Start	Shelf Life	Width	Width	Width	Temperature Range [Max]	Width [x]	Width [x]	Width [x]
Bertech GCTP-10MM	0.127 mm	0.005 in	5 mils	200 °C	-73 °C	-99 °F	200 °C	10 mm	0.39 in	Glass Cloth	Glass Cloth	Glass Cloth	0.051 mm	0.002 in	2 mils	Masking Sealing	32.9 m	108 ft	36 yd	White	Silicone

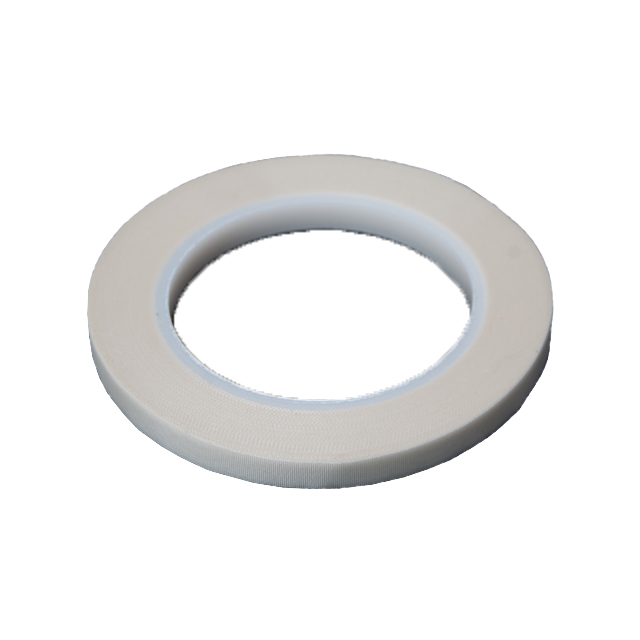

Bertech GCTP-1/4	0.127 mm	0.005 in	5 mils	200 °C	-73 °C	-100 °F				Glass Cloth	Glass Cloth	Glass Cloth	0.051 mm	0.002 in	2 mils	Masking	32.9 m	108 ft	36 yd	White	Silicone	Date of Manufacture	18 Months	0.25 in	0.25 in	6.35 mm	200 °C
Bertech GCTP-100MM	0.127 mm	0.005 in	5 mils	200 °C	-73 °C	-99 °F	200 °C			Glass Cloth	Glass Cloth	Glass Cloth	0.051 mm	0.002 in	2 mils	Masking Sealing	32.9 m	108 ft	36 yd	White	Silicone							3.94 in	100 mm
Bertech GCTP-4 1/2	0.127 mm	0.005 in	5 mils	200 °C	-73 °C	-99 °F	200 °C			Glass Cloth	Glass Cloth	Glass Cloth	0.051 mm	0.002 in	2 mils	Masking Sealing	32.9 m	108 ft	36 yd	White	Silicone				4.5 in	114.3 mm

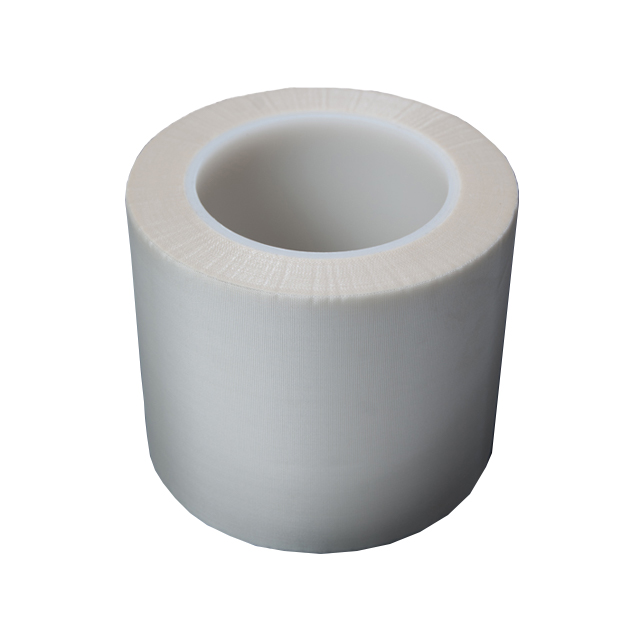

Bertech GCTP-2	0.127 mm	0.005 in	5 mils	200 °C	-73 °C	-100 °F				Glass Cloth	Glass Cloth	Glass Cloth	0.051 mm	0.002 in	2 mils	Masking	32.9 m	108 ft	36 yd	White	Silicone	Date of Manufacture	18 Months				200 °C	2 in	50.8 mm
Bertech GCTP-3/4	0.127 mm	0.005 in	5 mils	200 °C	-73 °C	-100 °F				Glass Cloth	Glass Cloth	Glass Cloth	0.051 mm	0.002 in	2 mils	Masking	32.9 m	108 ft	36 yd	White	Silicone	Date of Manufacture	18 Months				200 °C	0.75 in	19.05 mm	0.75 in
Bertech GCTP-6	0.127 mm	0.005 in	5 mils	200 °C	-73 °C	-99 °F	200 °C	152.4 mm	6 in	Glass Cloth	Glass Cloth	Glass Cloth	0.051 mm	0.002 in	2 mils	Masking Sealing	32.9 m	108 ft	36 yd	White	Silicone
Bertech GCTP-1/8	0.127 mm	0.005 in	5 mils	200 °C	-73 °C	-99 °F	200 °C			Glass Cloth	Glass Cloth	Glass Cloth	0.051 mm	0.002 in	2 mils	Masking Sealing	32.9 m	108 ft	36 yd	White	Silicone	Date of Manufacture	18 Months	0.125 in	0.13 in	3.18 mm
Bertech GCTP-75MM	0.127 mm	0.005 in	5 mils	200 °C	-73 °C	-99 °F	200 °C			Glass Cloth	Glass Cloth	Glass Cloth	0.051 mm	0.002 in	2 mils	Masking Sealing	32.9 m	108 ft	36 yd	White	Silicone							2.95 in	75 mm

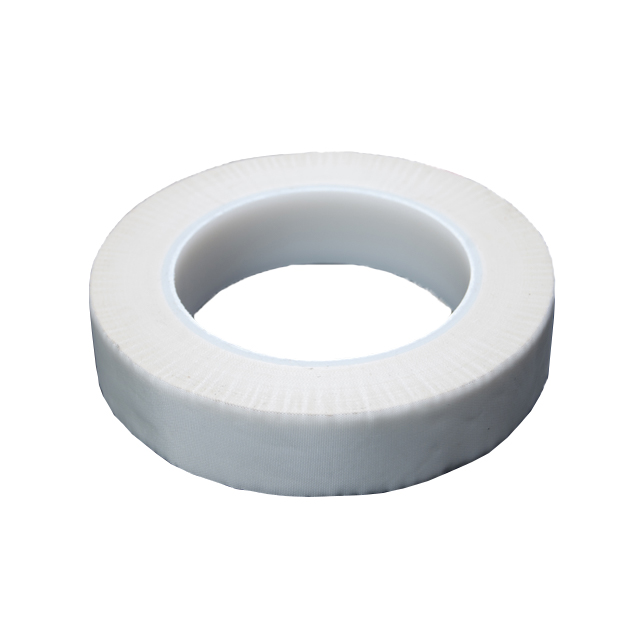

Bertech GCTP-1	0.127 mm	0.005 in	5 mils	200 °C	-73 °C	-100 °F				Glass Cloth	Glass Cloth	Glass Cloth	0.051 mm	0.002 in	2 mils	Masking	32.9 m	108 ft	36 yd	White	Silicone	Date of Manufacture	18 Months				200 °C	1 in	25.4 mm
