AR0805FR Series
Manufacturer: YAGEO
Beta
⌘K

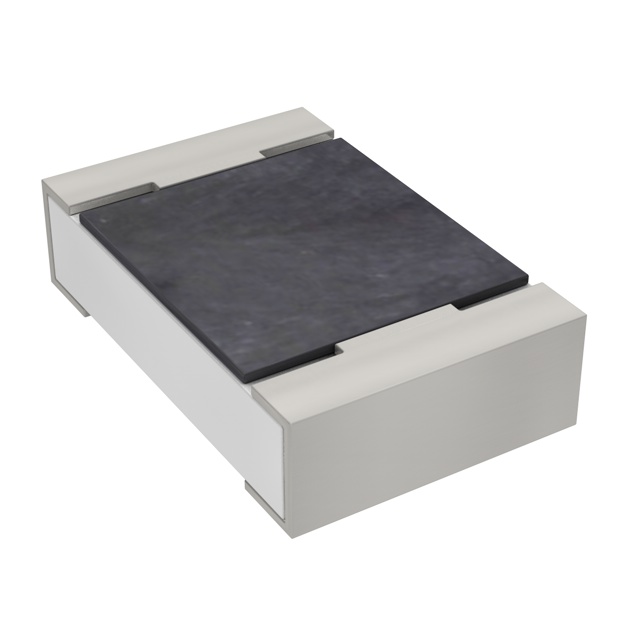

RES SMD 9.09M OHM 1% 1/8W 0805
| Part | Operating Temperature [Max] | Operating Temperature [Min] | Height - Seated (Max) [Max] | Height - Seated (Max) [Max] | Composition | Number of Terminations [custom] | Supplier Device Package | Tolerance | Resistance | Package / Case | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | Features | Power (Watts) | Power (Watts) | Temperature Coefficient |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 YAGEO | 155 C | -55 C | 0.6 mm | 0.024 in | Thick Film | 2 | 0805 | 1 % | 9.09 MOhms | 0805 | 2 mm | 1.25 mm | 0.049 " | 0.079 in | Moisture Resistant | 0.125 W | 0.125 W | 100 ppm/°C |
YAGEO | 155 C | -55 C | 0.6 mm | 0.024 in | Thick Film | 2 | 0805 | 1 % | 2.94 kOhms | 0805 | 2 mm | 1.25 mm | 0.049 " | 0.079 in | Moisture Resistant | 0.125 W | 0.125 W | 100 ppm/°C |
YAGEO | 155 C | -55 C | 0.6 mm | 0.024 in | Thick Film | 2 | 0805 | 1 % | 7.5 Ohms | 0805 | 2 mm | 1.25 mm | 0.049 " | 0.079 in | Moisture Resistant | 0.125 W | 0.125 W | 200 ppm/°C |
YAGEO | 155 C | -55 C | 0.6 mm | 0.024 in | Thick Film | 2 | 0805 | 1 % | 2.26 Ohms | 0805 | 2 mm | 1.25 mm | 0.049 " | 0.079 in | Moisture Resistant | 0.125 W | 0.125 W | 200 ppm/°C |
YAGEO | 155 C | -55 C | 0.6 mm | 0.024 in | Thick Film | 2 | 0805 | 1 % | 1.24 MOhms | 0805 | 2 mm | 1.25 mm | 0.049 " | 0.079 in | Moisture Resistant | 0.125 W | 0.125 W | 100 ppm/°C |
YAGEO | 155 C | -55 C | 0.6 mm | 0.024 in | Thick Film | 2 | 0805 | 1 % | 280 Ohms | 0805 | 2 mm | 1.25 mm | 0.049 " | 0.079 in | Moisture Resistant | 0.125 W | 0.125 W | 100 ppm/°C |
YAGEO | 155 C | -55 C | 0.6 mm | 0.024 in | Thick Film | 2 | 0805 | 1 % | 20 Ohms | 0805 | 2 mm | 1.25 mm | 0.049 " | 0.079 in | Moisture Resistant | 0.125 W | 0.125 W | 100 ppm/°C |
YAGEO | 155 C | -55 C | 0.6 mm | 0.024 in | Thick Film | 2 | 0805 | 1 % | 35.7 kOhms | 0805 | 2 mm | 1.25 mm | 0.049 " | 0.079 in | Moisture Resistant | 0.125 W | 0.125 W | 100 ppm/°C |
YAGEO | 155 C | -55 C | 0.6 mm | 0.024 in | Thick Film | 2 | 0805 | 1 % | 3.83 kOhms | 0805 | 2 mm | 1.25 mm | 0.049 " | 0.079 in | Moisture Resistant | 0.125 W | 0.125 W | 100 ppm/°C |
YAGEO | 155 C | -55 C | 0.6 mm | 0.024 in | Thick Film | 2 | 0805 | 1 % | 2.37 MOhms | 0805 | 2 mm | 1.25 mm | 0.049 " | 0.079 in | Moisture Resistant | 0.125 W | 0.125 W | 100 ppm/°C |
