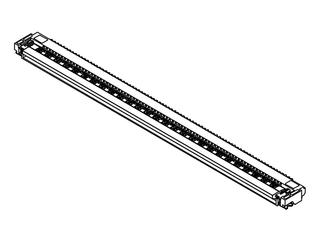

0.50mm Pitch Easy-On FFC/FPC Slim Connector, Surface Mount, Right-Angle,ZIF, Bottom Contact Style, Front Flip, 1.50mm Mated Height, Gold (Au) Plating, 80 Circuits
0.50mm Pitch Easy-On FFC/FPC Slim Connector, Surface Mount, Right-Angle,ZIF, Bottom Contact Style, Front Flip, 1.50mm Mated Height, Gold (Au) Plating, 80 Circuits
0.50mm Pitch Easy-On FFC/FPC Slim Connector, Surface Mount, Right-Angle,ZIF, Bottom Contact Style, Front Flip, 1.50mm Mated Height, Gold (Au) Plating, 80 Circuits
| Part | Voltage Rating | Termination | Locking Feature | Actuator Material | Mounting Type | Housing Color | Current Rating (Amps) | Cable End Type | Contact Finish | FFC, FCB Thickness | Contact Material | Connector/Contact Type | Height Above Board | Height Above Board | Actuator Color | Pitch [x] | Pitch [x] | Operating Temperature [Max] | Operating Temperature [Min] | Mating Cycles | Features | Material Flammability Rating | Housing Material | Number of Positions | Flat Flex Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Molex | 50 V | Solder | Flip Lock | Polybutylene Terephthalate (PBT) Glass Filled | Surface Mount Right Angle | Natural | 0.5 A | Straight Tapered | Gold | 0.3 mm | Phosphor Bronze | Contacts Bottom | 0.059 in | 1.5 mm | Black | 0.5 mm | 0.02 in | 85 °C | -20 C | 20 | Solder Retention Zero Insertion Force (ZIF) | UL94 V-0 | Liquid Crystal Polymer (LCP) Glass Filled | 80 | FFC FPC |
