A3UL-TMG Series

Manufacturer: Omron Automation and Safety

Catalog

PUSHBUTTON SWITCHES LIGHTED PB,GREEN,24VDC

Part	Electrical Life	Mechanical Life	Switch Function	Voltage Rating - DC	Ingress Protection	Type	Actuator Marking	Color - Actuator/Cap	Panel Cutout Dimensions [diameter]	Illumination Type, Color	Mounting Type	Actuator Type	Circuit	Current Rating (Amps)	Operating Temperature [Max]	Operating Temperature [Min]	Termination Style	Illumination Voltage (Nominal)
Omron Automation and Safety A3UL-TMG-3A1C-M	200000 Cycles	1000000 Cycles	On-Mom	30 V	IP40	Illuminated Standard	No Marking	Clear	25.2 mm	Green LED	Panel Mount Front	Button Flush Round	SPDT	100 mA	55 °C	-20 ░C	Connector	24 V
Omron Automation and Safety A3UL-TMG-2A2C-M	200000 Cycles	1000000 Cycles	On-Mom	30 V	IP40	Illuminated Standard	No Marking	Clear	25.2 mm	Green LED	Panel Mount Front	Button Flush Round	DPDT	100 mA	55 °C	-20 ░C	Connector	12 VDC

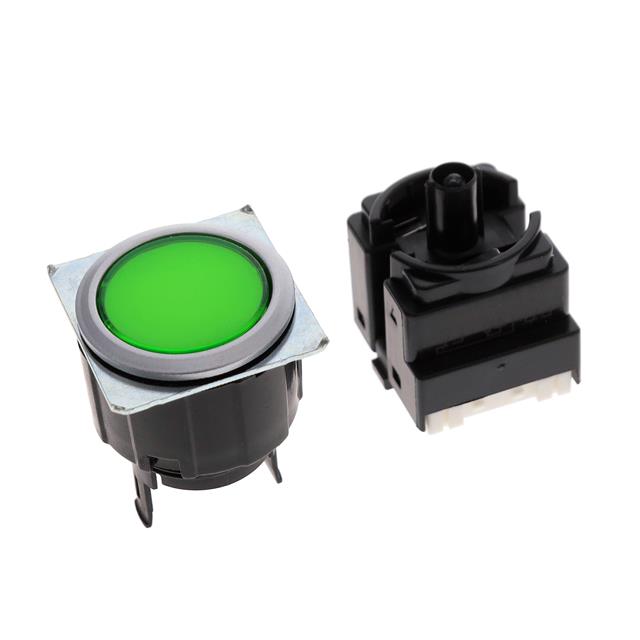

Omron Automation and Safety A3UL-TMG-1A2C-M	200000 Cycles	1000000 Cycles	On-Mom	30 V	IP40	Illuminated Standard	No Marking	Clear	25.2 mm	Green LED	Panel Mount Front	Button Flush Round	DPDT	100 mA	55 °C	-20 ░C	Connector	5 VDC
Omron Automation and Safety A3UL-TMG-2A1C-M	200000 Cycles	1000000 Cycles	On-Mom	30 V	IP40	Illuminated Standard	No Marking	Clear	25.2 mm	Green LED	Panel Mount Front	Button Flush Round	SPDT	100 mA	55 °C	-20 ░C	Connector	12 VDC
Omron Automation and Safety A3UL-TMG-3A2C-M	200000 Cycles	1000000 Cycles	On-Mom	30 V	IP40	Illuminated Standard	No Marking	Clear	25.2 mm	Green LED	Panel Mount Front	Button Flush Round	DPDT	100 mA	55 °C	-20 ░C	Connector	24 V
Omron Automation and Safety A3UL-TMG-3A1C-5M	200000 Cycles	1000000 Cycles	On-Mom	30 V	IP65	Illuminated Standard	No Marking	Clear	25.2 mm	Green LED	Panel Mount Front	Button Flush Round	SPDT	100 mA	55 °C	-20 ░C	Connector	24 V
Omron Automation and Safety A3UL-TMG-2A2C-5M	200000 Cycles	1000000 Cycles	On-Mom	30 V	IP65	Illuminated Standard	No Marking	Clear	25.2 mm	Green LED	Panel Mount Front	Button Flush Round	DPDT	100 mA	55 °C	-20 ░C	Connector	12 VDC
Omron Automation and Safety A3UL-TMG-1A1C-M	200000 Cycles	1000000 Cycles	On-Mom	30 V	IP40	Illuminated Standard	No Marking	Clear	25.2 mm	Green LED	Panel Mount Front	Button Flush Round	SPDT	100 mA	55 °C	-20 ░C	Connector	5 VDC
Omron Automation and Safety A3UL-TMG-1A2C-5M	200000 Cycles	1000000 Cycles	On-Mom	30 V	IP65	Illuminated Standard	No Marking	Clear	25.2 mm	Green LED	Panel Mount Front	Button Flush Round	DPDT	100 mA	55 °C	-20 ░C	Connector	5 VDC
Omron Automation and Safety A3UL-TMG-2A1C-5M	200000 Cycles	1000000 Cycles	On-Mom	30 V	IP65	Illuminated Standard	No Marking	Clear	25.2 mm	Green LED	Panel Mount Front	Button Flush Round	SPDT	100 mA	55 °C	-20 ░C	Connector	12 VDC
