G81MA7-P Series
Manufacturer: ODU
Beta
⌘K

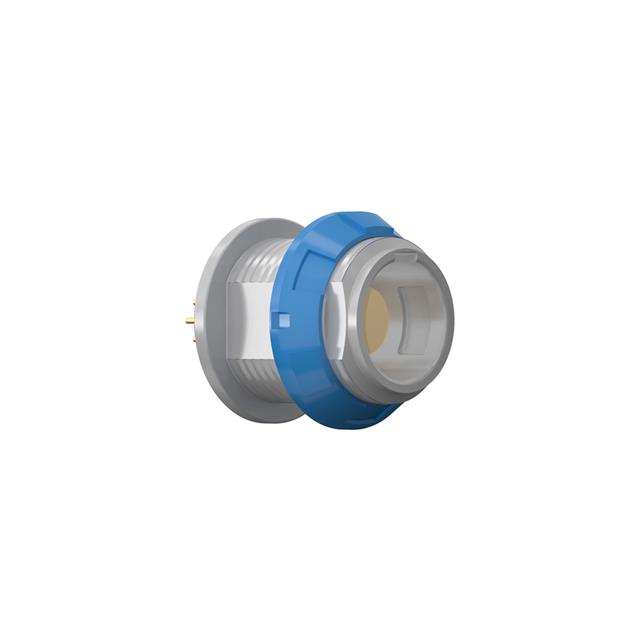

ODU MEDI-SNAP RECEPT, STY 8, SZ
| Part | Current Rating (Amps) | Connector Type | Operating Temperature [Max] | Operating Temperature [Min] | Color | Insert Material | Contact Finish - Mating | Applications | Mounting Feature | Number of Positions | Voltage Rating | Shell Material | Mounting Type | Fastening Type | Contact Material | Shell Size - Insert | Shielding | Material Flammability Rating | Orientation | Ingress Protection | Primary Material | Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
7.5 A | Receptacle Female Sockets | 120 °C | -50 °C | Blue Gray | Polyetheretherketone (PEEK) | Gold | Industrial Medical Testing Equipment & Measurement | Bulkhead - Front Side Nut | 6 | 33 V | Polysulfone (PSU) | Panel Mount | Detent Lock Push-Pull | Brass | 1 | Unshielded | UL94 V-0 | A | IP50 - Dust Protected | Plastic | ||
4 A | Receptacle Female Sockets | 120 °C | -50 °C | Gray Green | Polyetheretherketone (PEEK) | Gold | Industrial Medical Testing Equipment & Measurement | Bulkhead - Front Side Nut | 9 | 33 V | Polysulfone (PSU) | Panel Mount Through Hole | Detent Lock Push-Pull | Brass | 1 | Unshielded | UL94 V-0 | A | IP50 - Dust Protected | Plastic | Solder | |
4 A | Receptacle Female Sockets | 120 °C | -50 °C | Gray | Polyetheretherketone (PEEK) | Gold | Industrial Medical Testing Equipment & Measurement | Bulkhead - Front Side Nut | 14 | 25 V | Polysulfone (PSU) | Panel Mount Through Hole | Detent Lock Push-Pull | Brass | 1 | Unshielded | UL94 V-0 | A | IP50 - Dust Protected | Plastic | Solder | |
4 A | Receptacle Female Sockets | 120 °C | -50 °C | Blue Gray | Polyetheretherketone (PEEK) | Gold | Industrial Medical Testing Equipment & Measurement | Bulkhead - Front Side Nut | 9 | 33 V | Polysulfone (PSU) | Panel Mount Through Hole | Detent Lock Push-Pull | Brass | 1 | Unshielded | UL94 V-0 | A | IP50 - Dust Protected | Plastic | Solder | |
7.5 A | Receptacle Female Sockets | 120 °C | -50 °C | Blue Gray | Polyetheretherketone (PEEK) | Gold | Industrial Medical Testing Equipment & Measurement | Bulkhead - Front Side Nut | 5 | 35 V | Polysulfone (PSU) | Panel Mount Through Hole | Detent Lock Push-Pull | Brass | 1 | Unshielded | UL94 V-0 | A | IP50 - Dust Protected | Plastic | Solder |
