RI-69SM Series

Catalog

SWITCH REED SPST-NO 700MA 140V

Part	Operate Range [Max]	Operate Range [Min]	Size - Body [x]	Size - Body [x]	Size - Body [z]	Size - Body [z]	Size - Body [y]	Size - Body [y]	Capacitance	Release Range [Max]	Release Range [Min]	Circuit	Voltage - Switching DC	Current - Carry	Operating Temperature [Max]	Operating Temperature [Min]	Length - Overall [x]	Length - Overall [x]	Current - Switching	Height Above Board [z]	Height Above Board [z]	Termination Style	Type	Mounting Type	Voltage - Switching AC [custom]	Power - Rated

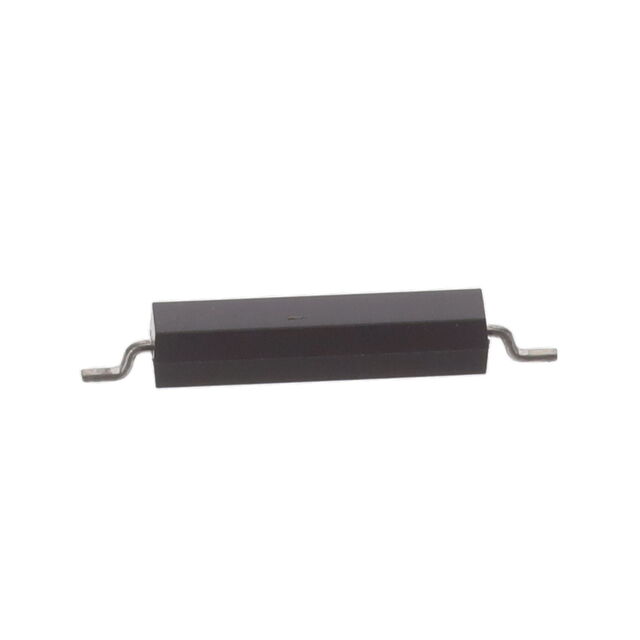

Comus International RI-69SMDM-1520-G1	20 AT	15 AT	11.48 mm	0.452 "	2.29 mm	0.09 "	0.09 "	2.29 mm	0.25 pF	18 AT	4	SPST-NO	200 V	1 A	85 °C	-40 C	0.639 in	16.23 mm	1 A 700 mA	2.41 mm	0.095 in	Gull Wing	Molded Body Reed	Surface Mount	140 V	20 W
