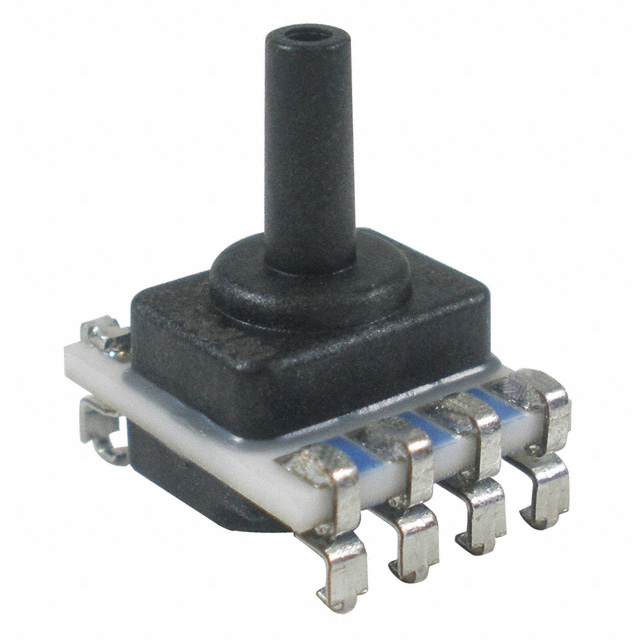

HSCMLND Series

Catalog

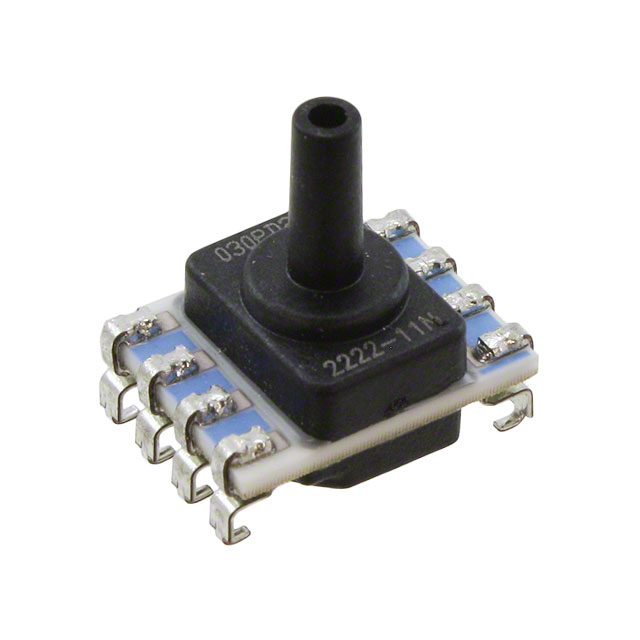

SENSOR 30PSID 0.1" 12BIT 8SMD

Part	Mounting Type	Port Size	Port Size	Port Size	Supplier Device Package	Applications	Voltage - Supply [Max]	Voltage - Supply [Min]	Pressure Type	Maximum Pressure [Min]	Maximum Pressure [Max]	Maximum Pressure [Max]	Maximum Pressure [Min]	Termination Style	Operating Pressure	Operating Pressure	Operating Temperature [Max]	Operating Temperature [Min]	Accuracy	Package / Case	Output	Port Style	Features	Output Type
Honeywell Sensing and Productivity Solutions HSCMLND030PD2A3	Surface Mount	2.47 mm	0.1 "	Male	8-SMD	Board Mount	3.6 V	3 V	Differential	-120 PSI	827.37 kPa	120 PSI	-827.37 kPa	J Lead	206.84 kPa	30 PSI	85 °C	-20 C	0.25 %	8-SMD J-Lead Top Port	12 b	Barbless	Amplified Output Temperature Compensated	I2C
Honeywell Sensing and Productivity Solutions HSCMLND001PGSA3	Surface Mount	2.47 mm	0.1 "	Male	8-SMD	Board Mount	3.6 V	3 V	Vented Gauge		68.95 kPa	10 PSI		J Lead	6.89 kPa	1 PSI	85 °C	-20 C	0.25 %	8-SMD J-Lead Top Port	12 b	Barbless	Amplified Output Temperature Compensated	SPI
Honeywell Sensing and Productivity Solutions HSCMLND025MG2A3	Surface Mount	2.47 mm	0.1 "	Male	8-SMD	Board Mount	3.33 V	3.27 V	Vented Gauge		75 kPa	10.88 PSI		J Lead	2.5 kPa	0.36 PSI	85 °C	-20 C	0.25 %	8-SMD J-Lead Top Port	12 b	Barbless	Amplified Output Temperature Compensated	I2C
