EGG.3P Series

Manufacturer: LEMO

Catalog

CONN RCPT FMALE 11POS GOLD SLDR

Part	Features	Contact Finish - Mating	Ingress Protection	Orientation	Mounting Type	Number of Positions [custom]	Number of Positions [x]	Mounting Feature	Operating Temperature [Max]	Operating Temperature [Min]	Primary Material	Shell Material	Insert Material	Connector Type	Fastening Type	Termination	Current Rating (Amps)	Shell Size - Insert	Color	Number of Positions	Number of Positions [custom]	Number of Positions [custom]	Number of Positions [custom]
LEMO EGG.3P.310.PLNG	Ground	Gold	IP61	Keyed	Panel Mount Through Hole	PE	10	Bulkhead - Rear Side Nut	150 °C	-50 °C	Plastic	Polysulfone (PSU)	Polyetheretherketone (PEEK)	Receptacle Female Sockets	Detent Lock Push-Pull	Solder	5 A	310	Gray

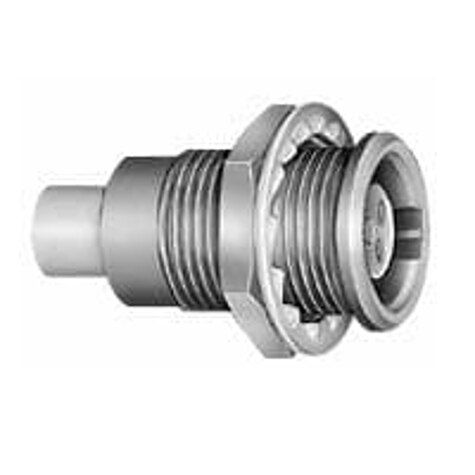

LEMO EGG.3P.310.PLNV	Ground	Gold	IP61	Keyed	Panel Mount Through Hole	PE	10	Bulkhead - Rear Side Nut	150 °C	-50 °C	Plastic	Polysulfone (PSU)	Polyetheretherketone (PEEK)	Receptacle Female Sockets	Detent Lock Push-Pull	Solder	5 A	310	Gray Green
LEMO EGG.3P.306.PLWN	Ground	Gold	IP61	Keyed	Panel Mount			Bulkhead - Rear Side Nut	150 °C	-50 °C	Plastic	Polysulfone (PSU)	Polyetheretherketone (PEEK)	Receptacle Female Sockets	Detent Lock Push-Pull		6 A	306		7
LEMO EGG.3P.310.PLNN	Ground	Gold	IP61	Keyed	Panel Mount Through Hole	PE	10	Bulkhead - Rear Side Nut	150 °C	-50 °C	Plastic	Polysulfone (PSU)	Polyetheretherketone (PEEK)	Receptacle Female Sockets	Detent Lock Push-Pull	Solder	5 A	310

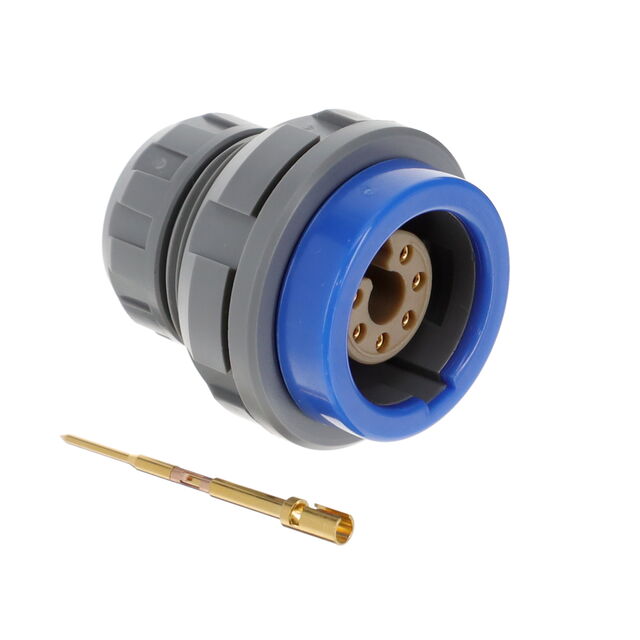

LEMO EGG.3P.306.PLWA	Ground	Gold	IP61	Keyed	Panel Mount			Bulkhead - Rear Side Nut	150 °C	-50 °C	Plastic	Polysulfone (PSU)	Polyetheretherketone (PEEK)	Receptacle Female Sockets	Detent Lock Push-Pull		6 A	306	Blue Gray	7

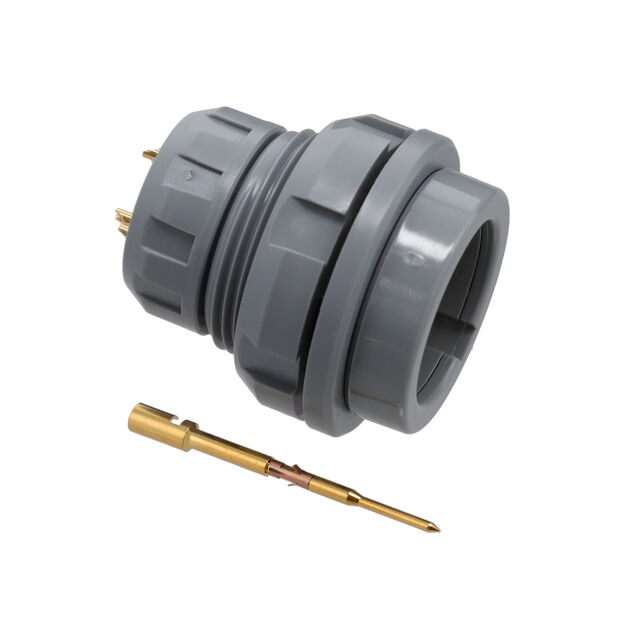

LEMO EGG.3P.306.PLWG	Ground	Gold	IP61	Keyed	Panel Mount			Bulkhead - Rear Side Nut	150 °C	-50 °C	Plastic	Polysulfone (PSU)	Polyetheretherketone (PEEK)	Receptacle Female Sockets	Detent Lock Push-Pull		6 A	306	Gray	7
LEMO EGG.3P.310.PLWJ	Ground	Gold	IP61	Keyed	Panel Mount	PE	10	Bulkhead - Rear Side Nut	150 °C	-50 °C	Plastic	Polysulfone (PSU)	Polyetheretherketone (PEEK)	Receptacle Female Sockets	Detent Lock Push-Pull		5 A	310	Gray Yellow
LEMO EGG.3P.809.PLW2	Ground	Gold	IP61	Keyed	Panel Mount			Bulkhead - Rear Side Nut	150 °C	-50 °C	Plastic	Polysulfone (PSU)	Polyetheretherketone (PEEK)	Receptacle Female Sockets	Detent Lock Push-Pull		4 A		Gray		1	9	1
LEMO EGG.3P.310.PLNM	Ground	Gold	IP61	Keyed	Panel Mount Through Hole	PE	10	Bulkhead - Rear Side Nut	150 °C	-50 °C	Plastic	Polysulfone (PSU)	Polyetheretherketone (PEEK)	Receptacle Female Sockets	Detent Lock Push-Pull	Solder	5 A	310	Brown Gray
LEMO EGG.3P.310.PLWG	Ground	Gold	IP61	Keyed	Panel Mount	PE	10	Bulkhead - Rear Side Nut	150 °C	-50 °C	Plastic	Polysulfone (PSU)	Polyetheretherketone (PEEK)	Receptacle Female Sockets	Detent Lock Push-Pull		5 A	310	Gray
