1060183 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

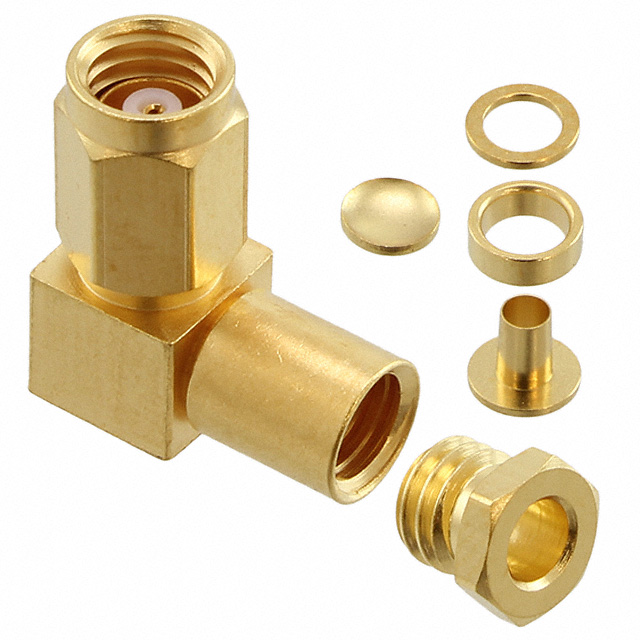

CONN SMC PLUG R/A 50 OHM SOLDER
| Part | Includes | Body Finish | Dielectric Material | Mating Cycles | Body Material | Voltage Rating | Center Contact Plating | Operating Temperature [Min] | Operating Temperature [Max] | Insertion Loss | Connector Type | Impedance | Mounting Type | Connector Style | Fastening Type | Shield Termination | Frequency - Max [Max] | Number of Ports | Housing Color | Contact Termination | Center Contact Material | Cable Group |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | 1 Clamp 1 Connector 1 End Cap 1 Ferrule 1 Spacer 1 Washer 6 pcs | Gold | Polytetrafluoroethylene (PTFE) | 500 | Brass | 335 V | Gold | -65 ░C | 85 °C | 0.5 dB | Female Socket Plug | 50 Ohms | Free Hanging (In-Line) Right Angle | SMC | Threaded | Clamp | 10 GHz | 1 | Gold | Solder | Beryllium Copper | 188 316 RG-174 |
