PTH Series

Catalog

ELECTRICAL ENCLOSURE ACCESSORIES PTH MOUNTING PLATE_ ABS PLASTIC

Part	Accessory Type	Area (L x W)	Area (L x W)	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Color	Thickness	Thickness	Material	Design	Height [z]	Height [z]	Container Type	Features	Material Flammability Rating	Ratings	Area (L x W)	Height	Height	Weight	Weight	Size / Dimension [x]	Size / Dimension [y]	Area (L x W) [custom]	Area (L x W) [custom]	Area (L x W) [custom]	Area (L x W) [custom]
BUD INDUSTRIES PTX-22442-P	Mounting Plate
BUD INDUSTRIES PTX-22428	Mounting Plate
BUD INDUSTRIES PTH-11811-G		17.1 in²	111 cm²	91.01 mm	4.803 "	3.583 in	122 mm	Gray	0.098 in	2.49 mm	ABS Plastic	Hinged Door Lid	2.717 in	69.01 mm	Box	PCB Supports	UL94 HB
BUD INDUSTRIES PTH-22496			46.5 in²	150.11 mm	7.87 in	5.91 in	199.9 mm	Gray	0.12 "	3.05 mm	Plastic Polycarbonate (PC)	Hinged Door Lid	2.95 in	74.93 mm	Box	Latches Sealing Gasket	UL94 5VA	IP67 NEMA 4X UL 508	300 cm²
BUD INDUSTRIES PTX-22428-P	Mounting Plate
BUD INDUSTRIES PTH-22502-C			46.5 in²	150.11 mm	7.87 in	5.91 in	199.9 mm	Gray	0.12 "	3.05 mm	Plastic Polycarbonate (PC)	Hinged Door Lid			Box	Latches Sealing Gasket	UL94 5VA	IP67 NEMA 4X UL 508	300 cm²	160.2 mm	6.307 in

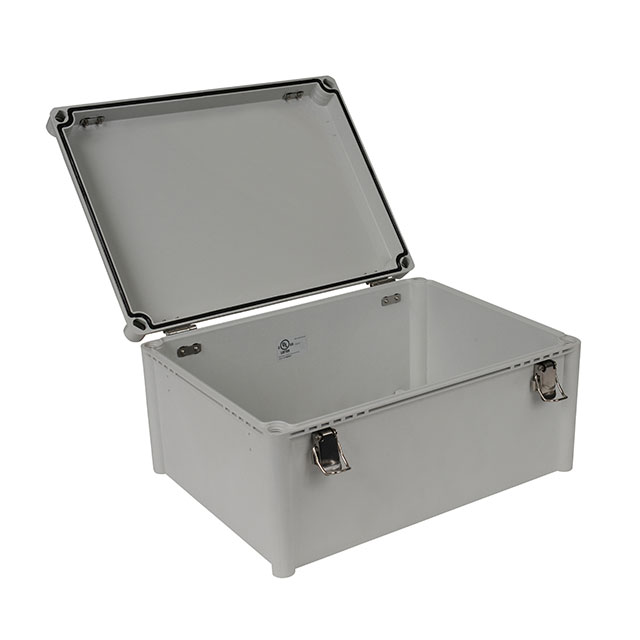

BUD INDUSTRIES PTH-22456		165 in˛	1065 cm²	11.02 in			14.96 in	Gray	0.12 "	3.05 mm	Plastic Polycarbonate (PC)	Hinged Door Lid	7.09 in	180.09 mm	Box	Latches Sealing Gasket	UL94 5VA	IP67 NEMA 4X UL 508				2.1 lb	952.5 g	380 mm	280 mm
BUD INDUSTRIES PTH-22460-C				330.2 mm	16.93 in	13 "	430.02 mm	Gray	0.12 "	3.05 mm	Plastic Polycarbonate (PC)	Hinged Door Lid	7.09 in	180.09 mm	Box	Latches Sealing Gasket	UL94 5VA	IP67 NEMA 4X UL 508								1419 cm²	220 in²
BUD INDUSTRIES PTX-22490-P	Mounting Plate
BUD INDUSTRIES PTH-11810-B				78.99 mm	3.583 in	3.11 "	91.01 mm	Black	0.098 in	2.49 mm	ABS Plastic	Hinged Door Lid			Box	PCB Supports	UL94 HB			45 mm	1.772 in							11.2 in²	72 cm²
