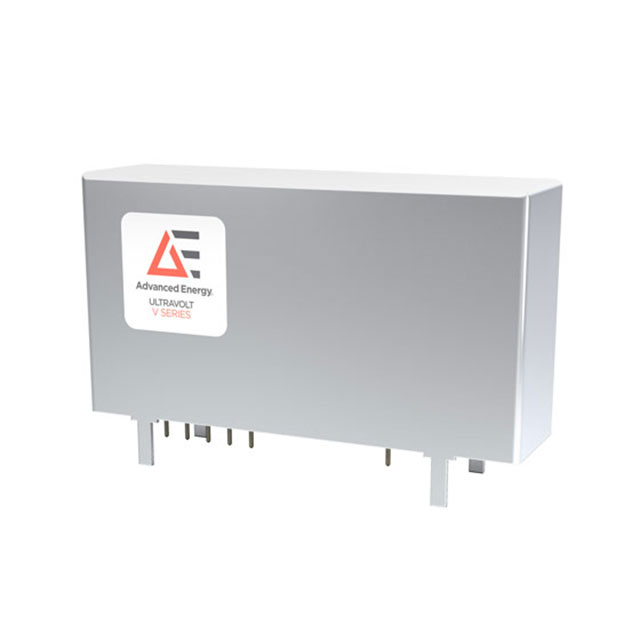

0.6V12 Series
Manufacturer: ULTRAVOLT / Advanced Energy
Beta
⌘K
DC DC CONVERTER 600V 500MW
| Part | Type | Features | Control Features | Approval Agency | Voltage - Output 1 | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] | Operating Temperature [Max] | Operating Temperature [Min] | Mounting Type | Voltage - Input (Max) [Max] | Number of Outputs | Current - Output (Max) [Max] | Voltage - Input (Min) [Min] | Power (Watts) | Package / Case | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ULTRAVOLT / Advanced Energy | High Voltage - Non-Isolated Module | Adjustable Output | Active Low Enable | CE cUL cURus UL | 600 V | 12 mm | 25 mm | 0.98 in | 1.81 " | 0.47 " | 46 mm | 65 °C | -10 °C | Through Hole | 13 V | 1 | 830 µA | 11 V | 0.5 W | 9-SIP Module | ITE (Commercial) |
