A123S1 Series

Catalog

SWITCH TOGGLE SPDT 6A 125V

Part	Actuator Material	Electrical Life	Actuator Type	Circuit	Illumination	Bushing Thread	Termination Style	Operating Temperature [Min]	Operating Temperature [Max]	Voltage Rating - DC	Switch Function	Current Rating (Amps)	Features	Voltage Rating - AC	Mounting Type	Actuator Length [x]	Ingress Protection
Electroswitch A123S1Y9V30Q	Brass Chrome Plated	60000 Cycles	Standard Round	SPDT	Non-Illuminated	Unthreaded	PC Pin	-30 ░C	90 °C	28 V	On-On	6 A	Epoxy Sealed Terminals	125 V	Through Hole	10.41 mm
Electroswitch A123S1CXZQ	Brass Chrome Plated	60000 Cycles	Standard Round	SPDT	Non-Illuminated	1/4-40	Solder Lug	-30 ░C	90 °C	28 V	On-On	6 A	Epoxy Sealed Terminals	125 V	Panel Mount	10.41 mm	Splash Proof
Electroswitch A123S1H3CQ	Brass Chrome Plated	60000 Cycles	Standard Round	SPDT	Non-Illuminated	1/4-40	PC Pin	-30 ░C	90 °C	28 V	On-On	6 A	Epoxy Sealed Terminals	125 V	Panel Mount	10.41 mm
Electroswitch A123S1D9V31B	Brass Chrome Plated	60000 Cycles	Standard Round	SPDT	Non-Illuminated	Unthreaded	PC Pin	-30 ░C	90 °C	28 V	On-On	0.5 VA	Epoxy Sealed Terminals	28 V	Through Hole	10.41 mm
Electroswitch A123S1YWQ	Brass Chrome Plated	60000 Cycles	Standard Round	SPDT	Non-Illuminated	1/4-40	Wire Wrap	-30 ░C	90 °C	28 V	On-On	6 A	Epoxy Sealed Terminals	125 V	Panel Mount	10.41 mm

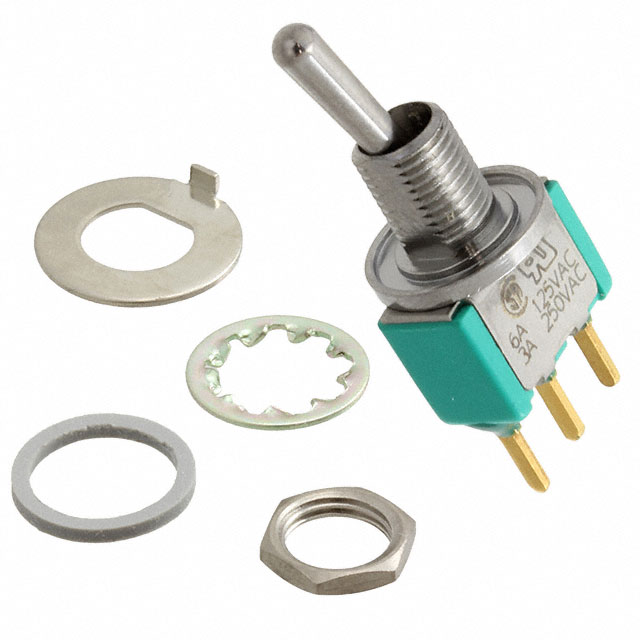

Electroswitch A123S1CWCG-M8	Brass Chrome Plated	60000 Cycles	Standard Round	SPDT	Non-Illuminated	1/4-40	PC Pin	-30 ░C	90 °C	28 V	On-On	6 A	Epoxy Sealed Terminals	125 V	Panel Mount	10.41 mm	Splash Proof
Electroswitch A123S1Y9V60B	Brass Chrome Plated	60000 Cycles	Standard Round	SPDT	Non-Illuminated	Unthreaded	PC Pin	-30 ░C	90 °C	28 V	On-On	0.5 VA	Epoxy Sealed Terminals	28 V	Through Hole	10.41 mm
Electroswitch A123S1HCQ	Brass Chrome Plated	60000 Cycles	Standard Round	SPDT	Non-Illuminated	1/4-40	PC Pin	-30 ░C	90 °C	28 V	On-On	6 A	Epoxy Sealed Terminals	125 V	Panel Mount	10.41 mm
Electroswitch A123S1DCQ	Brass Chrome Plated	60000 Cycles	Standard Round	SPDT	Non-Illuminated	1/4-40	PC Pin	-30 ░C	90 °C	28 V	On-On	6 A	Epoxy Sealed Terminals	125 V	Panel Mount	10.41 mm
Electroswitch A123S1DV30Q	Brass Chrome Plated	60000 Cycles	Standard Round	SPDT	Non-Illuminated	1/4-40	PC Pin	-30 ░C	90 °C	28 V	On-On	6 A	Epoxy Sealed Terminals	125 V	Panel Mount	10.41 mm
