ISC036N Series
Manufacturer: INFINEON
Beta
⌘K

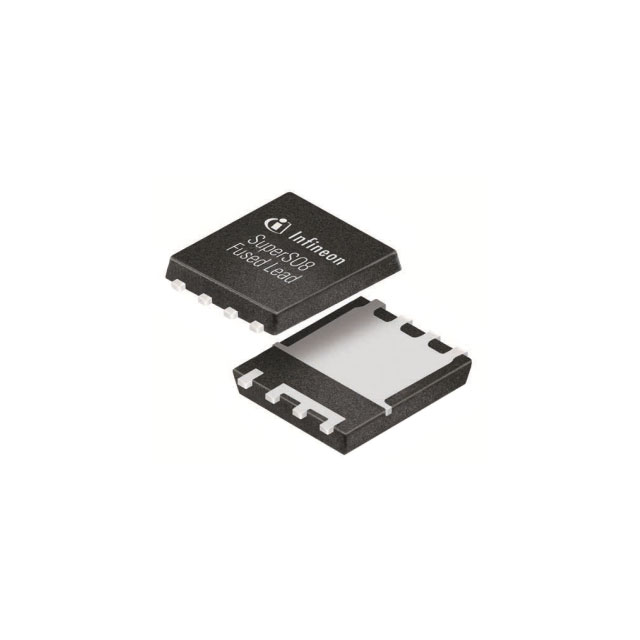

OPTIMOS™ 5 N-CHANNEL POWER MOSFET 40 V ; SUPERSO8 5X6 PACKAGE; 3.6 MOHM;
| Part | Supplier Device Package | Rds On (Max) @ Id, Vgs | Gate Charge (Qg) (Max) @ Vgs | Operating Temperature [Max] | Operating Temperature [Min] | Vgs (Max) | Vgs(th) (Max) @ Id | Drive Voltage (Max Rds On, Min Rds On) | Power Dissipation (Max) | Package / Case | FET Type | Drain to Source Voltage (Vdss) | Technology | Input Capacitance (Ciss) (Max) @ Vds | Current - Continuous Drain (Id) @ 25°C | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 INFINEON | PG-TDSON-8 FL | 3.6 mOhm | 28 nC | 175 °C | -55 °C | 20 V | 3.4 V | 7 V 10 V | 3 W 63 W | 8-PowerTDFN | N-Channel | 40 V | MOSFET (Metal Oxide) | 2000 pF | 21 A 98 A | Surface Mount |
