5059-0 Series

Manufacturer: Mill-Max Manufacturing Corp.

Catalog

CONN RECEPT PIN .032-.046" .125"

Part	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish Thickness	Contact Finish Thickness	Mounting Hole Diameter [diameter]	Mounting Hole Diameter [diameter]	Tail Diameter [diameter]	Tail Diameter [diameter]	Contact Finish	Contact Material	Termination	Pin Hole Diameter [diameter]	Pin Hole Diameter [diameter]	Socket Depth [z]	Socket Depth [z]	Length - Overall [x]	Length - Overall [x]	Accepts Pin Diameter [Max]	Accepts Pin Diameter [Min]	Accepts Pin Diameter [Max]	Accepts Pin Diameter [Min]	Tail Type	Socket Depth	Socket Depth

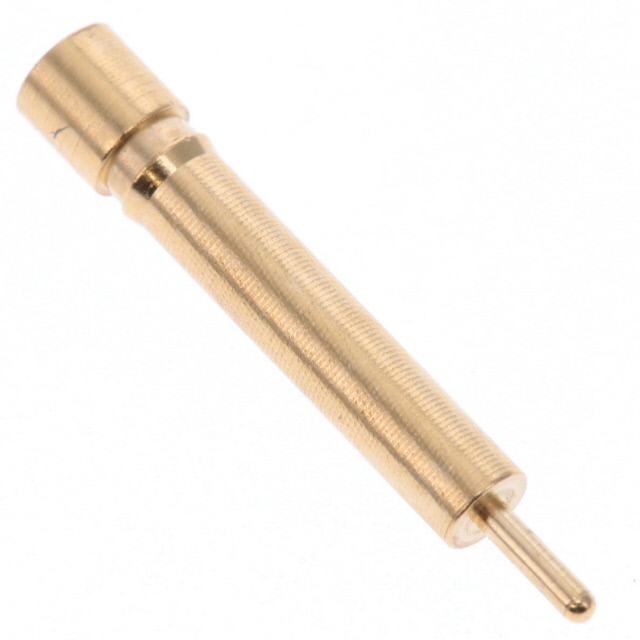

Mill-Max Manufacturing Corp. 5059-0-15-01-34-27-04-0	-55 C	125 °C	30 Áin	0.76 Ám	0.09 in	2.29 mm	0.03 in	0.76 mm	Gold	Beryllium Copper	Press-Fit	1.63 mm	0.064 in	12.57 mm	0.495 in	16.64 mm	0.655 in	1.17 mm	0.81 mm	0.046 "	0.032 "	Standard Tail

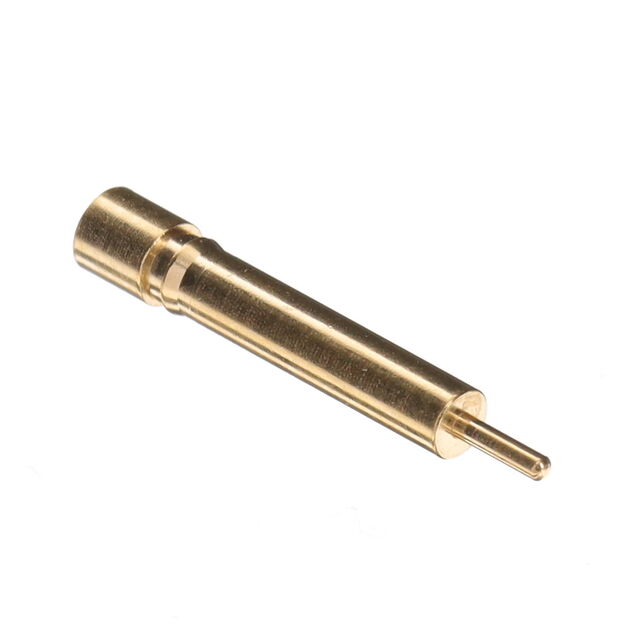

Mill-Max Manufacturing Corp. 5059-0-15-01-34-14-04-0	-55 C	125 °C	10 Áin	0.25 Ám	0.09 in	2.29 mm	0.03 in	0.76 mm	Gold	Beryllium Copper	Press-Fit	1.63 mm	0.064 in	12.57 mm	0.495 in	16.64 mm	0.655 in	1.17 mm	0.81 mm	0.046 "	0.032 "	Standard Tail
Mill-Max Manufacturing Corp. 5059-0-15-15-34-14-04-0	-55 C	125 °C	10 Áin	0.25 Ám	0.09 in	2.29 mm	0.03 in	0.76 mm	Gold	Beryllium Copper	Press-Fit	1.63 mm	0.064 in			16.64 mm	0.655 in	1.17 mm	0.81 mm	0.046 "	0.032 "	Standard Tail	0.132 in	3.35 mm
Mill-Max Manufacturing Corp. 5059-0-15-80-34-27-04-0	-55 C	125 °C	30 Áin	0.76 Ám	0.09 in	2.29 mm	0.03 in	0.76 mm	Gold	Beryllium Copper	Press-Fit	1.63 mm	0.064 in			16.64 mm	0.655 in	1.17 mm	0.81 mm	0.046 "	0.032 "	Standard Tail	0.132 in	3.35 mm
Mill-Max Manufacturing Corp. 5059-0-15-15-34-27-04-0	-55 C	125 °C	30 Áin	0.76 Ám	0.09 in	2.29 mm	0.03 in	0.76 mm	Gold	Beryllium Copper	Press-Fit	1.63 mm	0.064 in	12.57 mm	0.495 in	16.64 mm	0.655 in	1.17 mm	0.81 mm	0.046 "	0.032 "	Standard Tail
Mill-Max Manufacturing Corp. 5059-0-15-80-34-80-04-0	-55 C	125 °C	200 Áin	5.08 Ám	0.09 in	2.29 mm	0.03 in	0.76 mm	Tin	Beryllium Copper	Press-Fit	1.63 mm	0.064 in			16.64 mm	0.655 in	0.81 mm	0.56 mm	0.032 "	0.022 "	Standard Tail	0.132 in	3.35 mm
Mill-Max Manufacturing Corp. 5059-0-15-01-34-01-04-0	-55 C	125 °C	200 Áin	5.08 Ám	0.09 in	2.29 mm	0.03 in	0.76 mm	Tin-Lead	Beryllium Copper	Press-Fit	1.63 mm	0.064 in	12.57 mm	0.495 in	16.64 mm	0.655 in	1.17 mm	0.81 mm	0.046 "	0.032 "	Standard Tail
