SJG.2B Series

Manufacturer: LEMO

Catalog

CONN ADAPTER 16P-16P F-M PNL MNT

Part	Housing Finish	Includes	Current Rating (Amps)	Operating Temperature [Max]	Operating Temperature [Min]	Orientation (Convert To)	Orientation (Convert From)	Fastening Type	Housing Color	Shielding	Shell Size - Insert (Convert From)	Features	Convert To (Adapter End)	Shell Size - Insert (Convert To) [custom]	Housing Material	Convert From (Adapter End)	Connector Style	Mounting Type	Ingress Protection	Mounting Feature	Number of Positions (Convert To)	Number of Positions (Convert From)	Number of Positions (Convert To) [custom]	Shell Size - Insert (Convert From) [custom]	Shell Size - Insert (Convert To)
LEMO SJG.2B.316.CLAPV	Chrome	1 Adapter 1 Nut	6 A	80 °C	-20 ░C	G	J	Push-Pull	Silver	Shielded	316	Mounting Hardware Vacuumtight	Male Pins	316	Brass	Female Sockets	Standard	Panel Mount	IP68 - Dust Tight Waterproof	Bulkhead - Rear Side Nut	16	16
LEMO SJG.2B.305.CLAPV	Chrome	1 Adapter 1 Nut	14 A	80 °C	-20 ░C	G	J	Push-Pull	Silver	Shielded	305	Mounting Hardware Vacuumtight	Male Pins		Brass	Female Sockets	Standard	Panel Mount	IP68 - Dust Tight Waterproof	Bulkhead - Rear Side Nut	5	5
LEMO SJG.2B.314.CLAPV	Chrome	1 Adapter 1 Nut	6.5 A	80 °C	-20 ░C	G	J	Push-Pull	Silver	Shielded	314	Mounting Hardware Vacuumtight	Male Pins	314	Brass	Female Sockets	Standard	Panel Mount	IP68 - Dust Tight Waterproof	Bulkhead - Rear Side Nut		14	14

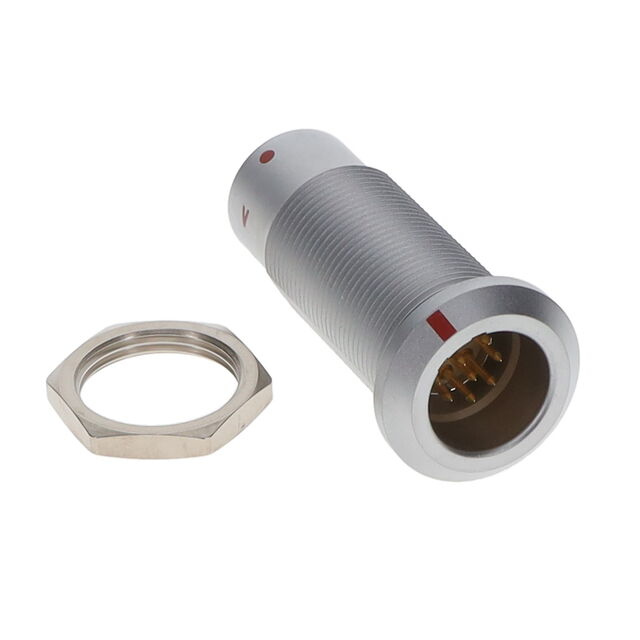

LEMO SJG.2B.310.CLAPV	Chrome	1 Adapter 1 Nut	8 A	80 °C	-20 ░C	G	J	Push-Pull	Silver	Shielded		Mounting Hardware Vacuumtight	Male Pins		Brass	Female Sockets	Standard	Panel Mount	IP68 - Dust Tight Waterproof	Bulkhead - Rear Side Nut	10	10		310	310
LEMO SJG.2B.308.CLAPV	Chrome	1 Adapter 1 Nut	10 A	80 °C	-20 ░C	G	J	Push-Pull	Silver	Shielded	308	Mounting Hardware Vacuumtight	Male Pins	308	Brass	Female Sockets	Standard	Panel Mount	IP68 - Dust Tight Waterproof	Bulkhead - Rear Side Nut	8	8

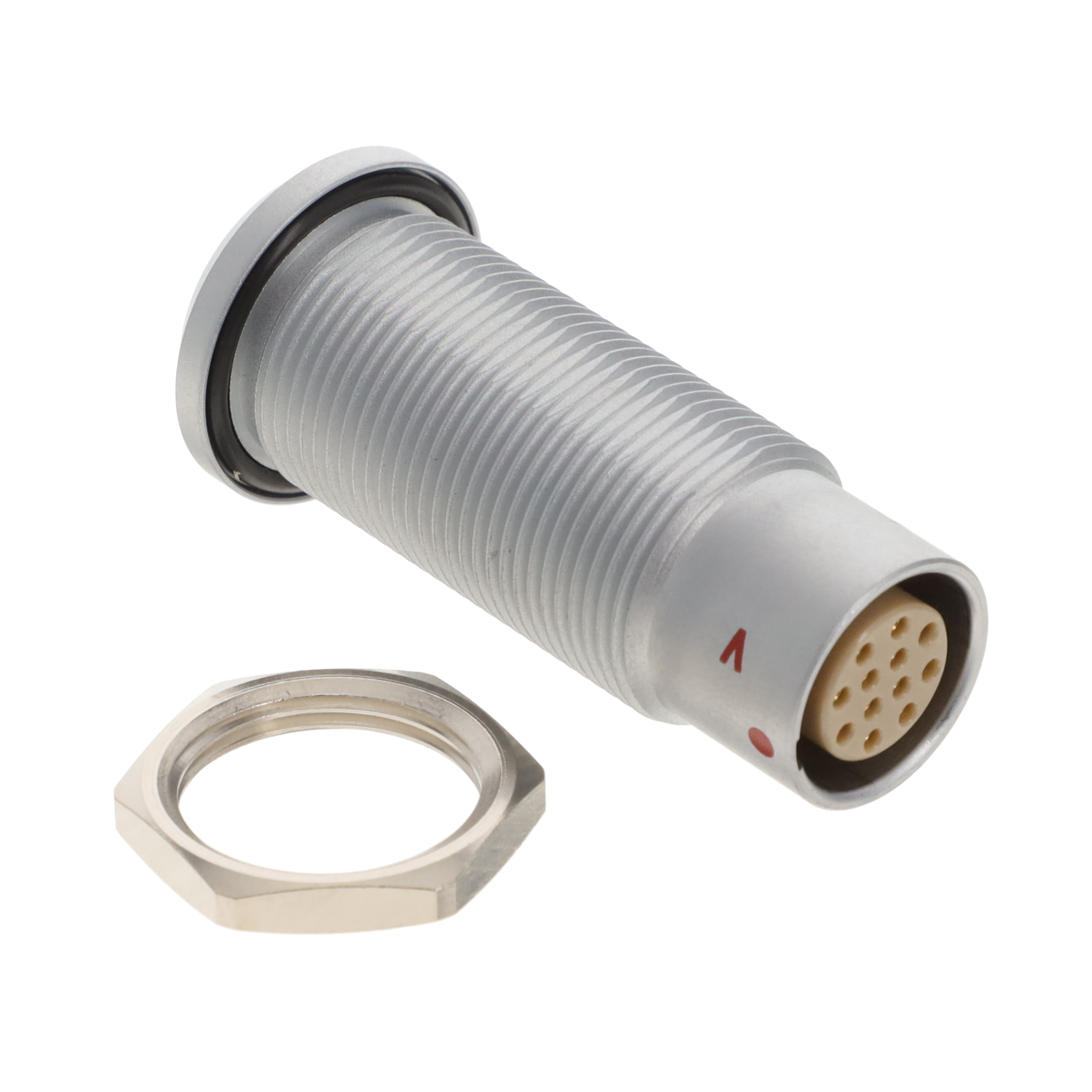

LEMO SJG.2B.312.CLAPV	Chrome	1 Adapter 1 Nut	7 A	80 °C	-20 ░C	G	J	Push-Pull	Silver	Shielded	312	Mounting Hardware Vacuumtight	Male Pins		Brass	Female Sockets	Standard	Panel Mount	IP68 - Dust Tight Waterproof	Bulkhead - Rear Side Nut	12	12			312
