EZG.00.302 Series
Manufacturer: LEMO
Beta
⌘K

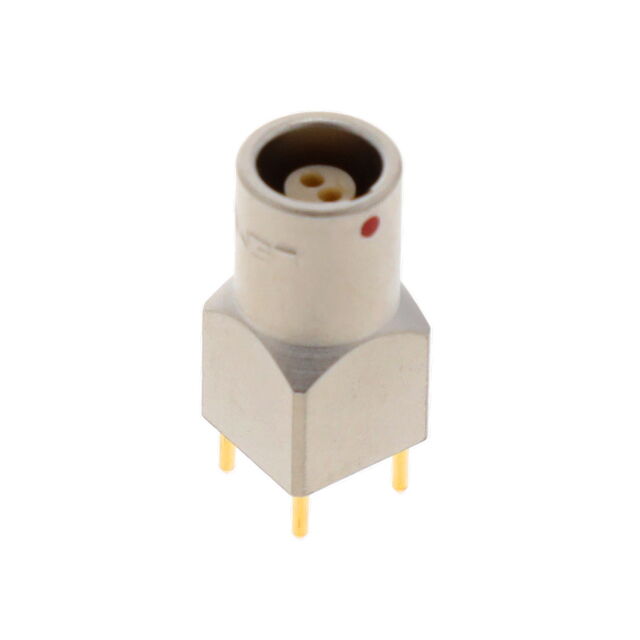

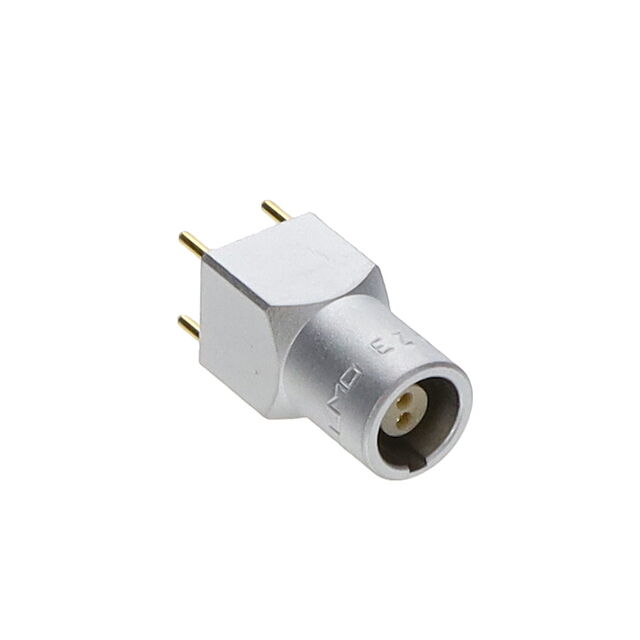

CONN RCPT FMALE 2POS GOLD SOLDER
| Part | Ingress Protection | Shell Size - Insert | Features | Shell Material | Current Rating (Amps) | Contact Material | Termination | Fastening Type | Shell Finish | Orientation [custom] | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Mounting Type | Contact Finish - Mating | Insert Material | Material Flammability Rating | Color | Shielding | Connector Type | Operating Temperature [Min] | Operating Temperature [Max] | Primary Material | Number of Positions |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 LEMO | IP50 - Dust Protected | 302 | Board Guide | Brass | 5 A | Bronze | Solder | Push-Pull | Nickel | G | 1.5 Ám | 59 Áin | Through Hole | Gold | Polyetheretherketone (PEEK) | UL94 V-0 | Silver | Shielded | Receptacle Female Sockets | -55 C | 250 °C | Metal | 2 |
 LEMO | IP50 - Dust Protected | 302 | Board Guide | Brass | 5 A | Bronze | Solder | Push-Pull | Chrome | G | 1.5 Ám | 59 Áin | Through Hole | Gold | Polyetheretherketone (PEEK) | UL94 V-0 | Silver | Shielded | Receptacle Female Sockets | -55 C | 250 °C | Metal | 2 |
