M80-571 Series

Catalog

3+3 POS. MALE DIL 24-28AWG CABLE CONN. KIT, NO JACKSCREWS ROHS COMPLIANT: YES

Part	Contact Finish Thickness	Contact Finish Thickness	Number of Rows [custom]	Contact Type	Pitch [x]	Pitch [x]	Number of Positions	Cable Termination	Mounting Type	Wire Type	Connector Type	Row Spacing	Row Spacing	Contact Finish	Color	Wire Gauge [Min]	Wire Gauge [Max]	Features
Harwin Inc. M80-5710605	0.25 Ám	10 Áin	2	Male Pin	0.079 in	2 mm	6	Crimp	Free Hanging (In-Line)	Discrete	Header	2 mm	0.079 in	Gold	Black	24 AWG	28 AWG
Harwin Inc. M80-5711205	0.25 Ám	10 Áin	2	Male Pin	0.079 in	2 mm	12	Crimp	Free Hanging (In-Line)	Discrete	Header	2 mm	0.079 in	Gold	Black	24 AWG	28 AWG

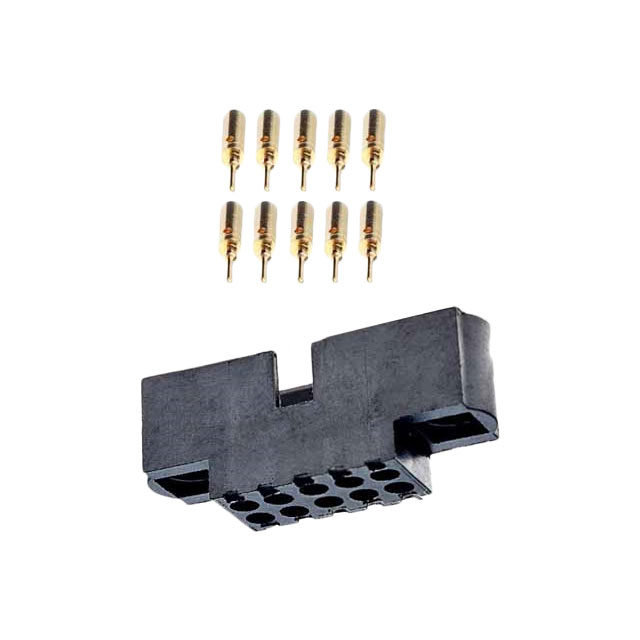

Harwin Inc. M80-5711005	0.25 Ám	10 Áin	2	Male Pin	0.079 in	2 mm	10	Crimp	Free Hanging (In-Line)	Discrete	Header	2 mm	0.079 in	Gold	Black	24 AWG	28 AWG
Harwin Inc. M80-5710805	0.25 Ám	10 Áin	2	Male Pin	0.079 in	2 mm	8	Crimp	Free Hanging (In-Line)	Discrete	Header	2 mm	0.079 in	Gold	Black	24 AWG	28 AWG	Jackscrews Polarizing Key
