CCLB-1-3047 Series

Catalog

PMI DIA .319" (8.1MM) GREEN 24V

Part	Voltage	Millicandela Rating	Panel Cutout Shape	Wavelength - Peak	Type	Lens Color	Panel Cutout Dimensions	Panel Cutout Dimensions	Lens Style	Ratings	Lamp Color	Termination Style	Current	Ingress Protection	Viewing Angle
Visual Communications Company - VCC CCLB-1-3047-9910-I	3.2 V 24 V	5490 mcd	Round	520 nm	LED	Green	0.32 "	8.1 mm	Round with Domed Top	DC	Green	Wire Leads - 6.000" (152.40mm)	20 mA	IP67	20 °
Visual Communications Company - VCC CCLB-1-3047-9912-I	3.2 V 48 V	5490 mcd	Round	520 nm	LED	Green	0.32 "	8.1 mm	Round with Domed Top	DC	Green	Wire Leads - 6.000" (152.40mm)	20 mA	IP67	20 °

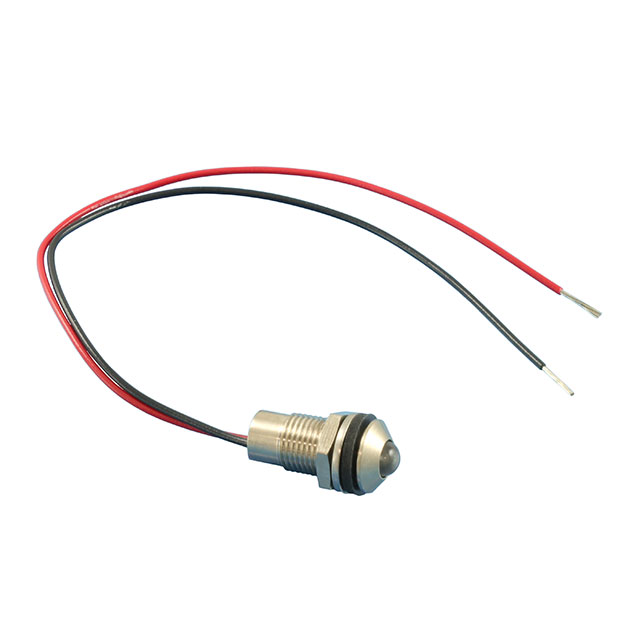

Visual Communications Company - VCC CCLB-1-3047-9908-I	12 V	5490 mcd	Round	520 nm	LED		0.32 "	8.1 mm	Round with Domed Top	DC	Green		20 mA	IP67	20 °

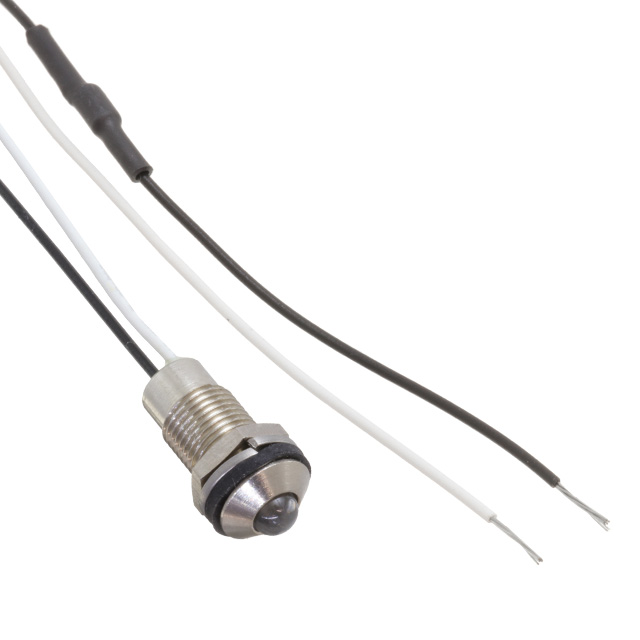

Visual Communications Company - VCC CCLB-1-3047-9920-I	120 V	5490 mcd	Round	520 nm	LED		0.32 "	8.1 mm	Round with Domed Top	AC	Green		20 mA	IP67	20 °

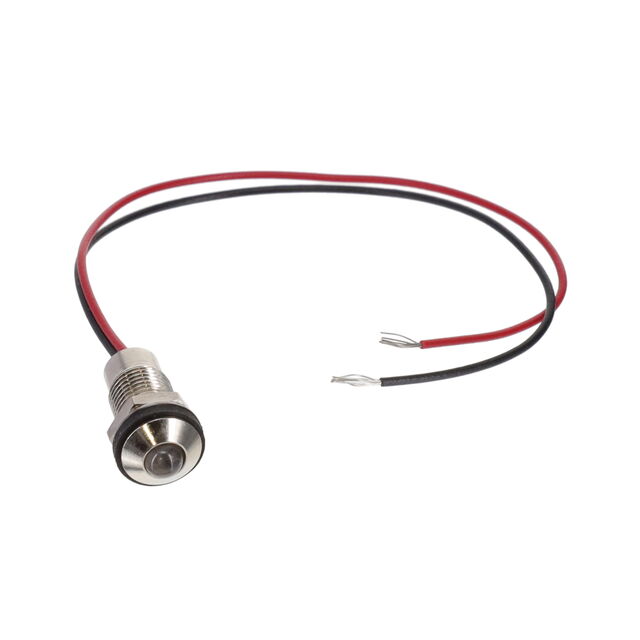

Visual Communications Company - VCC CCLB-1-3047-9923-I	28 V	5490 mcd	Round	520 nm	LED		0.32 "	8.1 mm	Round with Domed Top	DC	Green		20 mA	IP67	20 °
Visual Communications Company - VCC CCLB-1-3047-0000-I	3.2 V	5490 mcd	Round	520 nm	LED	Green	0.32 "	8.1 mm	Round with Domed Top		Green	Wire Leads - 6.000" (152.40mm)	20 mA	IP67	20 °
Visual Communications Company - VCC CCLB-1-3047-9907-I	3.2 V 5 V	5490 mcd	Round	520 nm	LED	Green	0.32 "	8.1 mm	Round with Domed Top	DC	Green	Wire Leads - 6.000" (152.40mm)	20 mA	IP67	20 °
