SLLP23 Series

Catalog

LIGHT CURTAIN FINGER/HAND 23MM

Part	Protective Height [z]	Operating Range [Min]	Operating Range [Max]	Protection	Operating Temperature [Max]	Operating Temperature [Min]	Ingress Protection	Voltage - Supply	Detection Capability	Protective Height	Protective Height [custom]

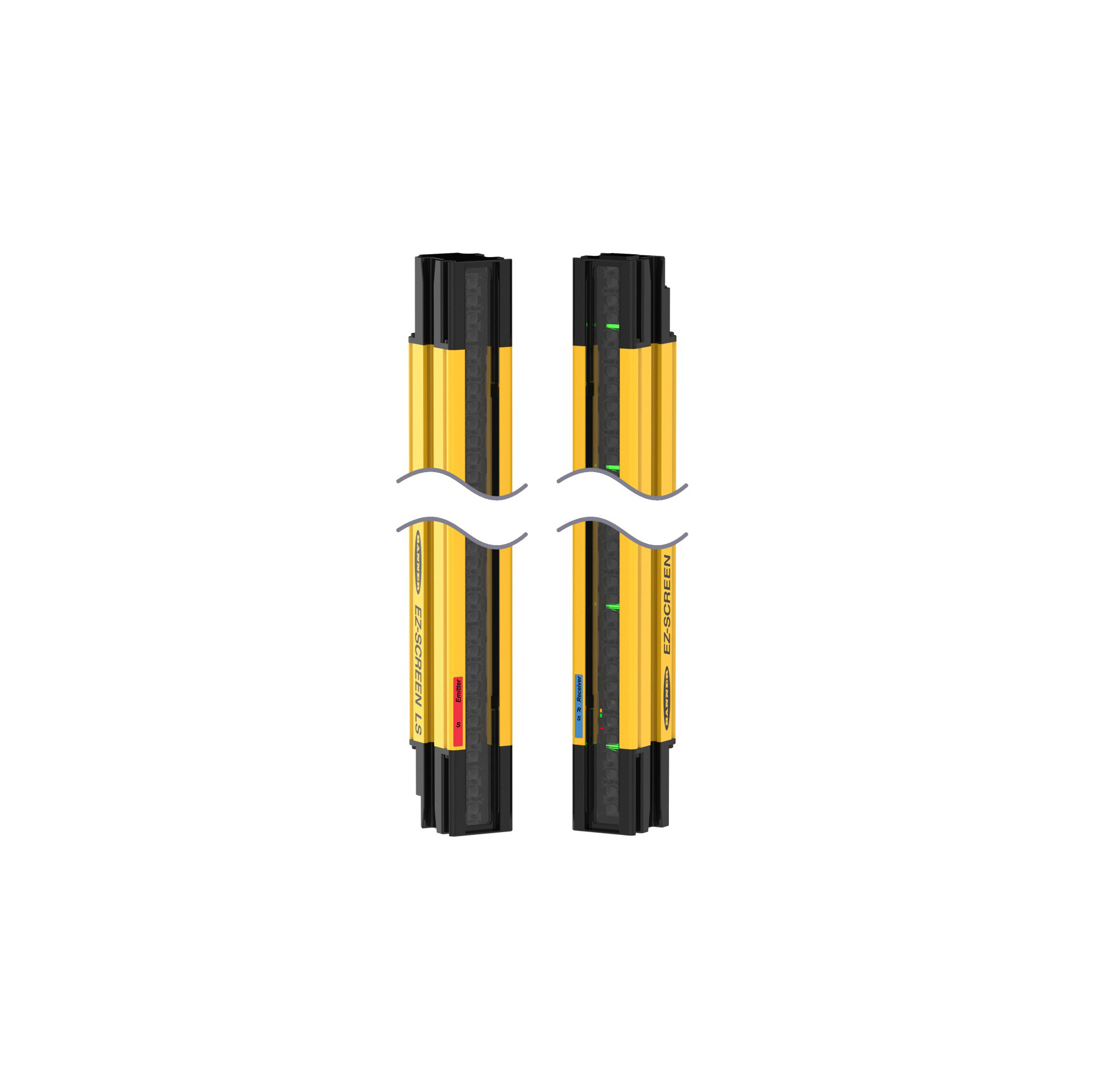

BANNER ENGINEERING SLLP23-1540	1.54 m	0.1 m	12 m	Finger/Hand	55 °C	-20 ░C	IP65 IP67	24 V	23 mm
BANNER ENGINEERING SLLP23-910P88	910 mm	0.1 m	12 m	Hand	55 °C	-20 ░C	IP65 IP67	24 V	23 mm
BANNER ENGINEERING SLLP23-1610P88	1610 mm	0.1 m	12 m	Hand	55 °C	-20 ░C	IP65 IP67	24 V	23 mm
BANNER ENGINEERING SLLP23-280P88		0.1 m	12 m	Hand	55 °C	-20 ░C	IP65 IP67	24 V	23 mm	280 mm
BANNER ENGINEERING SLLP23-840P88		0.1 m	12 m	Hand	55 °C	-20 ░C	IP65 IP67	24 V	23 mm		840 mm

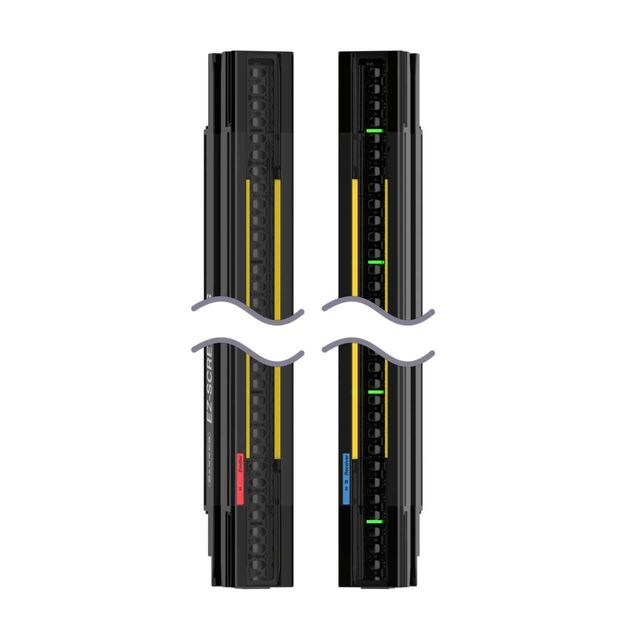

BANNER ENGINEERING SLLP23-350P88	350 mm	0.1 m	12 m	Hand	55 °C	-20 ░C	IP65 IP67	24 V	23 mm
BANNER ENGINEERING SLLP23-770P88	770 mm	0.1 m	12 m	Hand	55 °C	-20 ░C	IP65 IP67	24 V	23 mm
BANNER ENGINEERING SLLP23-1470P88	1470 mm	0.1 m	12 m	Hand	55 °C	-20 ░C	IP65 IP67	24 V	23 mm
BANNER ENGINEERING SLLP23-630P88	630 mm	0.1 m	12 m	Hand	55 °C	-20 ░C	IP65 IP67	24 V	23 mm
BANNER ENGINEERING SLLP23-1190P88	1190 mm	0.1 m	12 m	Hand	55 °C	-20 ░C	IP65 IP67	24 V	23 mm
