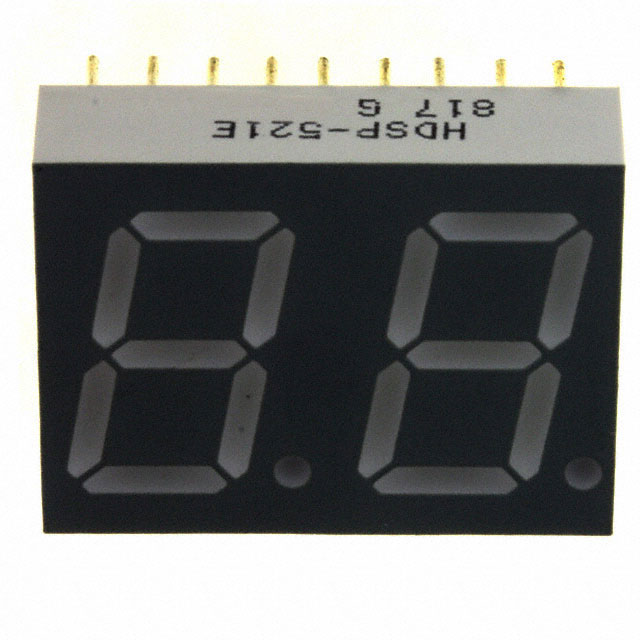

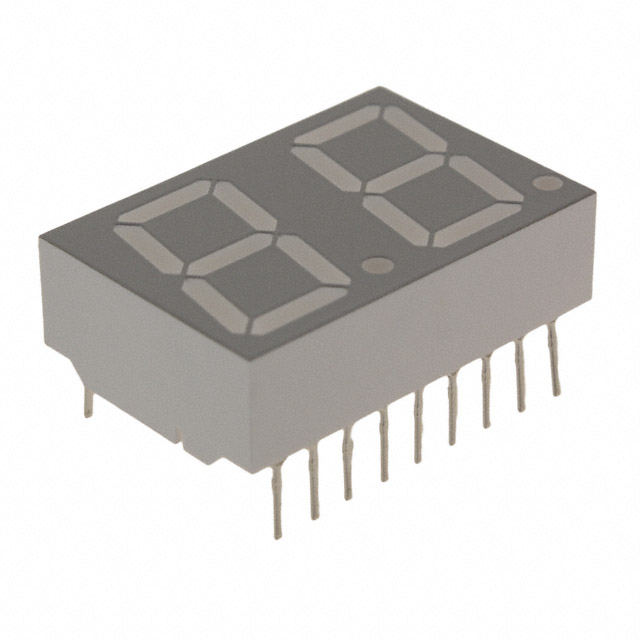

HDSP-521 Series
Manufacturer: Broadcom Limited
Beta
⌘K
DISPLAY 7SEG 0.56" DBL GRN 18DIP
| Part | Voltage - Forward (Vf) (Typ) | Package / Case | Package / Case | Package / Case | Color | Number of Characters | Wavelength - Peak | Power Dissipation (Max) [Max] | Millicandela Rating | Display Type | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [z] | Digit/Alpha Size | Digit/Alpha Size | Common Pin | Current - Test | Wavelength - Peak [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Broadcom Limited | 2 V | 15.24 mm | 0.6 in | 18-DIP | Green | 2 | 568 nm | 105 mW | 3.5 mcd | 7-Segment | 0.732 " | 0.984 in | 18.6 mm | 25 mm | 0.315 " | 8 mm | 0.56 in | 14.22 mm | Common Anode | 10 mA | |
 Broadcom Limited | 1.85 V | 15.24 mm | 0.6 in | 18-DIP | Red | 2 | 660 nm | 30 mW | 6.5 mcd | 7-Segment | 0.732 " | 0.984 in | 18.6 mm | 25 mm | 0.315 " | 8 mm | 0.56 in | 14.22 mm | Common Anode | 20 mA | |
 Broadcom Limited | 2.05 V | 15.24 mm | 0.6 in | 18-DIP | Red | 2 | 62.5 mW | 4 mcd | 7-Segment | 0.732 " | 0.984 in | 18.6 mm | 25 mm | 0.315 " | 8 mm | 0.56 in | 14.22 mm | Common Anode | 20 mA | 640 nm | |
Broadcom Limited |
