R14160 Series
Manufacturer: Radiall USA, Inc.
Beta
⌘K

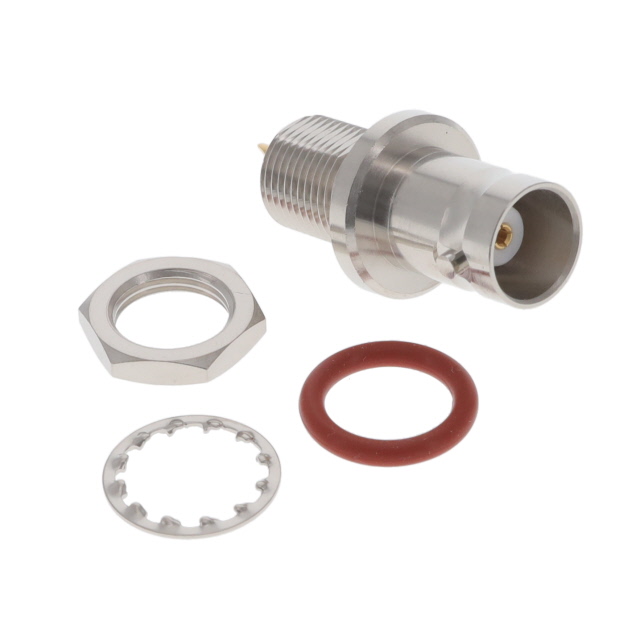

BNC / BULKHEAD JACK RECEPTACLE F
| Part | Mating Cycles | Voltage Rating | Dielectric Material | Body Finish | Body Material | Center Contact Plating | Operating Temperature [Min] | Operating Temperature [Max] | Number of Ports | Connector Style | Frequency - Max [Max] | Connector Type | Housing Color | Contact Termination | Shield Termination | Mounting Type | Impedance | Features | Fastening Type | Center Contact Material | Mounting Feature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Radiall USA, Inc. | 500 | 500 V | Polytetrafluoroethylene (PTFE) | Nickel | Brass | Gold | -65 ░C | 165 °C | 1 | BNC | 4 GHz | Female Socket Jack | Silver | Solder Cup | Solder | Panel Mount | 50 Ohms | Extended Insulation | Bayonet Lock | Beryllium Copper | Bulkhead - Rear Side Nut |
 Radiall USA, Inc. | 500 | 500 V | Polystyrene (PS) | Nickel | Brass | Gold | -65 ░C | 165 °C | 1 | BNC | 4 GHz | Female Socket Jack | Silver | Solder Cup | Solder | Panel Mount | 50 Ohms | Bayonet Lock | Beryllium Copper | Bulkhead - Rear Side Nut |
