0329-0 Series

Manufacturer: Mill-Max Manufacturing Corp.

Catalog

CONN PIN RCPT

Part	Features	Operating Temperature [Min]	Operating Temperature [Max]	Termination	Tail Type	Contact Material	Length - Overall [x]	Length - Overall [x]	Accepts Pin Diameter [Max]	Accepts Pin Diameter [Min]	Accepts Pin Diameter [Max]	Accepts Pin Diameter [Min]	Contact Finish Thickness	Contact Finish Thickness	Flange Diameter [diameter]	Flange Diameter [diameter]	Socket Depth [z]	Socket Depth [z]	Mounting Hole Diameter [diameter]	Mounting Hole Diameter [diameter]	Contact Finish	Pin Hole Diameter [diameter]	Pin Hole Diameter [diameter]
Mill-Max Manufacturing Corp. 0329-0-15-15-34-14-10-0	Knockout Bottom	-55 C	125 °C	Solder	No Tail	Beryllium Copper	5.61 mm	0.221 in	1.17 mm	0.81 mm	0.046 "	0.032 "	0.25 Ám	10 Áin	0.09 in	2.29 mm	5.61 mm	0.221 in	0.075 "	1.91 mm	Gold	1.63 mm	0.064 in
Mill-Max Manufacturing Corp. 0329-0-15-80-34-14-10-0	Knockout Bottom	-55 C	125 °C	Solder	No Tail	Beryllium Copper	5.61 mm	0.221 in	1.17 mm	0.81 mm	0.046 "	0.032 "	0.25 Ám	10 Áin	0.09 in	2.29 mm	5.61 mm	0.221 in	0.075 "	1.91 mm	Gold	1.63 mm	0.064 in
Mill-Max Manufacturing Corp. 0329-0-15-80-34-27-10-0	Knockout Bottom	-55 C	125 °C	Solder	No Tail	Beryllium Copper	5.61 mm	0.221 in	1.17 mm	0.81 mm	0.046 "	0.032 "	0.76 Ám	30 Áin	0.09 in	2.29 mm	5.61 mm	0.221 in	0.075 "	1.91 mm	Gold	1.63 mm	0.064 in

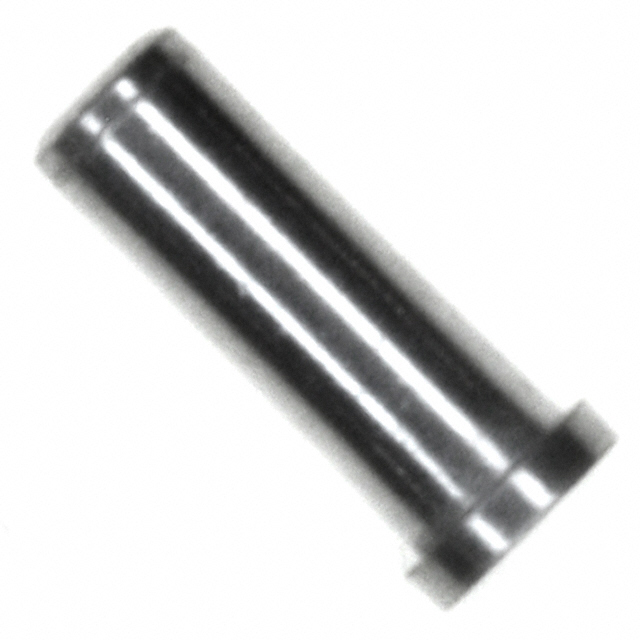

Mill-Max Manufacturing Corp. 0329-0-15-01-34-27-10-0	Knockout Bottom	-55 C	125 °C	Solder	No Tail	Beryllium Copper	5.61 mm	0.221 in	1.17 mm	0.81 mm	0.046 "	0.032 "	0.76 Ám	30 Áin	0.09 in	2.29 mm	5.61 mm	0.221 in	0.075 "	1.91 mm	Gold	1.63 mm	0.064 in

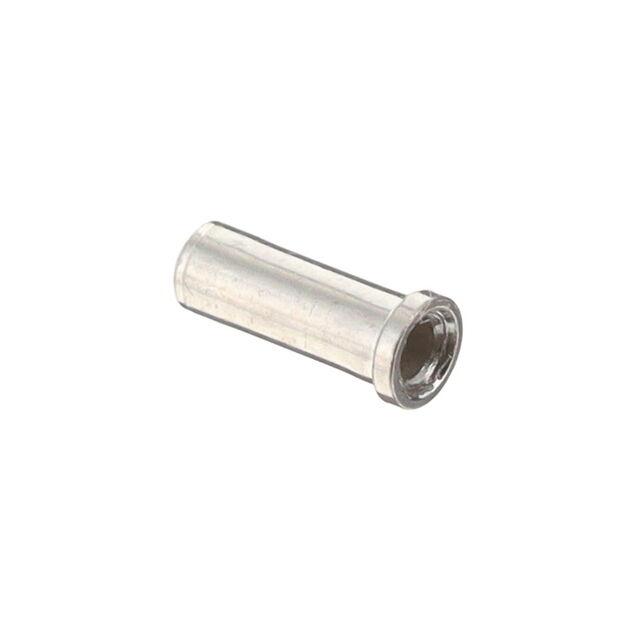

Mill-Max Manufacturing Corp. 0329-0-15-01-34-01-10-0	Knockout Bottom	-55 C	125 °C	Solder	No Tail	Beryllium Copper	5.61 mm	0.221 in	1.17 mm	0.81 mm	0.046 "	0.032 "	5.08 Ám	200 Áin	0.09 in	2.29 mm	5.61 mm	0.221 in	0.075 "	1.91 mm	Tin-Lead	1.63 mm	0.064 in

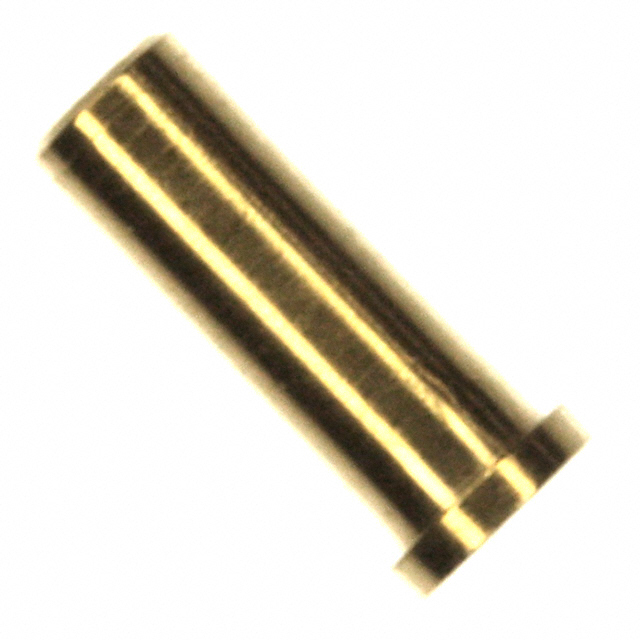

Mill-Max Manufacturing Corp. 0329-0-15-15-34-27-10-0	Knockout Bottom	-55 C	125 °C	Solder	No Tail	Beryllium Copper	5.61 mm	0.221 in	1.17 mm	0.81 mm	0.046 "	0.032 "	0.76 Ám	30 Áin	0.09 in	2.29 mm	5.61 mm	0.221 in	0.075 "	1.91 mm	Gold	1.63 mm	0.064 in
Mill-Max Manufacturing Corp. 0329-0-15-01-34-14-10-0	Knockout Bottom	-55 C	125 °C	Solder	No Tail	Beryllium Copper	5.61 mm	0.221 in	1.17 mm	0.81 mm	0.046 "	0.032 "	0.25 Ám	10 Áin	0.09 in	2.29 mm	5.61 mm	0.221 in	0.075 "	1.91 mm	Gold	1.63 mm	0.064 in
Mill-Max Manufacturing Corp. 0329-0-15-80-34-80-10-0	Knockout Bottom	-55 C	125 °C	Solder	No Tail	Beryllium Copper	5.61 mm	0.221 in	1.17 mm	0.81 mm	0.046 "	0.032 "	5.08 Ám	200 Áin	0.09 in	2.29 mm	5.61 mm	0.221 in	0.075 "	1.91 mm	Tin	1.63 mm	0.064 in
