9031-1023 Series
Manufacturer: Radiall USA, Inc.
Beta
⌘K

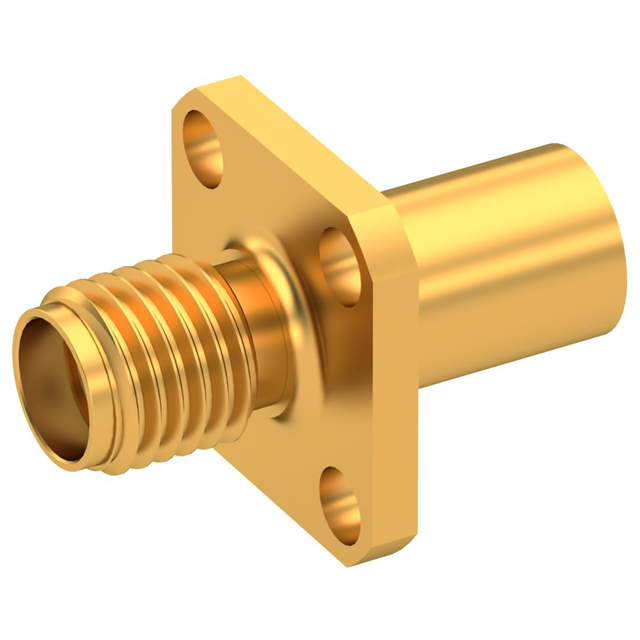

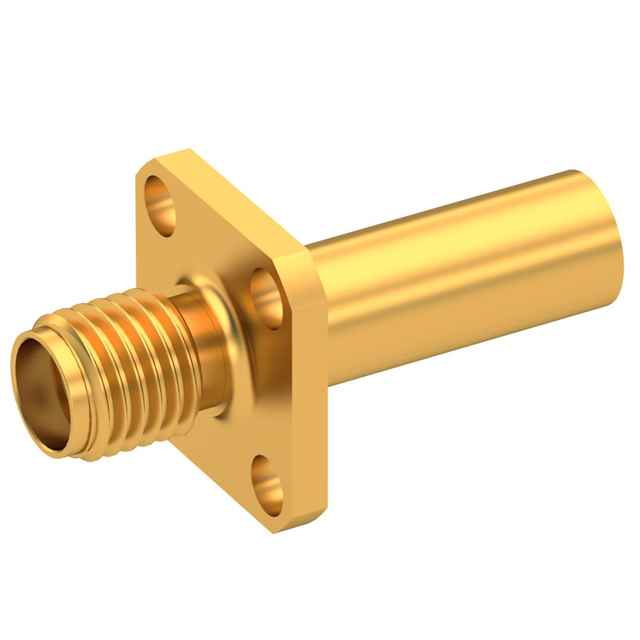

SMA / STRAIGHT JACK FEMALE CRIMP
| Part | Dielectric Material | Center Contact Plating | Body Material | Operating Temperature [Min] | Operating Temperature [Max] | Mating Cycles | Voltage Rating | Body Finish | Fastening Type | Frequency - Max [Max] | Number of Ports | Mounting Type | Shield Termination | Mounting Feature | Impedance | Center Contact Material | Cable Group | Housing Color | Connector Style | Connector Type | Contact Termination | Cable Group |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Radiall USA, Inc. | Polytetrafluoroethylene (PTFE) | Gold | Stainless Steel | -65 ░C | 165 °C | 500 | 335 V | Gold | Threaded | 12.4 GHz | 1 | Panel Mount | Crimp | Flange | 50 Ohms | Beryllium Copper | 142 223 RG-55 | Gold | SMA | Female Socket Jack | Crimp | |
 Radiall USA, Inc. | Polytetrafluoroethylene (PTFE) | Gold | Stainless Steel | -65 ░C | 165 °C | 500 | Gold | Threaded | 12.4 GHz | 1 | Panel Mount | Crimp | Flange | 50 Ohms | Beryllium Copper | RG-178 | Gold | SMA | Female Socket Jack | Crimp | 196 | |
 Radiall USA, Inc. | Polytetrafluoroethylene (PTFE) | Gold | Stainless Steel | -65 ░C | 165 °C | 500 | 250 V | Gold | Threaded | 12.4 GHz | 1 | Panel Mount | Crimp | Flange | 50 Ohms | Beryllium Copper | 188 316 RG-174 | Gold | SMA | Female Socket Jack | Crimp |
