09307240 Series
Manufacturer: HARTING
Beta
⌘K

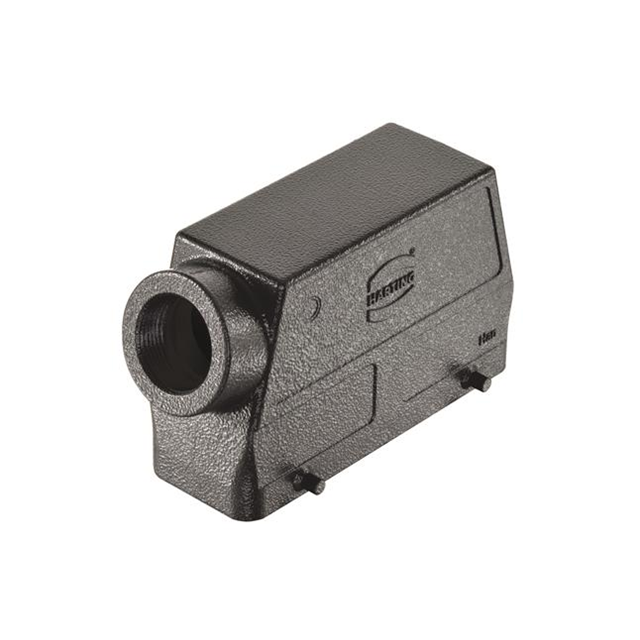

24B HOOD SIDE ENTRY, DOUBLE LEVER, HIGH CONSTRUCTION, PG21 - BLACK
| Part | Style | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Lock Location | Housing Material | Size | Operating Temperature [Max] | Operating Temperature [Min] | Ingress Protection | Housing Color | Housing Finish | Thread Size | Connector Type | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 HARTING | Side Entry | 43 mm | 76 mm | 2.992 in | 120 mm | 4.724 in | 1.693 " | Locking Clip (2) on Base Bottom | Aluminum Die Cast | 24 B | 125 °C | -40 C | IP65 - Dust Tight Water Resistant | Black | Powder Coated | PG21 | Hood | |

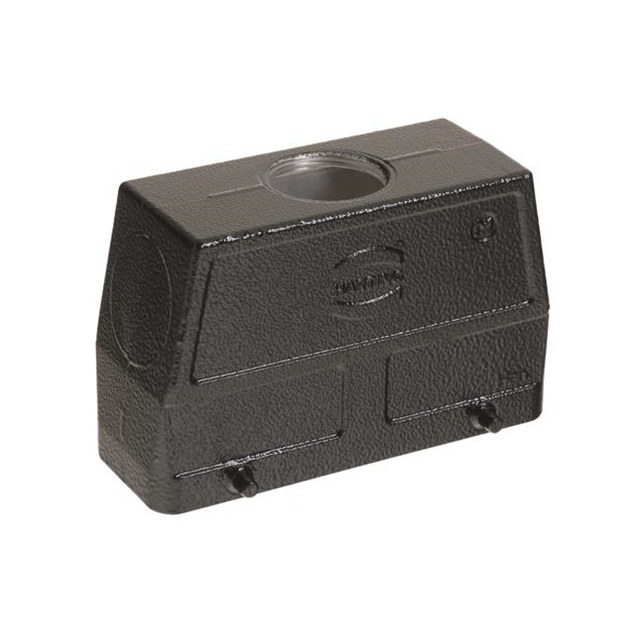

 HARTING | Bottom Entry Top or Bottom Entry | 43 mm | 78.4 mm | 3.087 " | 120 mm | 4.724 in | 1.693 " | Locking Clip (2) on Hood Top | Aluminum Die Cast | 24 B | 125 °C | -40 C | IP65 - Dust Tight Water Resistant | Black | Powder Coated | PG29 | Hood - Coupling | Cable to Cable |
HARTING | Side Entry | 43 mm | 76 mm | 2.992 in | 120 mm | 4.724 in | 1.693 " | Locking Clip (2) on Base Bottom | Aluminum Die Cast | 24 B | 125 °C | -40 C | IP65 - Dust Tight Water Resistant | Black | Powder Coated | PG29 | Hood | |

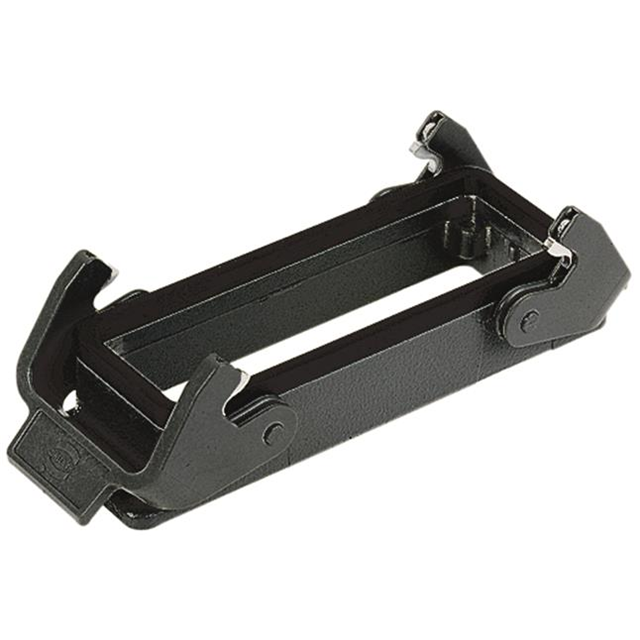

 HARTING | Bottom Entry | 43.4 mm | 28.9 mm | 1.138 " | 140 mm | 5.512 " | 1.709 " | Locking Clip (2) on Base Bottom | Aluminum Die Cast | 24 B | 125 °C | -40 C | IP65 - Dust Tight Water Resistant | Black | Powder Coated | Base - Panel Mount | ||
 HARTING |
