076825 Series

Manufacturer: Molex

Catalog

CONN WIRE TO BOARD HDR 4POWER POS 5.7MM SOLDER RA SIDE ENTRY THRU-HOLE MEGA-FIT TRAY

Part	Insulation Material	Number of Rows	Features	Row Spacing - Mating	Row Spacing - Mating	Pitch - Mating	Pitch - Mating	Number of Positions Loaded	Material Flammability Rating	Mounting Type	Shrouding	Contact Length - Post	Contact Length - Post	Style	Insulation Color	Number of Positions	Fastening Type	Contact Shape	Contact Type	Contact Finish - Post	Insulation Height	Insulation Height	Applications	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Material	Connector Type	Termination	Voltage Rating	Current Rating (Amps)	Operating Temperature [Min]	Operating Temperature [Max]

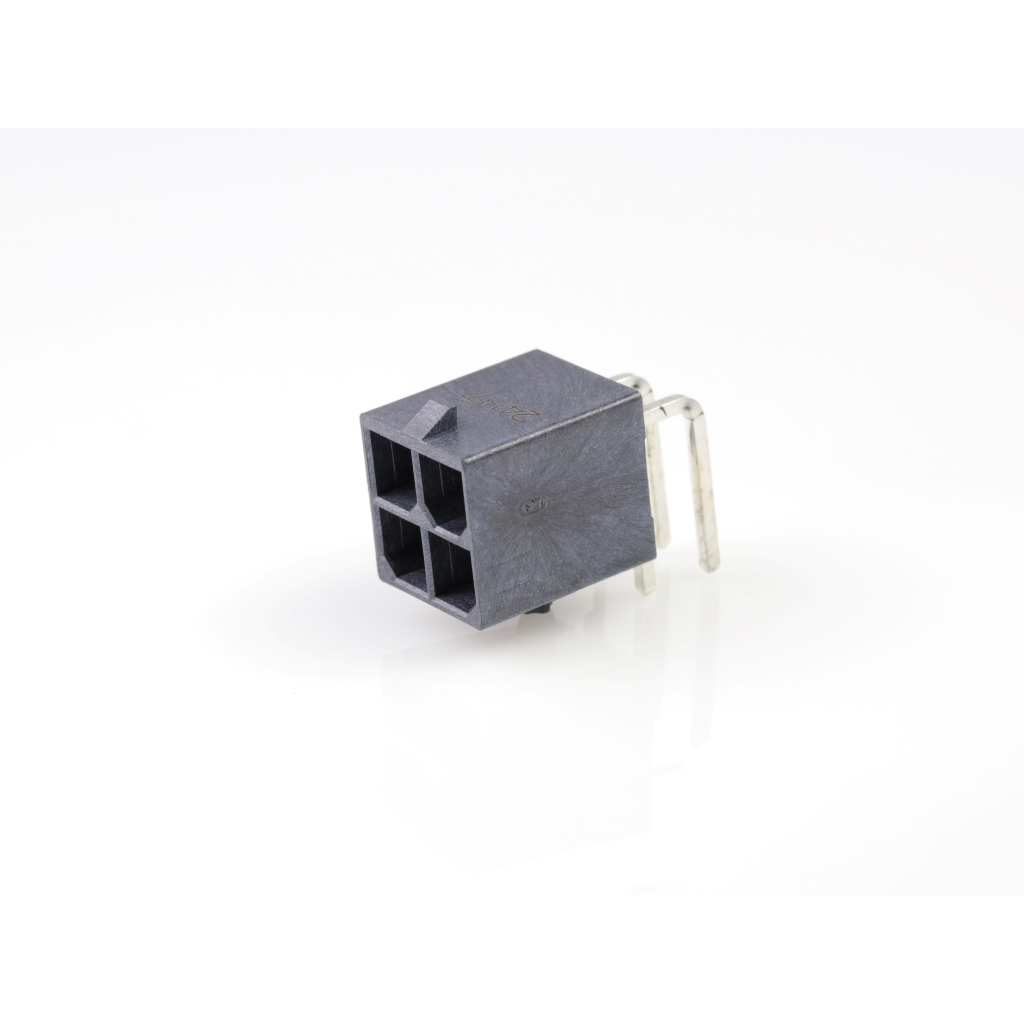

Molex 0768250004	Liquid Crystal Polymer (LCP)	2	Board Guide Glow Wire Compliant	0.224 in	5.7 mm	0.224 in	5.7 mm	All	UL94 V-0	Through Hole Right Angle	Shrouded - 4 Wall	3.6 mm	0.142 in	Board to Cable/Wire	Black	4	Locking Ramp	Square	Male Pin	Tin	14.53 mm	0.572 in	Automotive General Purpose Industrial Telecommunications	60 Áin	1.52 Ám	60 µin	1.52 µm	Copper	Header	Solder
Molex 0768250912	Liquid Crystal Polymer (LCP)	2	Board Guide	0.224 in	5.7 mm	0.224 in	5.7 mm	All	UL94 V-0	Through Hole Right Angle	Shrouded - 4 Wall			Board to Cable/Wire	Black	12	Locking Ramp	Square	Male Pin	Tin	14.53 mm	0.572 in		60 Áin	1.52 Ám	50 µin	1.27 µm	Copper Alloy	Header	Solder	600 V	Varies by Wire Gauge	-40 °C	105 ░C

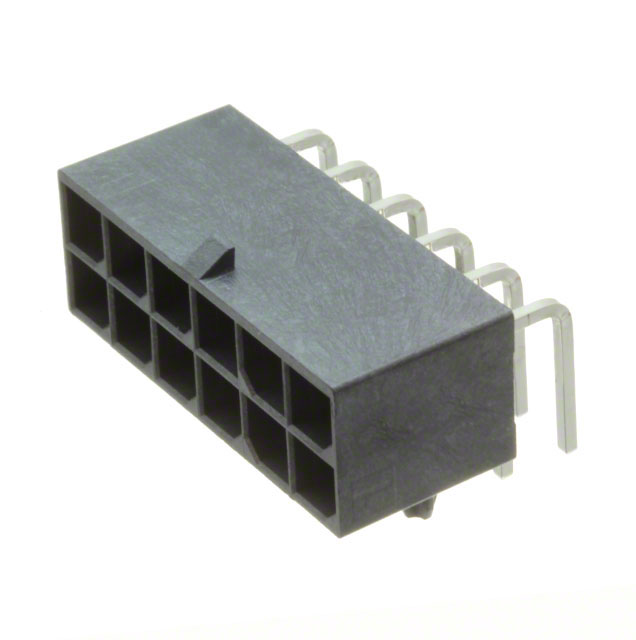

Molex 0768250012	Liquid Crystal Polymer (LCP)	2	Board Guide Glow Wire Compliant	0.224 in	5.7 mm	0.224 in	5.7 mm	All	UL94 V-0	Through Hole Right Angle	Shrouded - 4 Wall	3.6 mm	0.142 in	Board to Cable/Wire	Black	12	Locking Ramp	Square	Male Pin	Tin	14.53 mm	0.572 in	Automotive General Purpose Industrial Telecommunications	60 Áin	1.52 Ám	60 µin	1.52 µm	Copper	Header	Solder
