282836 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K
TERM BLK 24P SIDE ENTRY 5MM PCB
| Part | Wire Gauge [Max] | Wire Gauge [Min] | Mating Orientation | Color | Wire Termination | Mounting Type | Number of Levels | Voltage | Contact Material - Plating [custom] | Pitch [x] | Pitch [x] | Screw Thread | Features | Current | Clamp Material - Plating | Screw Material - Plating | Torque - Screw | Torque - Screw | Positions Per Level |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity Raychem Cable Protection | 30 AWG | 16 AWG | Horizontal with Board | Green | Screw - Rising Cage Clamp | Through Hole | 1 | 300 V | Brass - Tin Plated | 5 mm | 0.197 in | M3 | Interlocking (Side) | 13.5 A | Brass - Nickel Plated | Brass - Nickel Plated | 6 Lb-In | 0.68 Nm | |

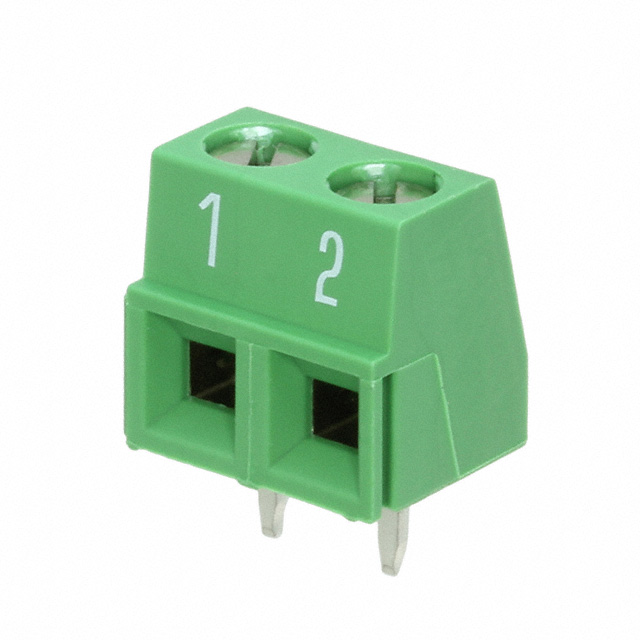

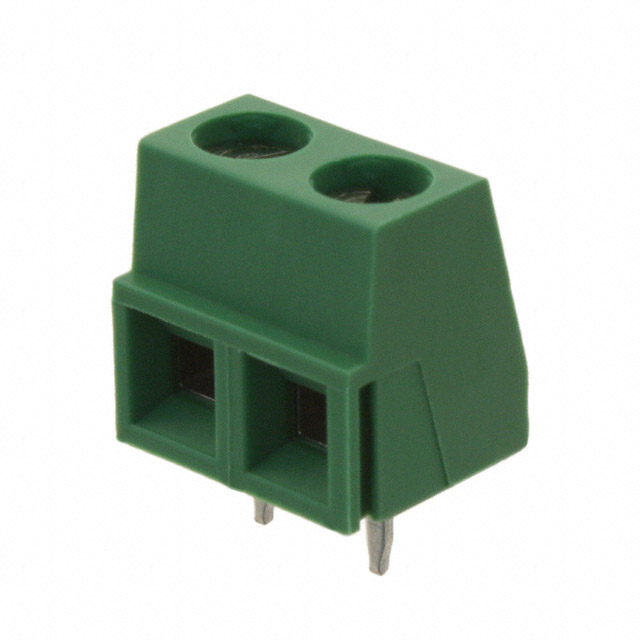

 TE Connectivity Raychem Cable Protection | 30 AWG | 16 AWG | Horizontal with Board | Green | Screw - Rising Cage Clamp | Through Hole | 1 | 300 V | Brass - Tin Plated | 5 mm | 0.197 in | M3 | Interlocking (Side) | 13.5 A | Brass - Nickel Plated | Brass - Nickel Plated | 6 Lb-In | 0.68 Nm | 2 |

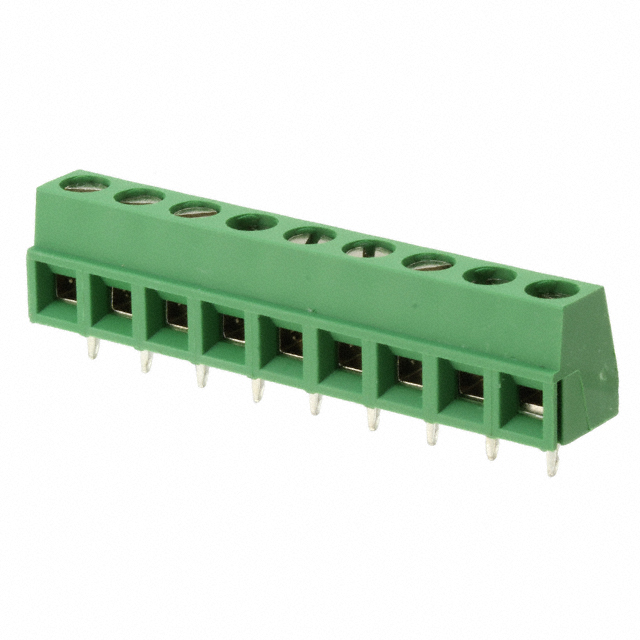

 TE Connectivity Raychem Cable Protection | 30 AWG | 16 AWG | Horizontal with Board | Green | Screw - Rising Cage Clamp | Through Hole | 1 | 300 V | Brass - Tin Plated | 5 mm | 0.197 in | M3 | Interlocking (Side) | 13.5 A | Brass - Nickel Plated | Brass - Nickel Plated | 6 Lb-In | 0.68 Nm | 9 |
 TE Connectivity Raychem Cable Protection | 30 AWG | 16 AWG | Horizontal with Board | Green | Screw - Rising Cage Clamp | Through Hole | 1 | 300 V | Brass - Tin Plated | 5 mm | 0.197 in | M3 | Interlocking (Side) Positions Stamped | 13.5 A | Brass - Nickel Plated | Brass - Nickel Plated | 6 Lb-In | 0.68 Nm | 2 |

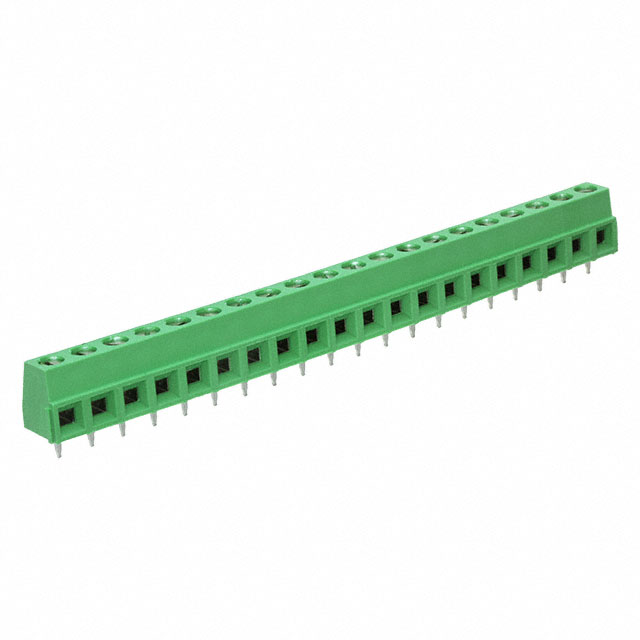

TE Connectivity Raychem Cable Protection | 30 AWG | 16 AWG | Horizontal with Board | Green | Screw - Rising Cage Clamp | Through Hole | 1 | 300 V | Brass - Tin Plated | 5 mm | 0.197 in | M3 | Interlocking (Side) | 13.5 A | Brass - Nickel Plated | Brass - Nickel Plated | 6 Lb-In | 0.68 Nm | 23 |

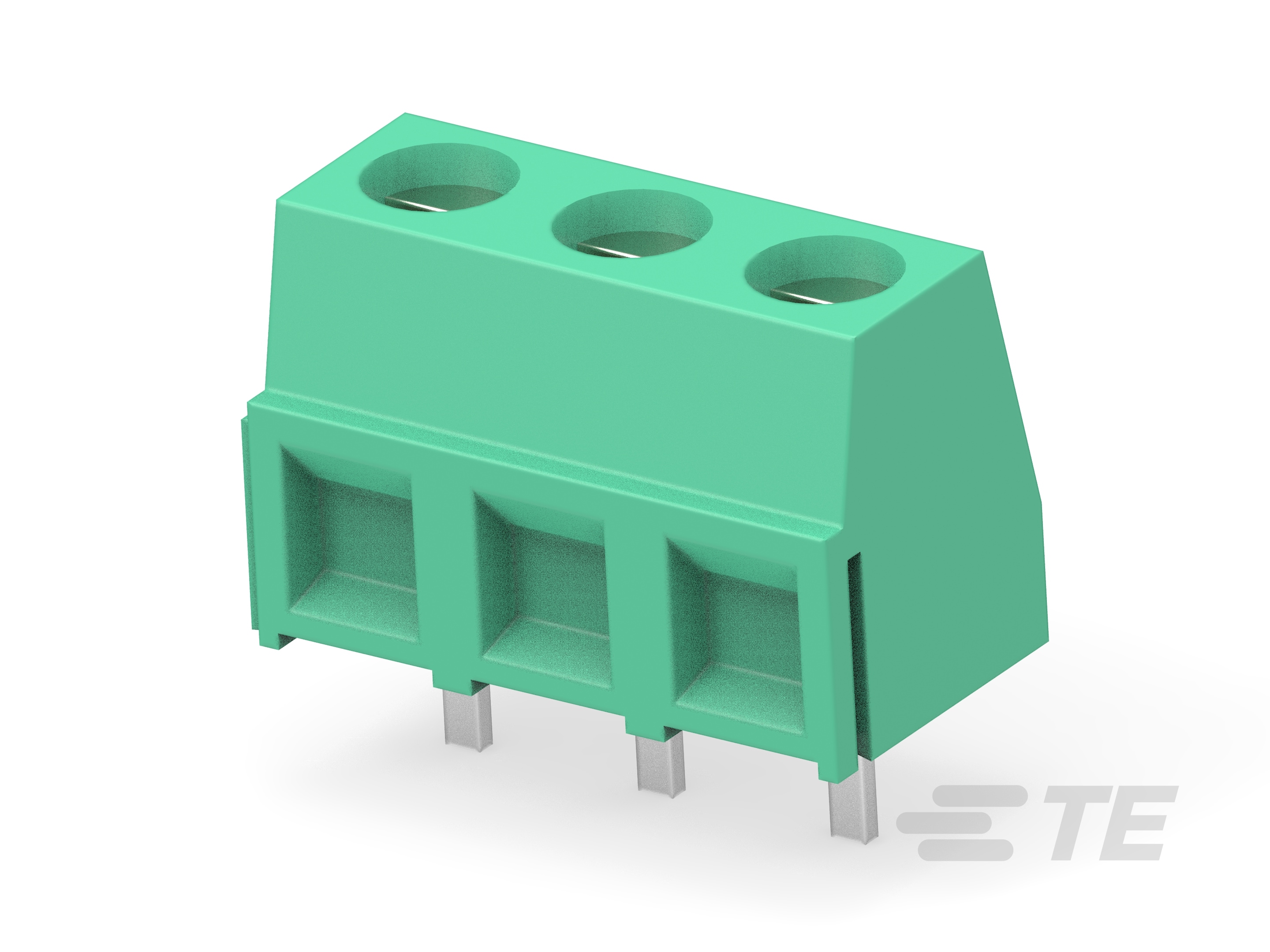

 TE Connectivity Raychem Cable Protection | 30 AWG | 16 AWG | Horizontal with Board | Green | Screw - Rising Cage Clamp | Through Hole | 1 | 300 V | Brass - Tin Plated | 5 mm | 0.197 in | M3 | Interlocking (Side) | 13.5 A | Brass - Nickel Plated | Brass - Nickel Plated | 6 Lb-In | 0.68 Nm | 3 |
 TE Connectivity Raychem Cable Protection | 30 AWG | 16 AWG | Horizontal with Board | Green | Screw - Rising Cage Clamp | Through Hole | 1 | 300 V | Brass - Tin Plated | 5 mm | 0.197 in | M3 | Interlocking (Side) | 13.5 A | Brass - Nickel Plated | Brass - Nickel Plated | 6 Lb-In | 0.68 Nm | 4 |
TE Connectivity Raychem Cable Protection | 30 AWG | 16 AWG | Horizontal with Board | Green | Screw - Rising Cage Clamp | Through Hole | 1 | 300 V | Brass - Tin Plated | 5 mm | 0.197 in | M3 | Interlocking (Side) | 13.5 A | Brass - Nickel Plated | Brass - Nickel Plated | 6 Lb-In | 0.68 Nm | 21 |
 TE Connectivity Raychem Cable Protection | 30 AWG | 16 AWG | Horizontal with Board | Green | Screw - Rising Cage Clamp | Through Hole | 1 | 300 V | Brass - Tin Plated | 5 mm | 0.197 in | M3 | Interlocking (Side) | 13.5 A | Brass - Nickel Plated | Bronze - Nickel Plated | 6 Lb-In | 0.68 Nm | 5 |
 TE Connectivity Raychem Cable Protection | 30 AWG | 16 AWG | Horizontal with Board | Green | Screw - Rising Cage Clamp | Through Hole | 1 | 300 V | Brass - Tin Plated | 5 mm | 0.197 in | M3 | Interlocking (Side) | 13.5 A | Brass - Nickel Plated | Brass - Nickel Plated | 6 Lb-In | 0.68 Nm | 20 |
