11700A2 Series
Manufacturer: Belden Inc.
Beta
⌘K

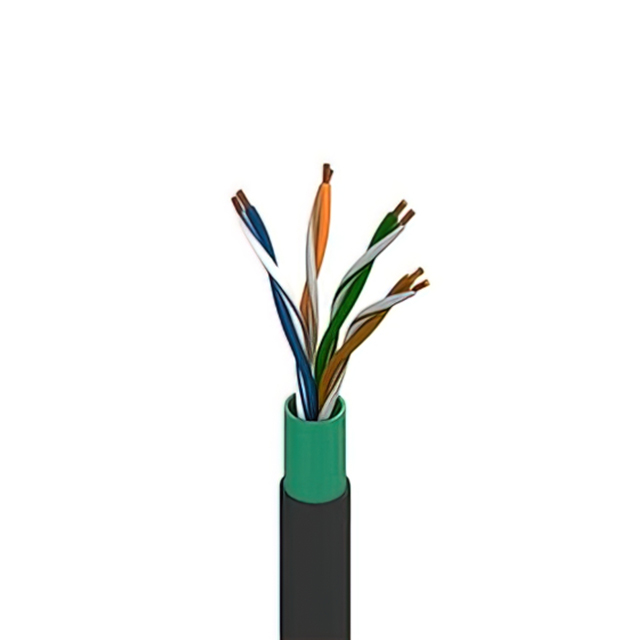

CABLE CAT5E 8CON 24AWG BLU
| Part | Conductor Material | Conductor Strand | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Jacket (Insulation) Material | Cable Type | Wire Gauge | Number of Conductors | Voltage | Conductor Insulation | Conductor Insulation | Usage | Ratings | Jacket Color | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Features | Operating Temperature [Max] | Operating Temperature [Min] | Length | Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | Copper Bare | Solid | 0.035 in | 0.889 mm | Poly-Vinyl Chloride (PVC) | Multi-Pair Cat5e | 24 AWG | 8 | 300 VDC | Polyolefin | PO | Industrial Network | UL Style CMR | Blue | 7.24 mm | 0.285 " | Oil Resistant Rip Cord UV Resistant | 75 ░C | -10 °C | 304.8 m | 1000 ft |
