BD82005FVJ-M Series

1.5A Current Limit High Side Switch ICs

Catalog

1.5A Current Limit High Side Switch ICs

Part	Switch Type	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case	Package / Case [custom]	Package / Case	Output Type	Rds On (Typ)	Supplier Device Package	Input Type	Fault Protection	Voltage - Supply (Vcc/Vdd)	Grade	Current - Output (Max) [Max]	Number of Outputs	Ratio - Input:Output [custom]	Voltage - Load [Max]	Voltage - Load [Min]	Qualification	Output Configuration	Mounting Type	Interface

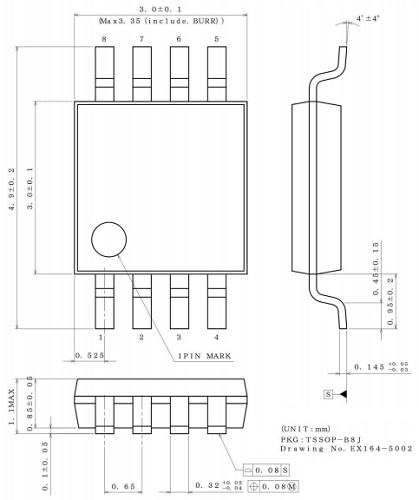

Rohm Semiconductor BD82005FVJ-MGE2	USB Switch	85 °C	-40 °C	8-MSOP 8-TSSOP	0.118 in	3 mm	N-Channel	70 mOhm	8-TSSOP-BJ	Non-Inverting	Current Limiting (Fixed) Over Temperature UVLO		Automotive	2 A	1	1:1	5.5 V	2.7 V	AEC-Q100	High Side	Surface Mount	On/Off

Catalog

1.5A Current Limit High Side Switch ICs

Key Features

• AEC-Q100 Qualified, Built-in Low ON-Resistance (Typ 70mΩ) N-Channel MOSFET, Current Limit Threshold 1.5A, Soft-Start Circuit, Over-Current Protection, Thermal Shutdown, Under-Voltage Lockout Protection, Open-Drain Fault Flag Output, TTL Enable Input

Description

BD82005FVJ-M is the low on-resistance N-Channel MOSFET high-side power switch optimized for Universal Serial Bus (USB) applications. BD82005FVJ-M is equipped with the function of over-current protection, thermal shutdown, under-voltage lockout and soft-start.
