TPS56339 Series

4.5-V to 24-V input, 3-A output synchronous buck converter

Catalog

4.5-V to 24-V input, 3-A output synchronous buck converter

Part	Voltage - Output (Min/Fixed)	Current - Output	Output Configuration	Package / Case	Output Type	Mounting Type	Supplier Device Package	Voltage - Input (Max) [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Input (Min) [Min]	Topology	Voltage - Output (Max)	Frequency - Switching	Function	Synchronous Rectifier	Number of Outputs	Main Purpose	Regulator Topology	Voltage - Output	Outputs and Type	Voltage - Input [Max]	Voltage - Input [Min]	Utilized IC / Part	Contents
Texas Instruments TPS56339DDCT	0.8 V	3 A	Positive	SOT-23-6 Thin TSOT-23-6	Adjustable	Surface Mount	SOT-23-THIN	24 V	-40 °C	125 ¯C	4.5 V	Buck	16 V	500 kHz	Step-Down		1

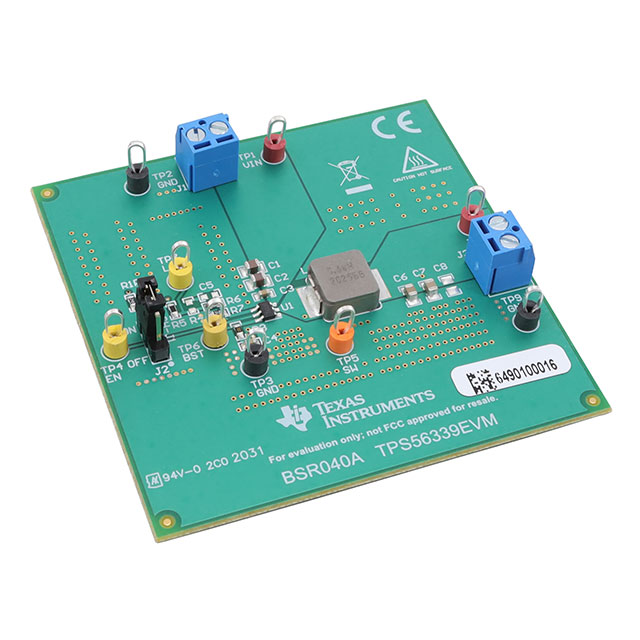

Texas Instruments TPS56339EVM		3 A												500 kHz				DC/DC Step Down	Buck	5 V	1 Non-Isolated Output	24 V	5.5 V	TPS56339	Board(s)

Catalog

4.5-V to 24-V input, 3-A output synchronous buck converter

Key Features

• Input voltage range: 4.5 V to 24 VOutput voltage range: 0.8 V to 16 V3-A maximum continuous output currentFixed 500-kHz switching frequencySupport up to 97% duty cycleIntegrated 70-mΩ and 35-mΩ MOSFETsTypical 3-µA shutdown currentTypical 98-µA quiescent currentInternal 5-ms soft-startInternal loop compensation for ease useCycle-by-cycle current limit for both high-side and low-side MOSFETsNon-latched UVP, UVLO and TSD protectionsSOT-23 (6) packageCreate a custom design using TPS56339 with theWEBENCH®Power DesignerInput voltage range: 4.5 V to 24 VOutput voltage range: 0.8 V to 16 V3-A maximum continuous output currentFixed 500-kHz switching frequencySupport up to 97% duty cycleIntegrated 70-mΩ and 35-mΩ MOSFETsTypical 3-µA shutdown currentTypical 98-µA quiescent currentInternal 5-ms soft-startInternal loop compensation for ease useCycle-by-cycle current limit for both high-side and low-side MOSFETsNon-latched UVP, UVLO and TSD protectionsSOT-23 (6) packageCreate a custom design using TPS56339 with theWEBENCH®Power Designer

Description

The TPS56339 is a 4.5-V to 24-V input voltage range, 3-A synchronous buck converter. The device includes two integrated switching MOSFETs, internal loop compensation and 5-ms internal soft-start to reduce component count. By employing the SOT-23 (6) package, the device achieves the high power density and offers small footprint on PCB. The TPS56339 employs Advanced Emulated Current Mode (AECM) control that can get fast transient response with fixed frequency. The internal adaptive loop adjustment eliminates the need for external compensation over a wide voltage output range. Cycle-by-cycle current limit on the high-side protects the device in current overload conditions and is enhanced by a low-side sourcing current limit which prevents current runaway. Hiccup protection will be triggered under undervoltage and thermal shutdown protections. The TPS56339 is a 4.5-V to 24-V input voltage range, 3-A synchronous buck converter. The device includes two integrated switching MOSFETs, internal loop compensation and 5-ms internal soft-start to reduce component count. By employing the SOT-23 (6) package, the device achieves the high power density and offers small footprint on PCB. The TPS56339 employs Advanced Emulated Current Mode (AECM) control that can get fast transient response with fixed frequency. The internal adaptive loop adjustment eliminates the need for external compensation over a wide voltage output range. Cycle-by-cycle current limit on the high-side protects the device in current overload conditions and is enhanced by a low-side sourcing current limit which prevents current runaway. Hiccup protection will be triggered under undervoltage and thermal shutdown protections.
